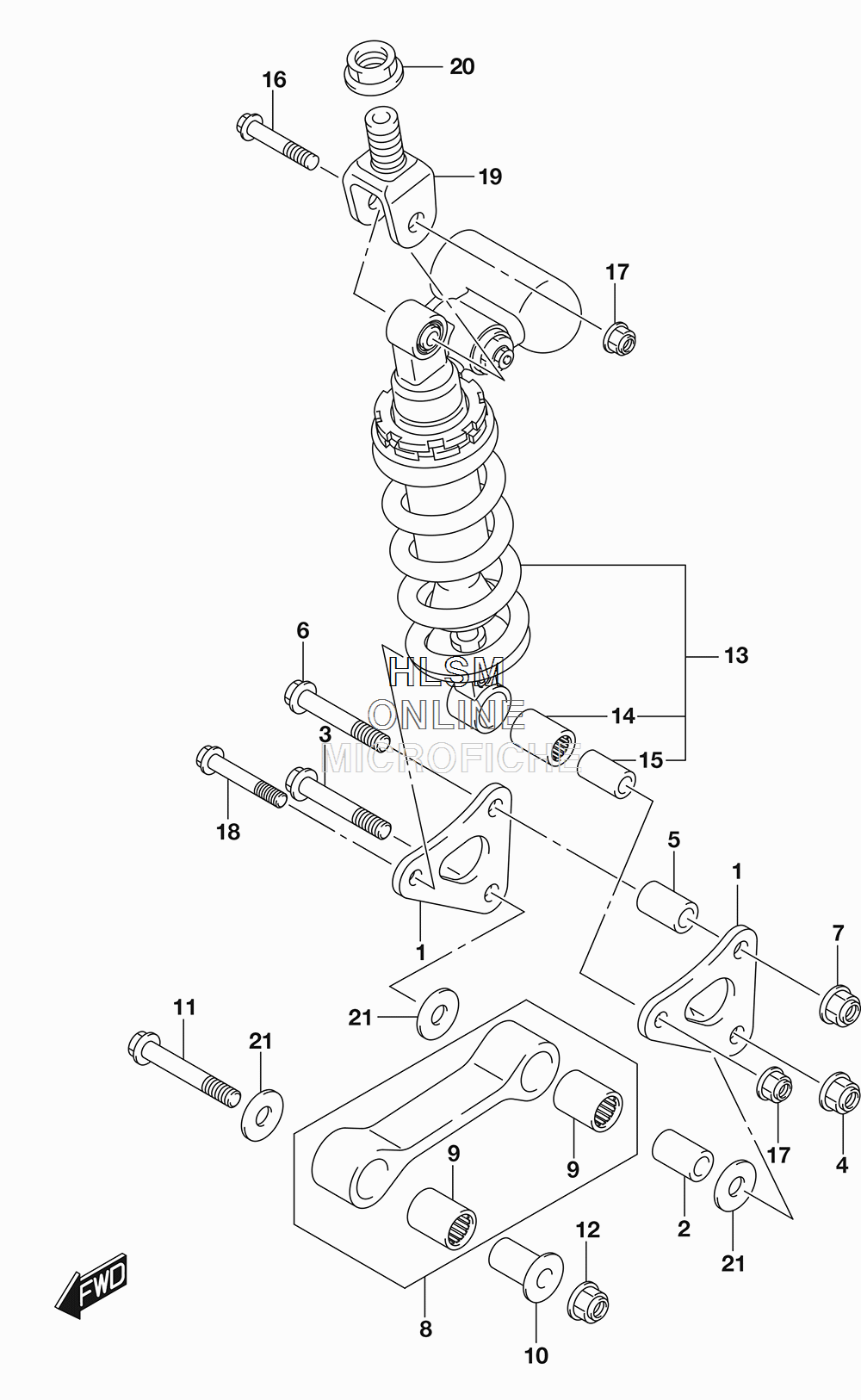

REAR CUSHION LEVER (CALIF.) для Suzuki GSX-R750 - 2017 года выпуска
-
№АртикулНазвание
-
162611-14J00 LEVER, REAR CUSHIONLEVER, REAR CUSHION
-
262317-27C10 SPACER, LOWERSPACER, LOWER
-
362658-47H00 BOLT, REAR CUSHION LEVERBOLT, REAR CUSHION LEVER
-
409159-12056 NUTNUT
-
562317-44B00 SPACER, UPPERSPACER, UPPER
-
662658-47H00 BOLT, REAR CUSHION LEVERBOLT, REAR CUSHION LEVER
-
709159-12056 NUTNUT
-
862602-14860 ROD SET, REAR CUSHION LEVERROD SET, REAR CUSHION LEVER
-
909263-20074 ...BEARING (20X27X32)...BEARING (20X27X32)
-
1062647-47H00 SPACER, RODSPACER, ROD
-
1162621-47H00 BOLT, RODBOLT, ROD
-
1209159-12056 NUTNUT
-
1362100-15870-019 ABSORBER ASSY, REAR SHOCK (019 - BLACK)ABSORBER ASSY, REAR SHOCK (019 - BLACK)
-
1409263-17046 ...BEARING (17X24X32)...BEARING (17X24X32)
-
1562317-47H00 ...SPACER, RR SHOCK ABS LOWER...SPACER, RR SHOCK ABS LOWER
-
1609103-10143 BOLT (10X55) (UPPER)BOLT (10X55) (UPPER)
-
1709159-10115 NUTNUT
-
1862313-47H00 BOLT, LOWER (10X55)BOLT, LOWER (10X55)
-
1962993-47H00 BRACKET, ABSORBERBRACKET, ABSORBER
-
2062994-47H00 NUTNUT
-
2109160-12037 WASHER (12X34X1)WASHER (12X34X1)
