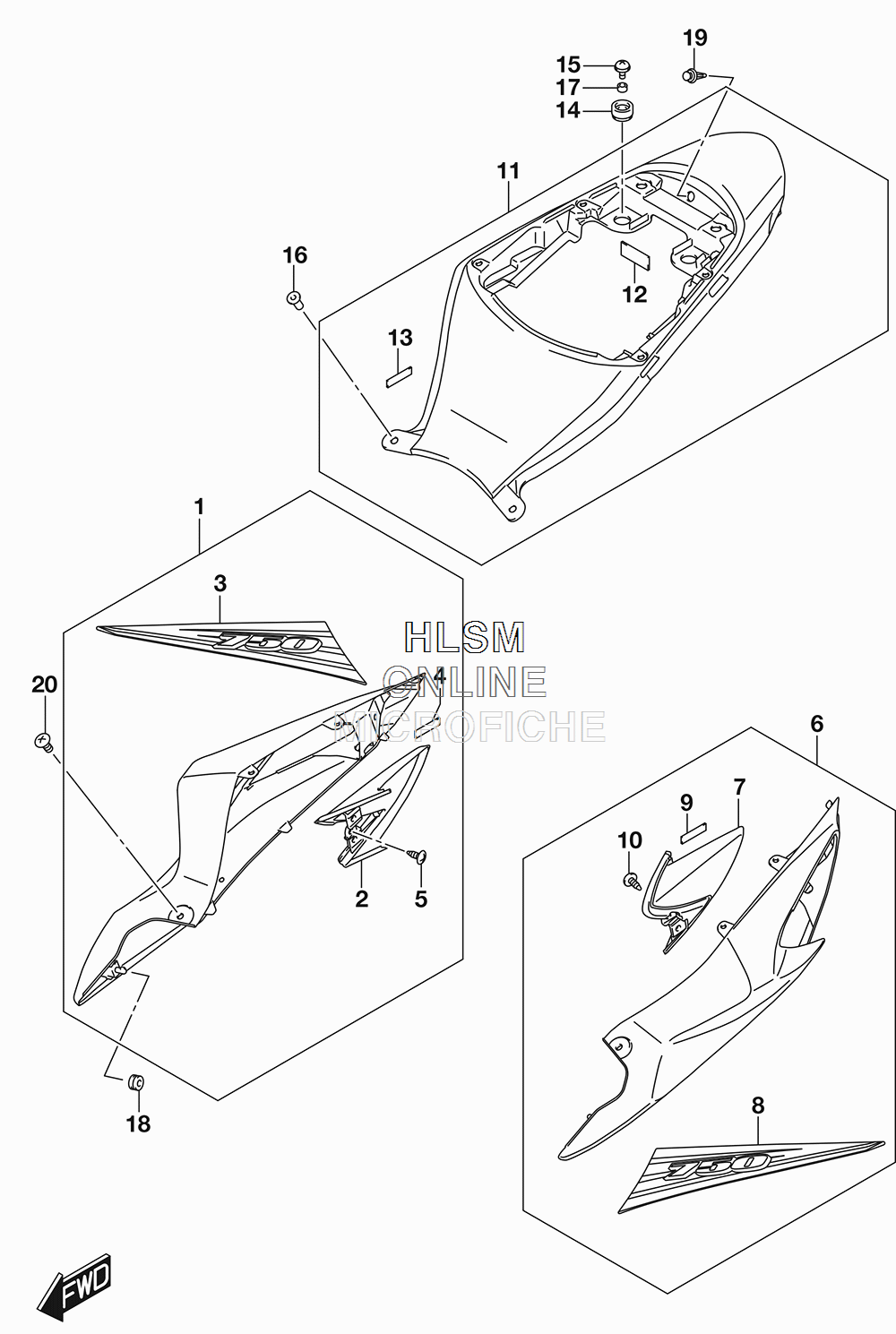

SIDE COVER (YSF - BLUE) для Suzuki GSX-R750 - 2017 года выпуска
-
№АртикулНазвание
-
147100-15J40-YSF COVER, FRAME (RH) (FOR YSF - BLUE)COVER, FRAME (RH) (FOR YSF - BLUE)
-
247611-14J00 ...COVER, FRAME...COVER, FRAME
-
368135-15J30-BE3 ...TAPE, FRAME COVER (RH) (BE3 - BLUE/WHITE/YELLOW/GRAY/ORANGE/BLACK FOR YSF)...TAPE, FRAME COVER (RH) (BE3 - BLUE/WHITE/YELLOW/GRAY/ORANGE/BLACK FOR YSF)
-
494443-06G00 ...TAPE (6X25X0.13)...TAPE (6X25X0.13)
-
503541-0512A ...SCREW...SCREW
-
647200-15J40-YSF COVER, FRAME (LH) (FOR YSF - BLUE)COVER, FRAME (LH) (FOR YSF - BLUE)
-
747621-14J00 ...COVER, FRAME...COVER, FRAME
-
868145-15J30-BE3 ...TAPE, FRAME COVER (LH) (BE3 - BLUE/WHITE/YELLOW/GRAY/ORANGE/BLACK FOR YSF)...TAPE, FRAME COVER (LH) (BE3 - BLUE/WHITE/YELLOW/GRAY/ORANGE/BLACK FOR YSF)
-
994443-06G00 ...TAPE (6X25X0.13)...TAPE (6X25X0.13)
-
1003541-0512A ...SCREW...SCREW
-
1147300-14J00 COVER, FRAME CENTERCOVER, FRAME CENTER
-
1248128-14FA0 ...CUSHION...CUSHION
-
1394443-06G00 ...TAPE...TAPE
-
1447312-37H00 CUSHION, CENTERCUSHION, CENTER
-
1509136-06056 SCREW (6X16)SCREW (6X16)
-
1609159-05019 NUTNUT
-
1709180-06283 SPACER (6.5X10X7)SPACER (6.5X10X7)
-
1809320-06504 CUSHIONCUSHION
-
1909409-06314-5PK CLIP (5PK - BLACK)CLIP (5PK - BLACK)
-
2002142-1520B SCREWSCREW
