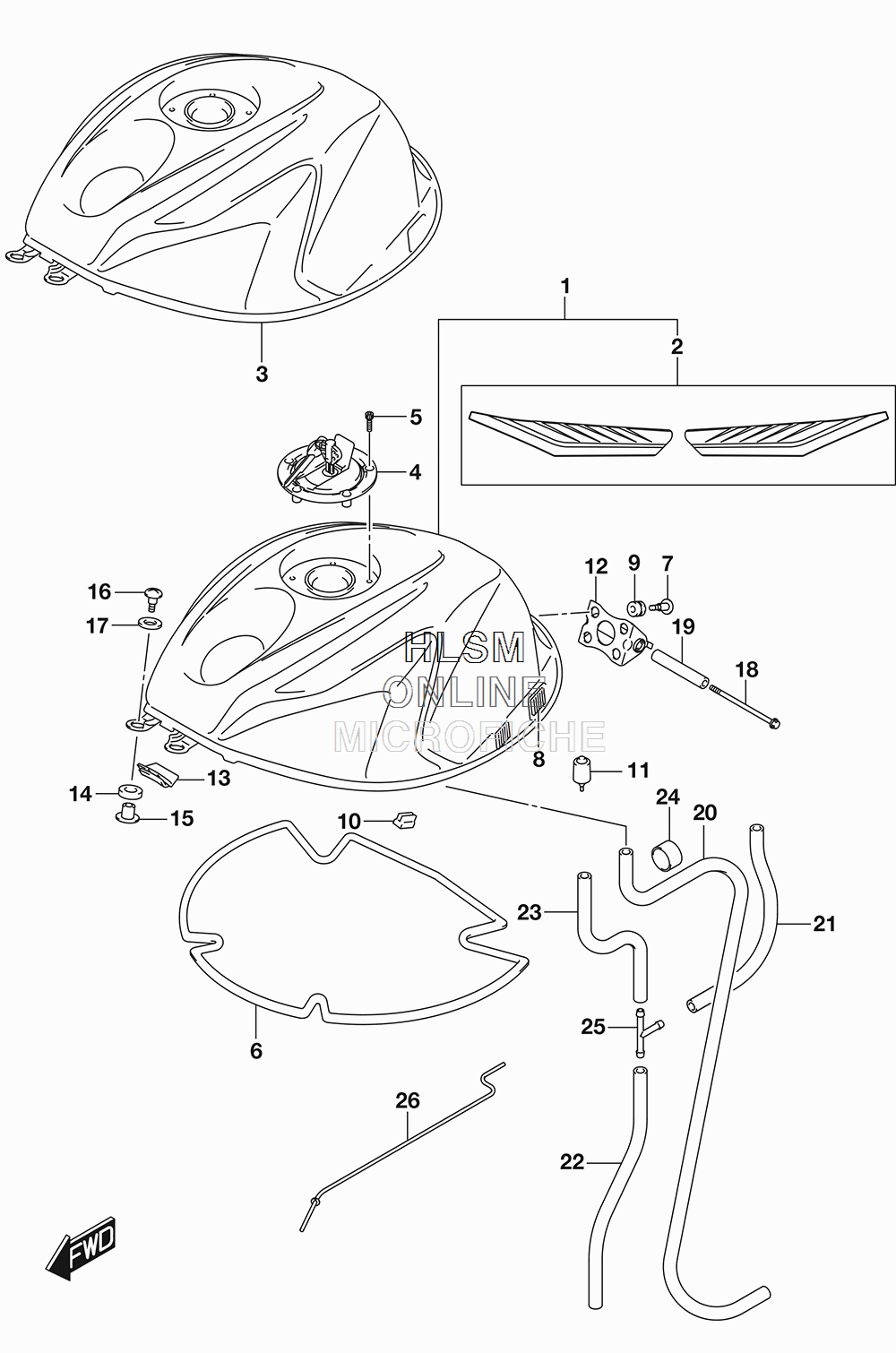

FUEL TANK (CANADA) для Suzuki GSX-R750 - 2017 года выпуска
-
№АртикулНазвание
-
144100-14JC0-YSF TANK ASSY, FUEL (FOR YSF - BLUE)TANK ASSY, FUEL (FOR YSF - BLUE)
-
268110-14J10-BDH ...TAPE SET, FUEL TANK (BDH - BLUE/WHITE FOR YSF)...TAPE SET, FUEL TANK (BDH - BLUE/WHITE FOR YSF)
-
3-144100-14J32-YWW TANK ASSY, FUEL (FOR YWW - WHITE)TANK ASSY, FUEL (FOR YWW - WHITE)
-
3-244100-14J32-YVB TANK ASSY, FUEL (YVB - BLACK FOR KGK)TANK ASSY, FUEL (YVB - BLACK FOR KGK)
-
444200-16850 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
544244-11J00 BOLT, FUEL TANK FILLER CAPBOLT, FUEL TANK FILLER CAP
-
644191-14J00 SHIELD, FUEL TANK HEATSHIELD, FUEL TANK HEAT
-
744543-14J00 SCREW, FUEL TANK REAR BRACKETSCREW, FUEL TANK REAR BRACKET
-
844572-13G00 FASTENER, COVERFASTENER, COVER
-
909320-08071 CUSHIONCUSHION
-
1044276-21H00 CUSHION, TANK COVERCUSHION, TANK COVER
-
1144542-41G00 CUSHION, REARCUSHION, REAR
-
1244530-41G01 BRACKET, REARBRACKET, REAR
-
1344546-44H00 RUBBER, TANK FRONTRUBBER, TANK FRONT
-
1444511-16G00 CUSHIONCUSHION
-
1544512-16G00 SPACER, TANK FRONTSPACER, TANK FRONT
-
1609139-06192 SCREW (6X25)SCREW (6X25)
-
1709160-06012 WASHER (6.5X22X1.6)WASHER (6.5X22X1.6)
-
1809106-06119 BOLT (6X110)BOLT (6X110)
-
1944561-18G00 SPACER, TANK REARSPACER, TANK REAR
-
2044423-14J00 HOSE, DRAINHOSE, DRAIN
-
2144424-14J00 HOSE, BREATHER NO.1HOSE, BREATHER NO.1
-
2244424-14J10 HOSE, BREATHER NO.2HOSE, BREATHER NO.2
-
2344425-09E00 HOSE, BREATHER NO.3 (CUT AS REQUIRED)HOSE, BREATHER NO.3 (CUT AS REQUIRED)
-
2409352-12163-600 HOSE (12X16X600) (L:600->10)HOSE (12X16X600) (L:600->10)
-
2509367-06007 3 WAY3 WAY
-
2644574-35F00 STAY, FUEL TANK (OPT)STAY, FUEL TANK (OPT)
