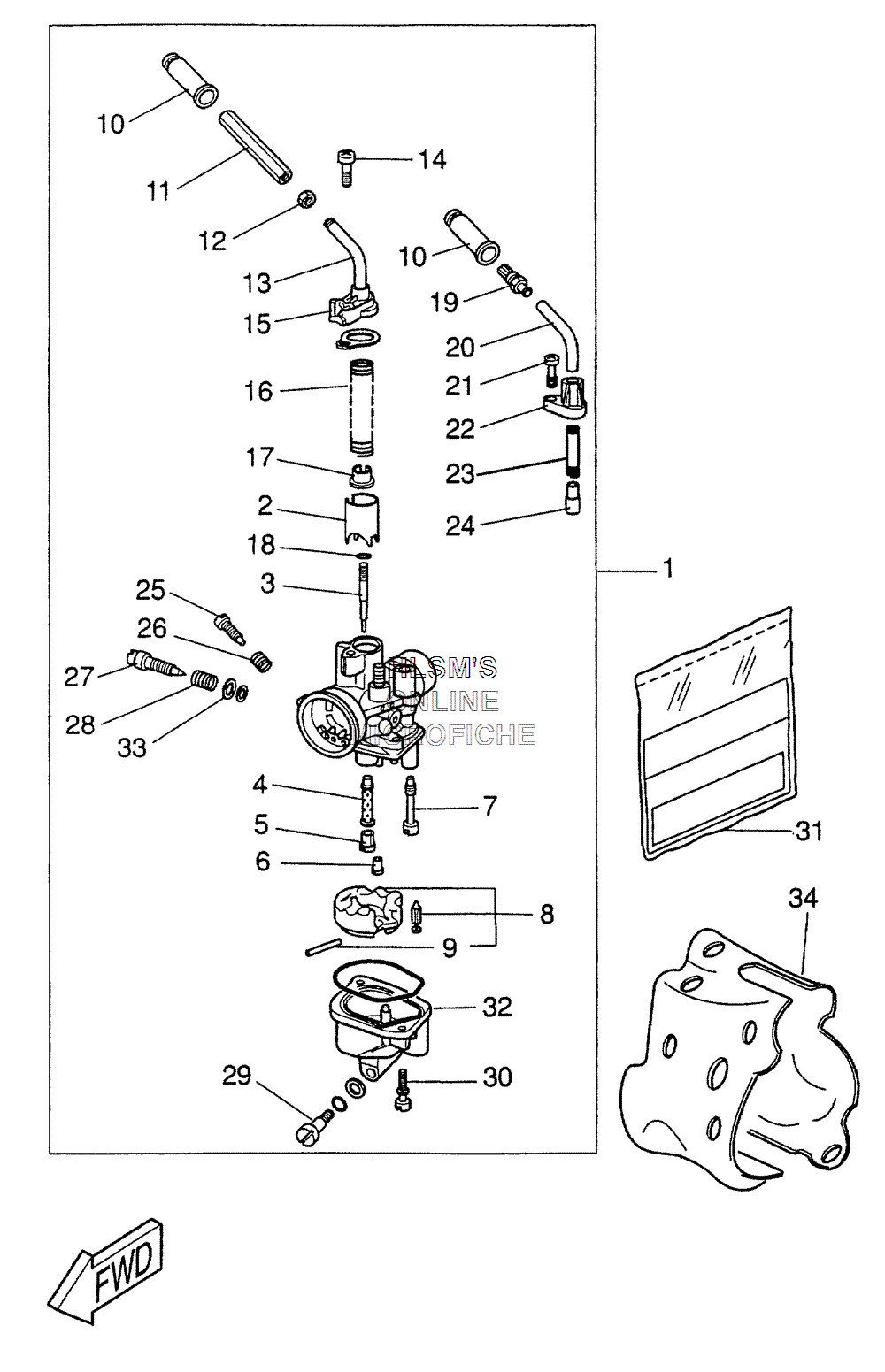

CARBURETOR ASSY. для Yamaha ZUMA ll - 2000 года выпуска
-
№АртикулНазвание
-
14SB-E4301-01-00 CARBURETOR ASSY 1CARBURETOR ASSY 1
-
24SB-E4312-02-00 ...VALVE, THROTTLE 1...VALVE, THROTTLE 1
-
35DN-E4336-00-00 ...NEEDLE...NEEDLE
-
44SB-E4343-00-00 ...JET, MAIN...JET, MAIN
-
54SB-E4331-00-00 ...JET, MAIN...JET, MAIN
-
64SB-E4342-00-00 ...JET, PILOT...JET, PILOT
-
74SB-E4344-01-00 ...JET, STARTER...JET, STARTER
-
85DN-E4385-00-00 ...FLOAT & NEEDLE VALVE SET...FLOAT & NEEDLE VALVE SET
-
94SB-E4386-00-00 ...PIN, FLOAT...PIN, FLOAT
-
104SB-F6329-00-00 ...CAP, RUBBER...CAP, RUBBER
-
115BR-E4161-00-00 ...NUT, CABLE ADJUSTING...NUT, CABLE ADJUSTING
-
125BR-E4358-00-00 ...NUT...NUT
-
134SB-E4148-00-00 ...PIPE...PIPE
-
145BR-E4325-00-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
155BR-E4369-00-00 ...DIAPHRAGM ASSY 2...DIAPHRAGM ASSY 2
-
164SB-E4331-02-00 ...SPRING, THROTTLE VALVE...SPRING, THROTTLE VALVE
-
174SB-E4377-00-00 ...STOPPER...STOPPER
-
184SB-E4137-00-00 ...CLIP...CLIP
-
194SB-E4124-00-00 ...SCREW, CABLE ADJUSTING...SCREW, CABLE ADJUSTING
-
204SB-E4318-00-00 ...PIPE STARTER...PIPE STARTER
-
214SB-E4216-00-00 ...SCREW...SCREW
-
224SB-E4368-01-00 ...DIAPHRAGM ASSY 1...DIAPHRAGM ASSY 1
-
234SB-E4335-00-00 ...SPRING, PLUNGER...SPRING, PLUNGER
-
244SB-E4371-00-00 ...PLUNGER, STARTER...PLUNGER, STARTER
-
254SB-E4104-00-00 ...AIR SCREW SET...AIR SCREW SET
-
264SB-E4134-00-00 ...SPRING, AIR ADJUSTING...SPRING, AIR ADJUSTING
-
274SB-E4103-01-00 ...THROTTLE SCREW...THROTTLE SCREW
-
284SB-E4133-01-00 ...SPRING, THROTTLE STOP...SPRING, THROTTLE STOP
-
294SB-E4115-00-00 ...PLUG, SCREW...PLUG, SCREW
-
304SB-E4216-10-00 ...SCREW...SCREW
-
314SB-W0001-00-00 ...GASKET KIT...GASKET KIT
-
324SB-E4381-00-00 ...BODY, FLOAT CHAMBER...BODY, FLOAT CHAMBER
-
334SB-E4357-00-00 ...WASHER, PLAIN...WASHER, PLAIN
-
344SB-E4283-01-00 COVER, CARBURETOR 1COVER, CARBURETOR 1
