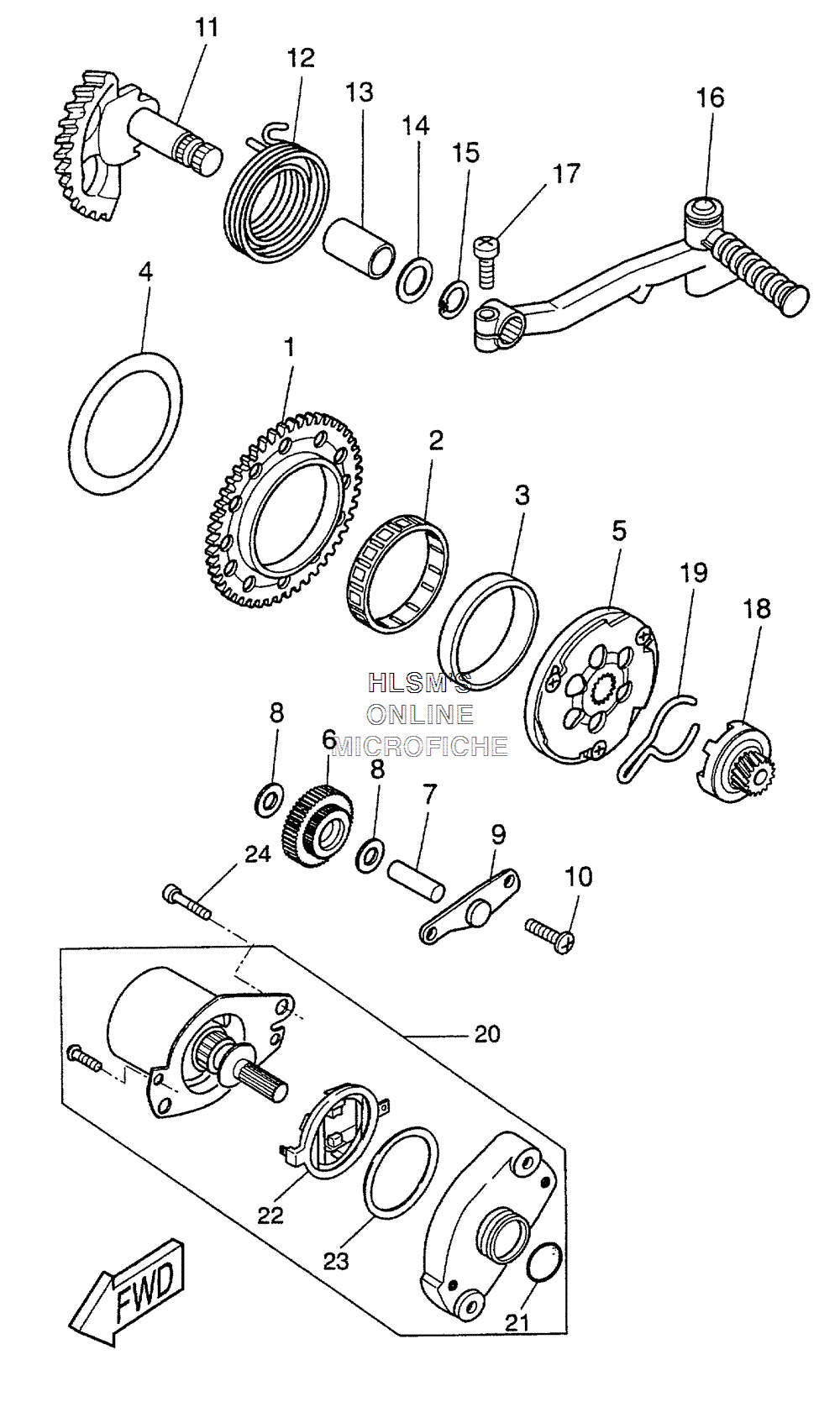

STARTER CLUTCH ASSY. для Yamaha ZUMA ll - 2000 года выпуска
-
№АртикулНазвание
-
13AA-15513-00-00 GEAR 1GEAR 1
-
293310-257R1-00 BEARINGBEARING
-
33VL-E5528-00-00 BOSS, GEARBOSS, GEAR
-
490201-574L1-00 WASHER, PLATEWASHER, PLATE
-
53VL-15570-00-00 STARTER CLUTCH ASSYSTARTER CLUTCH ASSY
-
64SB-E5650-00-00 IDLE GEAR ASSYIDLE GEAR ASSY
-
73VL-E5659-00-00 SHAFTSHAFT
-
890201-08X00-00 WASHER, PLATEWASHER, PLATE
-
93VL-E5532-00-00 PLATE, IDLE GEARPLATE, IDLE GEAR
-
1098517-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
113ES-15601-02-00 KICK SHAFT ASSYKICK SHAFT ASSY
-
1290508-32609-00 SPRING, TORSIONSPRING, TORSION
-
1390380-15X00-00 BUSH, SOLIDBUSH, SOLID
-
1490201-154E9-00 WASHER, PLATEWASHER, PLATE
-
1599009-15400-00 CIRCLIPCIRCLIP
-
163VL-E5620-01-00 KICK CRANK ASSYKICK CRANK ASSY
-
1790101-06X01-00 SCREW H M6X25SCREW H M6X25
-
184SB-E5631-00-00 GEAR, KICK PINIONGEAR, KICK PINION
-
193VL-E5673-00-00 CLIPCLIP
-
204VV-H1800-00-00 STARTING MOTOR ASSYSTARTING MOTOR ASSY
-
2193210-23614-00 ...O-RING...O-RING
-
221YU-81001-M0-00 ...BRUSH SET...BRUSH SET
-
2353L-6181Y-M0-00 ...GASKET, YOKE...GASKET, YOKE
-
2490110-06X03-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
