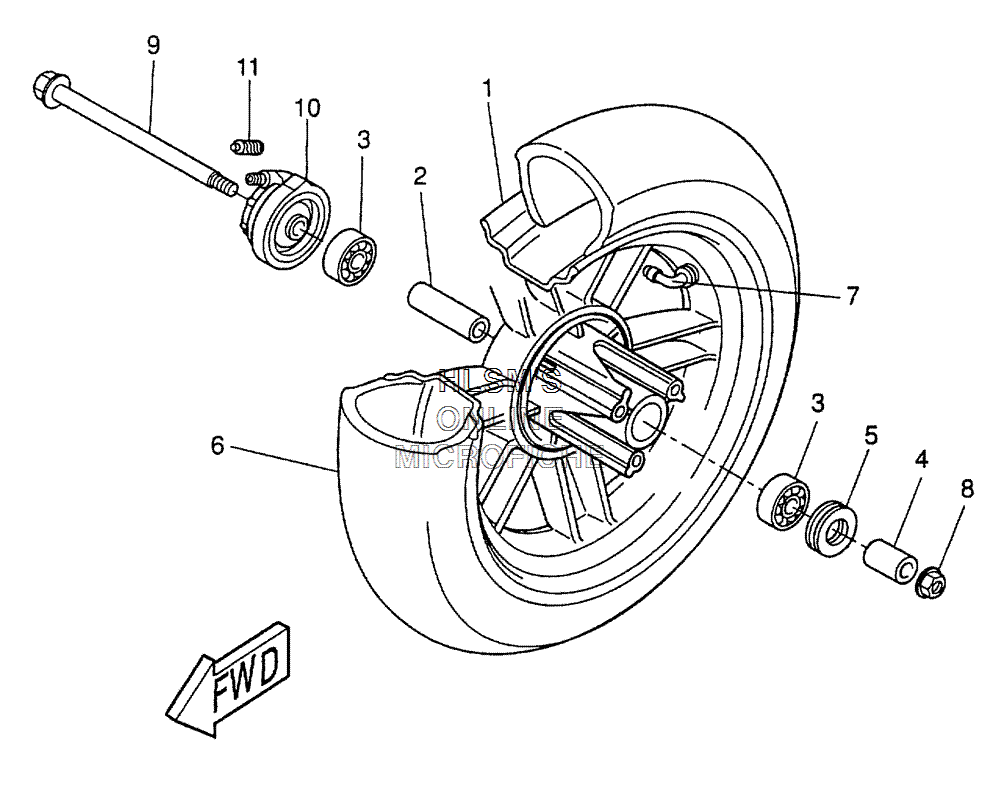

WHEEL - FRONT для Yamaha ZUMA ll - 2000 года выпуска
-
№АртикулНазвание
-
14PA-F6168-40-00 CAST WHEEL, FRONTCAST WHEEL, FRONT
-
24PA-F6117-00-00 SPACER, BEARINGSPACER, BEARING
-
393306-300Y8-00 BEARINGBEARING
-
490387-10079-00 COLLARCOLLAR
-
593106-20001-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
69079Q-04684-00 TIRE (120-90-10 54J) PIRELLTIRE (120-90-10 54J) PIRELL
-
73VL-F6170-10-00 AIR VALVE ASSYAIR VALVE ASSY
-
895617-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
93AA-25181-00-01 AXLE, WHEELAXLE, WHEEL
-
104VV-F5190-00-00 GEAR UNIT ASSY.GEAR UNIT ASSY.
-
114VV-F6138-00-00 ...GEAR, METER...GEAR, METER
