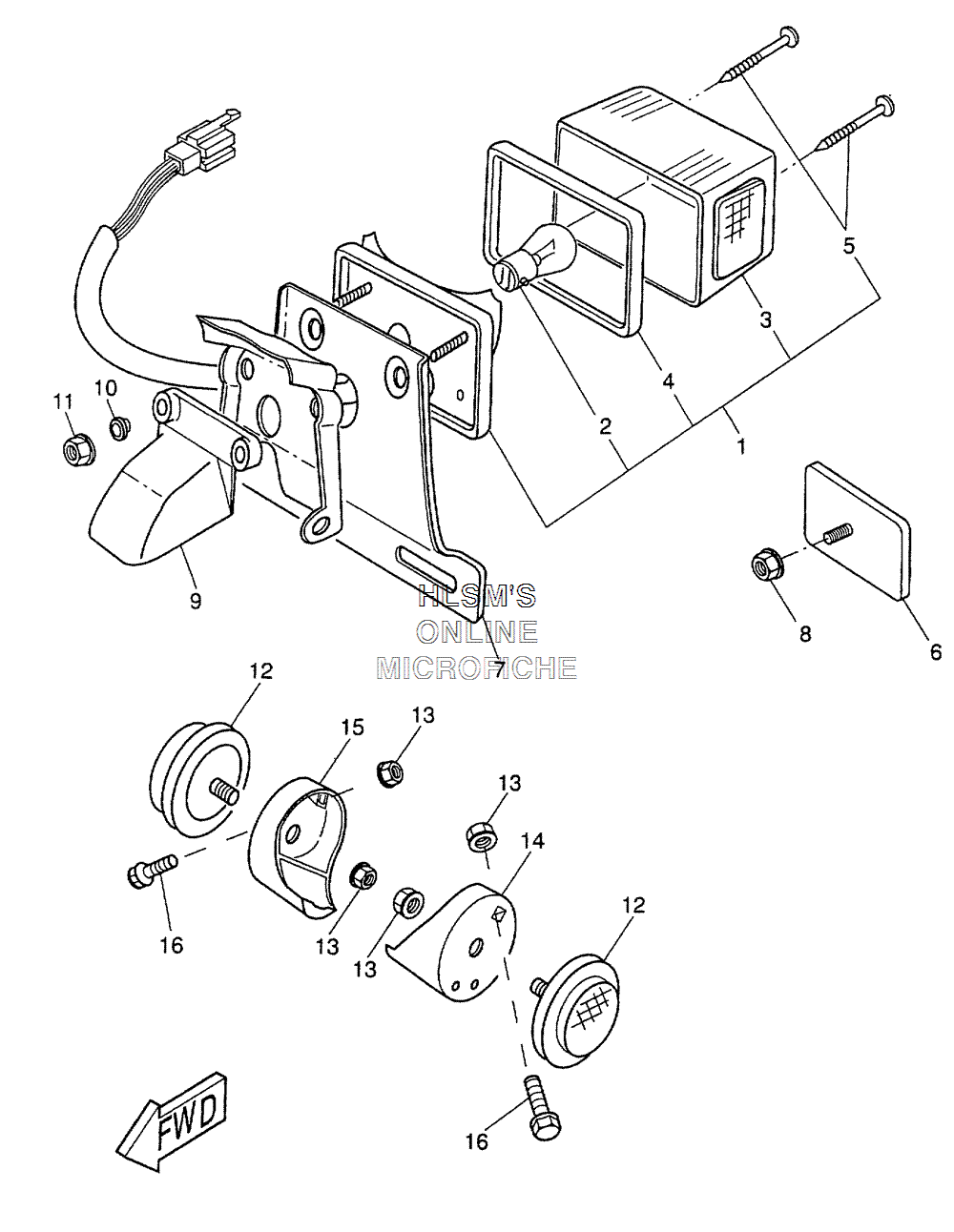

TAILLIGHT ASSY. для Yamaha ZUMA ll - 2000 года выпуска
-
№АртикулНазвание
-
12EK-84710-00-00 TAILLIGHT UNIT ASSYTAILLIGHT UNIT ASSY
-
234X-84714-00-00 BULB, TL 12V21/5WBULB, TL 12V21/5W
-
31M1-84521-60-00 LENS, TAILLIGHTLENS, TAILLIGHT
-
41M1-84523-60-00 GASKET, LENSGASKET, LENS
-
590157-04111-00 SCREW, LENS FITTINGSCREW, LENS FITTING
-
63Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
73ES-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
890179-05X00-00 NUTNUT
-
93L8-84544-00-00 COVERCOVER
-
1090387-06681-00 COLLARCOLLAR
-
1190179-06X00-00 NUTNUT
-
122EK-85111-00-00 REFLECTOR, FRONT 1REFLECTOR, FRONT 1
-
1390179-05X00-00 NUTNUT
-
143ES-85127-50-00 BASE, REFLECTORBASE, REFLECTOR
-
153ES-85137-50-00 BASE, REFLECTORBASE, REFLECTOR
-
1690101-05579-00 BOLTBOLT
