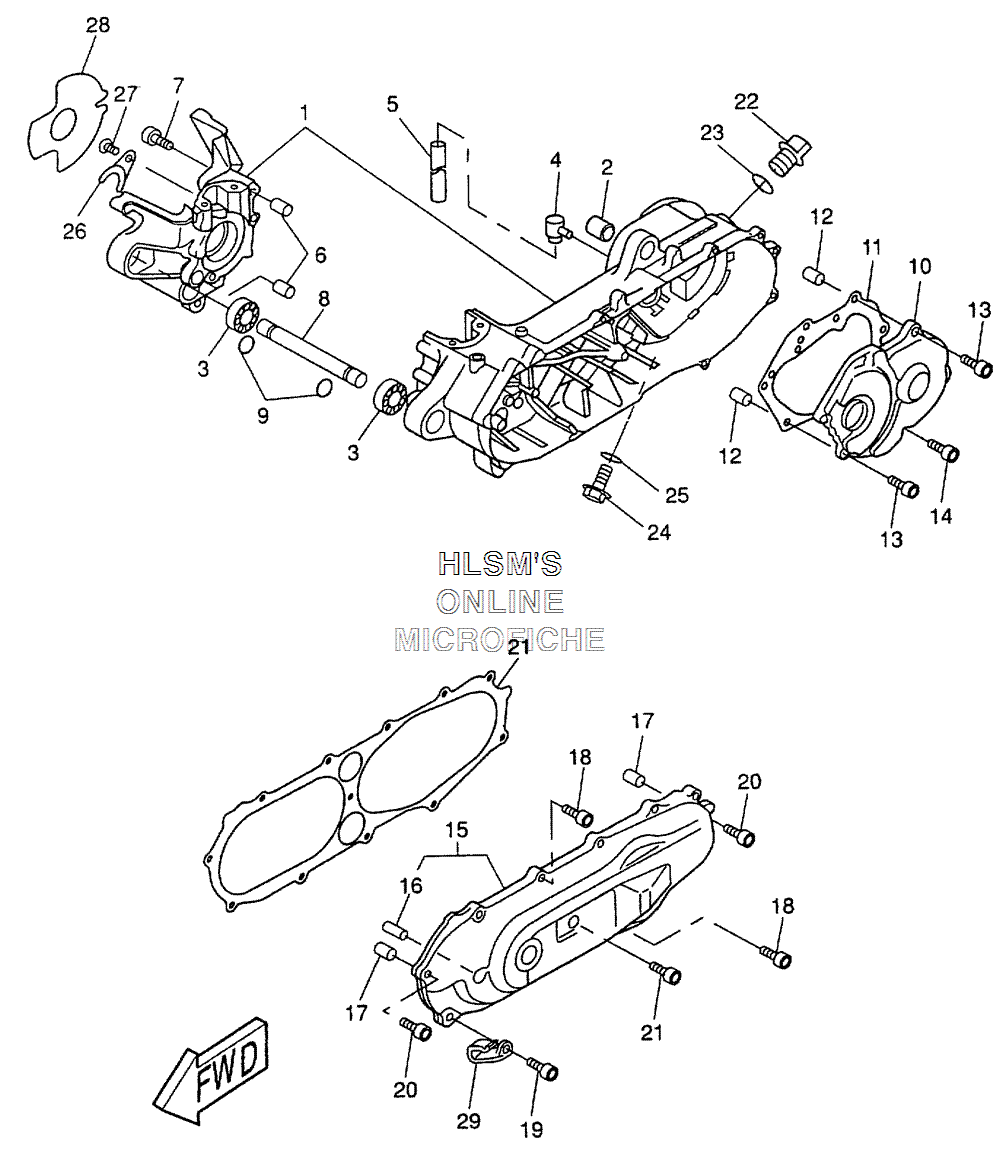

CRANKCASE ASSY. для Yamaha ZUMA ll - 2000 года выпуска
-
№АртикулНазвание
-
13VL-E5150-00-00 CRANKCASE ASSYCRANKCASE ASSY
-
2164-22216-00-00 BUSH, REAR SHOCK ABSORBERBUSH, REAR SHOCK ABSORBER
-
393306-00201-00 BEARINGBEARING
-
43VL-E5371-00-00 BREATHERBREATHER
-
590446-13311-00 HOSEHOSE
-
699510-12016-00 PIN, DOWELPIN, DOWEL
-
71TL-E5481-00-00 BOLT 1BOLT 1
-
83VL-E5317-00-00 SPACER, ENGINE MOUNTSPACER, ENGINE MOUNT
-
999009-15400-00 CIRCLIPCIRCLIP
-
103VL-E5421-00-00 COVER, CRANKCASE 2COVER, CRANKCASE 2
-
113VL-E5461-00-00 GASKET, CRANKCASE COVERGASKET, CRANKCASE COVER
-
1299530-10014-00 PIN, DOWELPIN, DOWEL
-
131TL-E5481-00-00 BOLT 1BOLT 1
-
141TL-E5481-00-00 BOLT 1BOLT 1
-
153VL-E5411-00-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
163VL-E5659-00-00 SHAFTSHAFT
-
1799530-10014-00 PIN, DOWELPIN, DOWEL
-
1890110-06X08-00 BOLT, HEXAGON SOCKET HEAD (BLAC (BLACK)BOLT, HEXAGON SOCKET HEAD (BLAC (BLACK)
-
1990110-06X09-00 BOLT, HEXAGON SOCKET HEAD (BLAC (BLACK)BOLT, HEXAGON SOCKET HEAD (BLAC (BLACK)
-
2091317-06045-00 BOLTBOLT
-
213VL-E5451-00-00 GASKET, CRANKCASE COVERGASKET, CRANKCASE COVER
-
223VL-E5363-00-00 PLUG, OILPLUG, OIL
-
2393210-14104-00 O-RINGO-RING
-
2490105-08X04-00 BOLT, FLANGEBOLT, FLANGE
-
2590430-08206-00 GASKETGASKET
-
263VL-E5128-00-00 HOLDERHOLDER
-
2798517-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
283VL-E5462-00-00 GASKET, CRANKCASE COVERGASKET, CRANKCASE COVER
-
2990465-08277-00 CLAMPCLAMP
