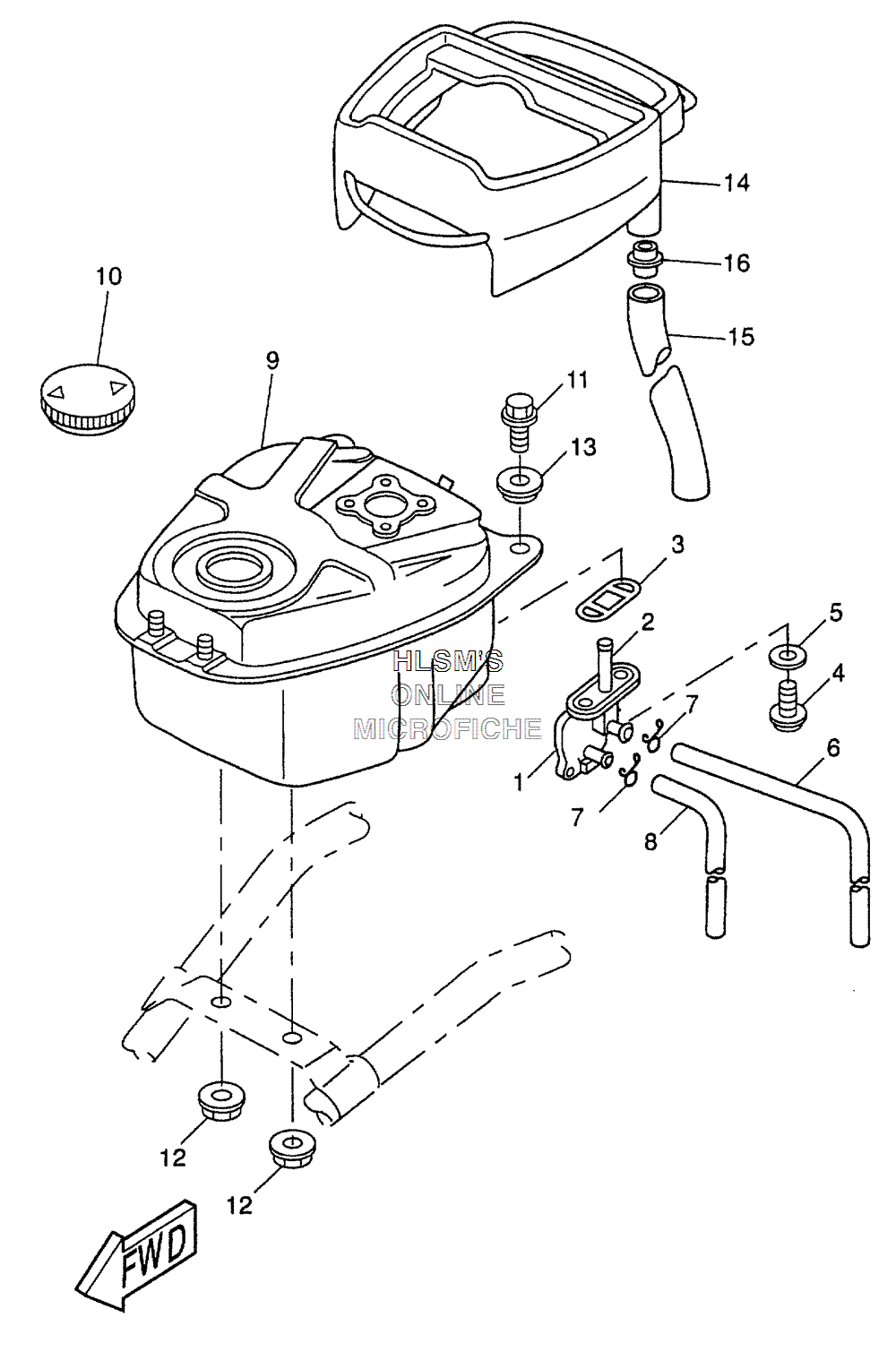

FUEL TANK ASSY. для Yamaha ZUMA ll - 2000 года выпуска
-
№АртикулНазвание
-
14UY-F4500-00-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
24UY-F4501-00-00 ...FILTER, FUEL...FILTER, FUEL
-
33VL-F4512-00-00 ...GASKET...GASKET
-
490149-06011-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
590202-05187-00 WASHER, PLATEWASHER, PLATE
-
63AA-24311-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
790467-09006-00 CLIP, SCISSORCLIP, SCISSOR
-
890445-07370-00 HOSE (L850)HOSE (L850)
-
93VL-F4110-10-00 FUEL TANK COMP.FUEL TANK COMP.
-
1050M-24610-10-00 CAP ASSYCAP ASSY
-
1195027-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1290179-06X00-00 NUTNUT
-
1390209-06306-00 WASHER (0.6T)WASHER (0.6T)
-
143VL-F414A-10-00 COVER, FILLERCOVER, FILLER
-
153VL-F4318-00-00 PIPE, OVERFLOWPIPE, OVERFLOW
-
163VL-F4545-00-00 SPACER, FUEL COCKSPACER, FUEL COCK
