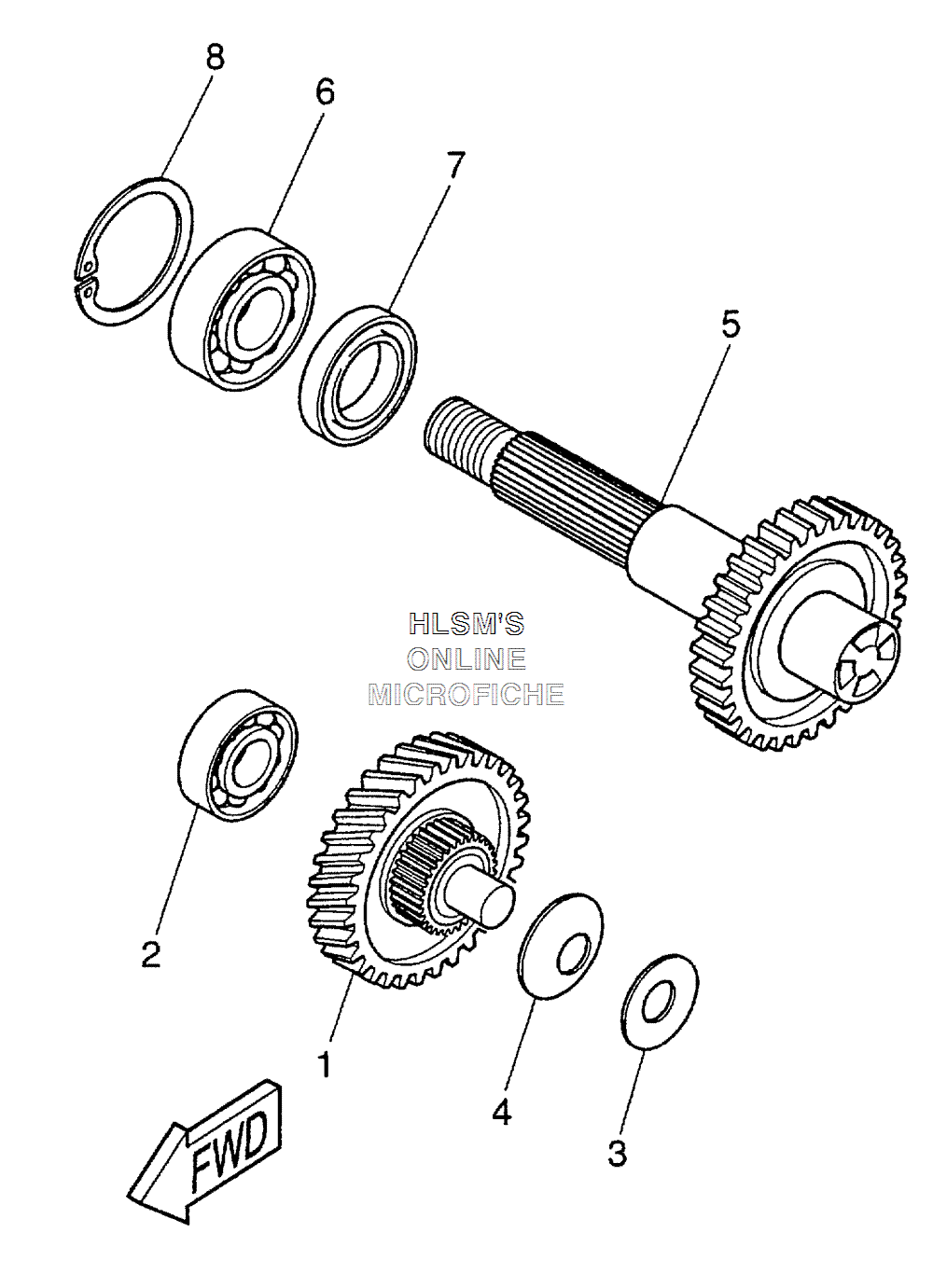

TRANSMISSION для Yamaha ZUMA ll - 2000 года выпуска
-
№АртикулНазвание
-
14SB-E7410-00-00 MAIN AXLE COMP.MAIN AXLE COMP.
-
293306-20009-00 BEARINGBEARING
-
390201-140G5-00 WASHER, PLATEWASHER, PLATE
-
490208-14047-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
54SB-E7420-00-00 DRIVE AXLE ASSYDRIVE AXLE ASSY
-
693306-20310-00 BEARING (B6203DU)BEARING (B6203DU)
-
793102-22897-00 OIL SEAL (1JY)OIL SEAL (1JY)
-
893420-40064-00 CIRCLIP, R-TYPECIRCLIP, R-TYPE
Все узлы модели:
- AIR CLEANER ASSY. W/ INTAKE
- AIR SHROUD W/ FAN
- BRAKE - FRONT CALIPER
- BRAKE - FRONT MASTER CYLINDER
- CARBURETOR ASSY.
- CLUTCH ASSY.
- COWLING W/ LEG SHIELD
- CRANKCASE ASSY.
- CRANKSHAFT W/ PISTON ASSY.
- CYLINDER W/ HEAD ASSY.
- ELECTRICAL
- ELECTRICAL 2
- EXHAUST ASSY.
- FENDER - FRONT / REAR
- FLASHER LIGHT
- FRAME
- FUEL TANK ASSY.
- GENERATOR ASSY.
- HANDLEBAR - COVER W/ MIRRORS
- HANDLEBAR W/ CABLES - MIRRORS
- HANDLEBAR W/ SWITCHES - LEVERS
- HEADLIGHT ASSY.
- INSTRUMENT PANEL
- MODEL INFO - MANUALS
- OIL PUMP
- OIL TANK
- SEAT W/ CARRIER
- SIDE COVER
- STAND W/ FOOTREST
- STARTER CLUTCH ASSY.
- SUSPENSION - FRONT FORK
- SUSPENSION - REAR SHOCK
- TAILLIGHT ASSY.
- • TRANSMISSION
- WHEEL - FRONT
- WHEEL - REAR
