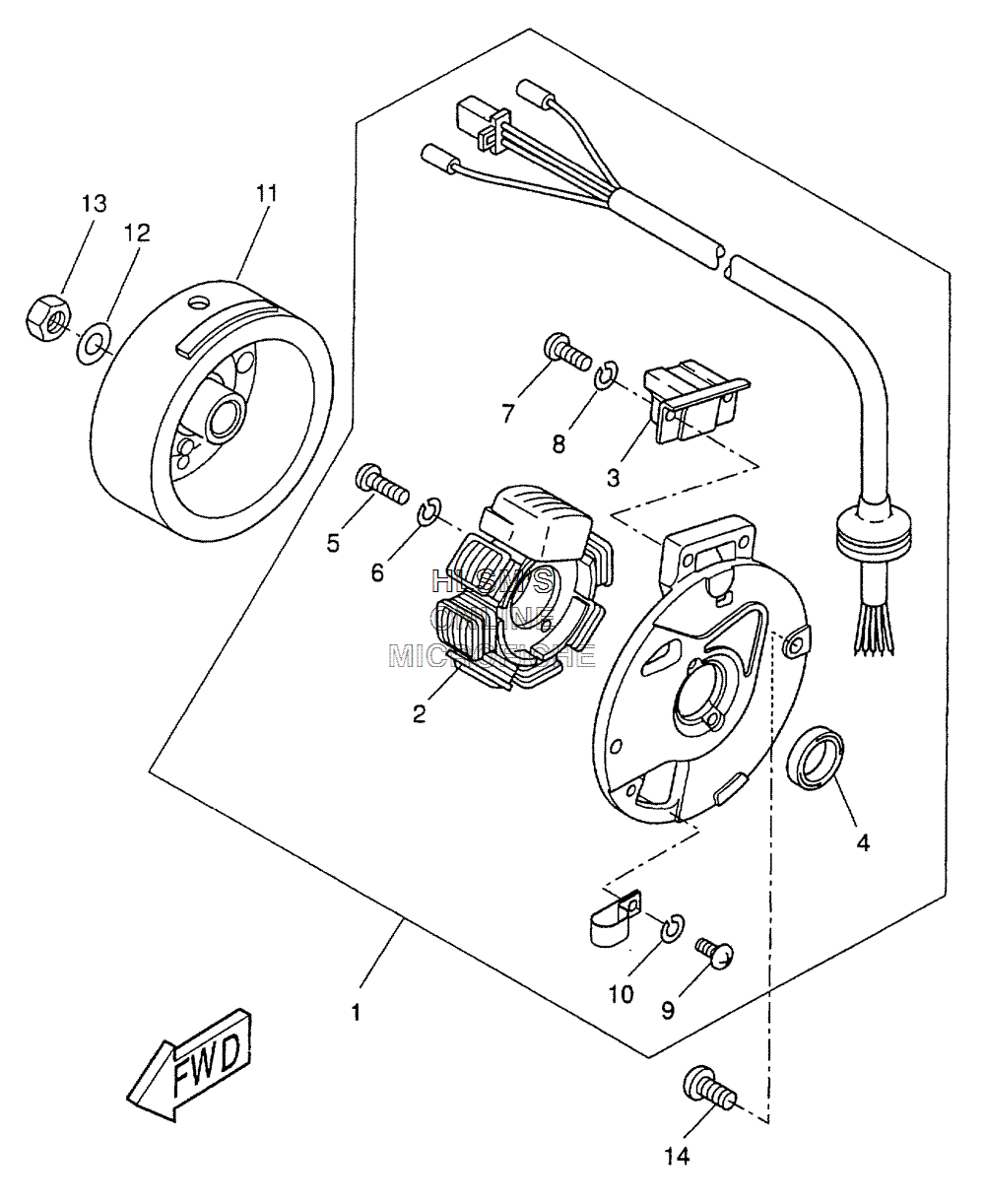

GENERATOR ASSY. для Yamaha ZUMA ll - 2000 года выпуска
-
№АртикулНазвание
-
13ES-85560-01-00 BASE ASSYBASE ASSY
-
23ES-81403-00-00 ...STATOR COMP....STATOR COMP.
-
32JA-85580-M0-00 ...COIL, PULSER...COIL, PULSER
-
493104-19097-00 ...OIL SEAL, SO-TYPE...OIL SEAL, SO-TYPE
-
598580-05525-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
692901-05100-00 ...WASHER, SPRING...WASHER, SPRING
-
798517-05010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
892901-05100-00 ...WASHER, SPRING...WASHER, SPRING
-
998507-04006-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1092990-04100-00 ...WASHER, SPRING...WASHER, SPRING
-
112JA-85550-00-00 ROTOR ASSYROTOR ASSY
-
1290201-10X02-00 WASHER, PLAINWASHER, PLAIN
-
1390170-10219-00 NUTNUT
-
1498507-06016-00 SCREW, PAN HEADSCREW, PAN HEAD
