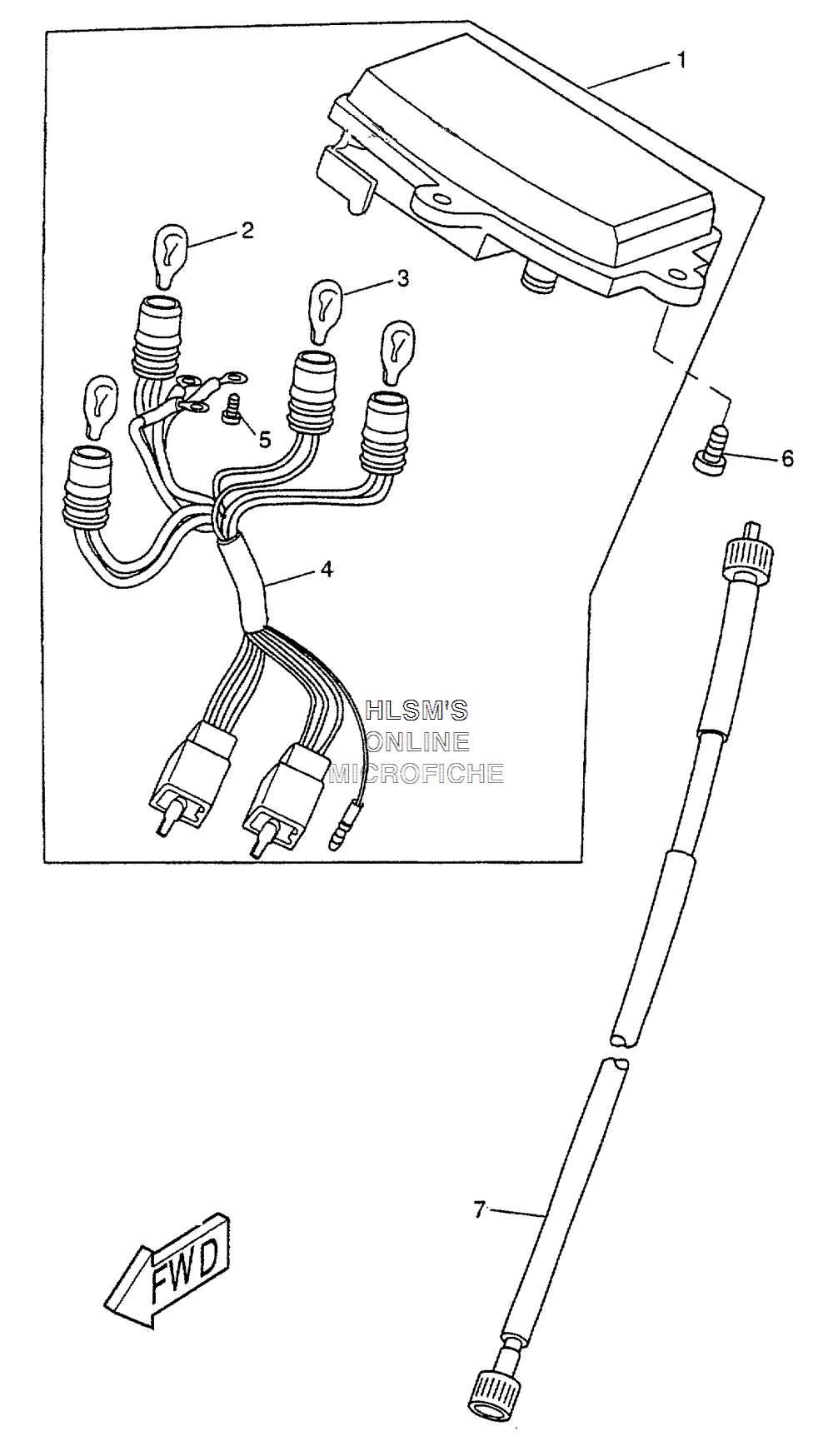

INSTRUMENT PANEL для Yamaha ZUMA ll - 2000 года выпуска
-
№АртикулНазвание
-
13ES-83510-00-00 SPEEDOMETER ASSYSPEEDOMETER ASSY
-
23GM-83517-00-00 ...BULB (12V-1.7W)...BULB (12V-1.7W)
-
33UP-H4347-00-00 ...BULB, MTR.(12V 3.4W)...BULB, MTR.(12V 3.4W)
-
43ES-83509-00-00 ...SOCKET CORD ASSY...SOCKET CORD ASSY
-
590159-03102-00 ...SCREW, WITH WASHER (NOT SHOWN)...SCREW, WITH WASHER (NOT SHOWN)
-
690167-05X01-00 SCREW M5-16SCREW M5-16
-
74PA-H3550-01-00 SPEEDOMETER CABLE ASSYSPEEDOMETER CABLE ASSY
