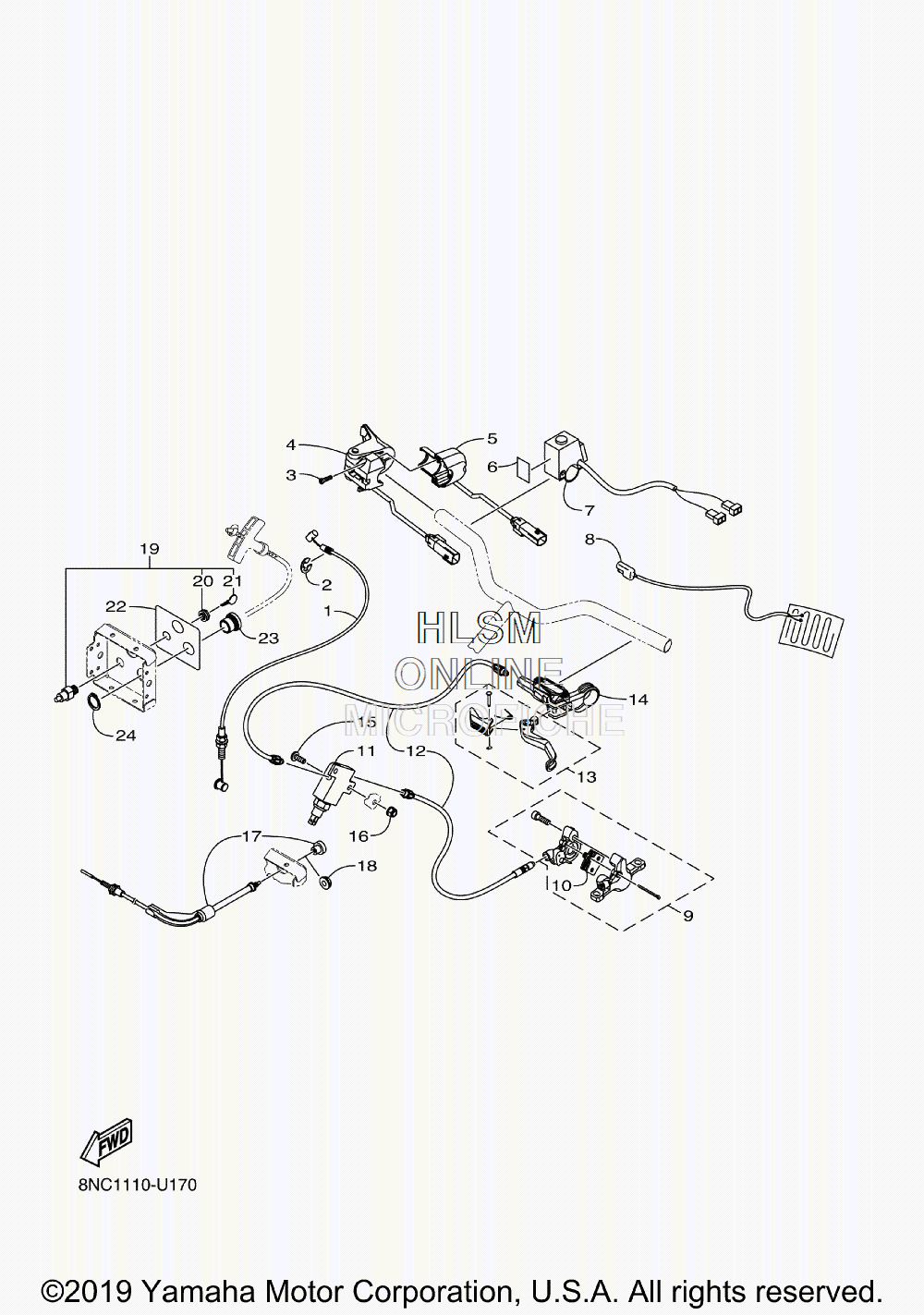

CONTROL ASSY для Yamaha SNOSCOOT ES - 2019 года выпуска
-
№АртикулНазвание
-
18ML-F6311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
28JM-RAH02-00-00 CIRCLIP, 3CIRCLIP, 3
-
38ML-RA286-00-00 SCREW, TAPPINGSCREW, TAPPING
-
48ML-H2720-01-00 LEVER HOLDER ASSY (RIGHT)LEVER HOLDER ASSY (RIGHT)
-
58ML-H2710-00-00 LEVER HOLDER ASSY (LEFT)LEVER HOLDER ASSY (LEFT)
-
68JM-H2108-00-00 LABELLABEL
-
78JM-H2575-00-00 ENGINE STOP SWITCH ASSYENGINE STOP SWITCH ASSY
-
88MV-F626A-00-00 GRIP, WARMERGRIP, WARMER
-
98ML-F580U-00-00 CALIPER ASSY (RIGHT)CALIPER ASSY (RIGHT)
-
108ML-F5811-00-00 ...PAD, CALIPER 2...PAD, CALIPER 2
-
118ML-H2530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
128ML-F584A-00-00 BRAKE HOSE ASSYBRAKE HOSE ASSY
-
138ML-F610A-00-00 BRAKE LEVER SETBRAKE LEVER SET
-
148ML-F583T-00-00 MASTER CYLINDER ASSYMASTER CYLINDER ASSY
-
158JP-RA256-00-00 SCREWSCREW
-
168JM-RA322-00-00 NUT, FLANGE M6-1.0NUT, FLANGE M6-1.0
-
178ML-H8147-00-00 CABLE 2CABLE 2
-
188JM-RA310-00-00 NUTNUT
-
198NC-H2510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
208JM-RA317-00-00 ...NUT...NUT
-
218JM-H2511-00-00 ...KEY, MAIN SWITCH...KEY, MAIN SWITCH
-
228ML-K7741-00-00 INDICATOR 1INDICATOR 1
-
238ML-F2184-00-00 BUSHBUSH
-
248ML-RAH00-00-00 CIRCLIP, 1CIRCLIP, 1
