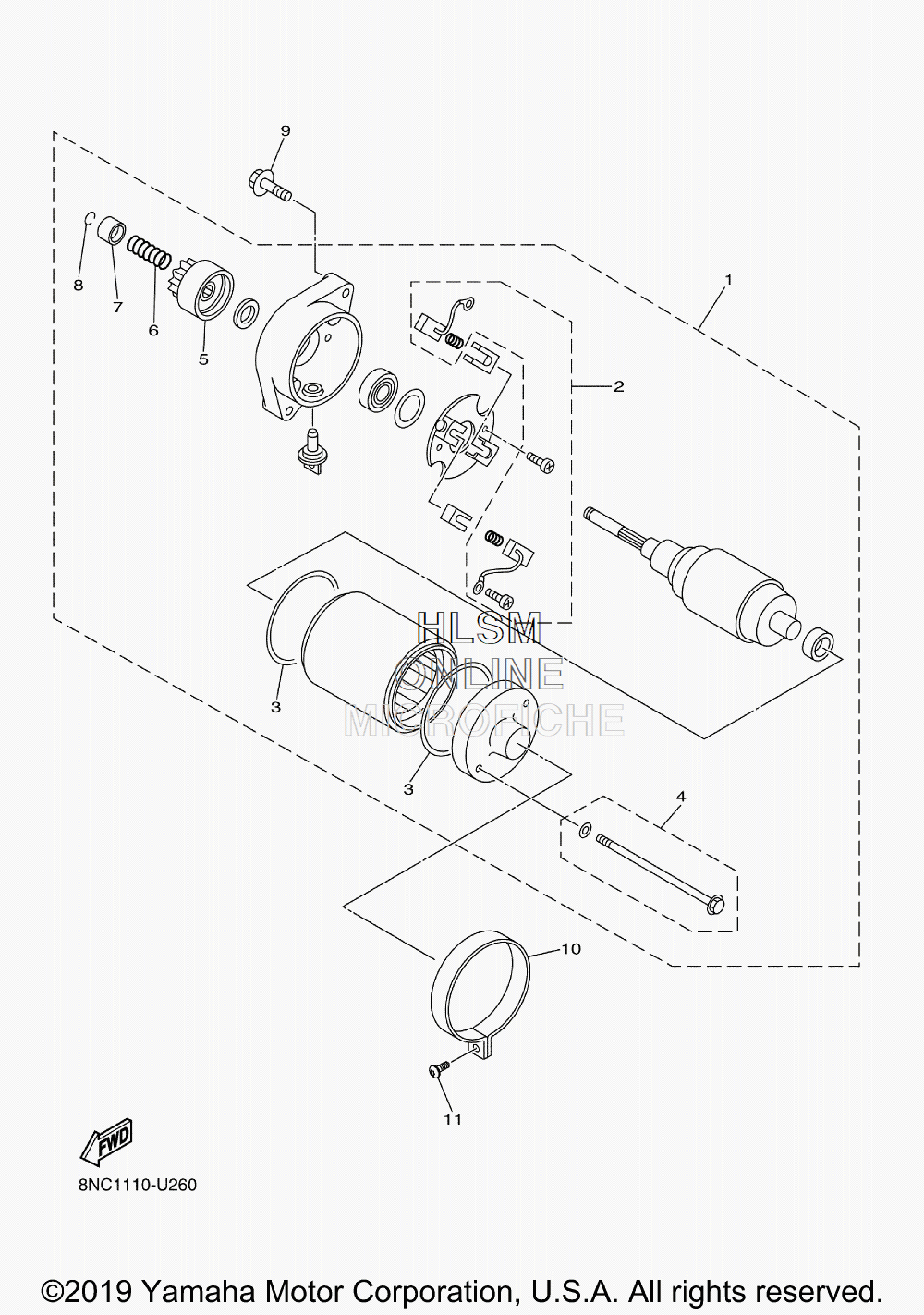

STARTER - ELECTRICAL STARTER ASSY для Yamaha SNOSCOOT ES - 2019 года выпуска
-
№АртикулНазвание
-
17CP-H1800-12-00 STARTING MOTOR ASSYSTARTING MOTOR ASSY
-
27CP-H1801-00-00 ...BRUSH SET...BRUSH SET
-
393210-55669-00 ...O-RING...O-RING
-
47CP-H1828-00-00 ...BOLT 2...BOLT 2
-
57CP-H1807-11-00 ...GEAR ASSY, STARTING MOTOR...GEAR ASSY, STARTING MOTOR
-
67CP-H1858-00-00 ...SPRING, RETURN...SPRING, RETURN
-
77CP-H1859-00-00 ...STOPPER, PINION...STOPPER, PINION
-
87CP-H1833-00-00 ...RING, STOP...RING, STOP
-
995822-06020-00 BOLT, FLANGEBOLT, FLANGE
-
107DH-H1823-00-00 STAY, STARTING MOTORSTAY, STARTING MOTOR
-
118JP-RA255-00-00 SCREW, M6X1.0X16SCREW, M6X1.0X16
