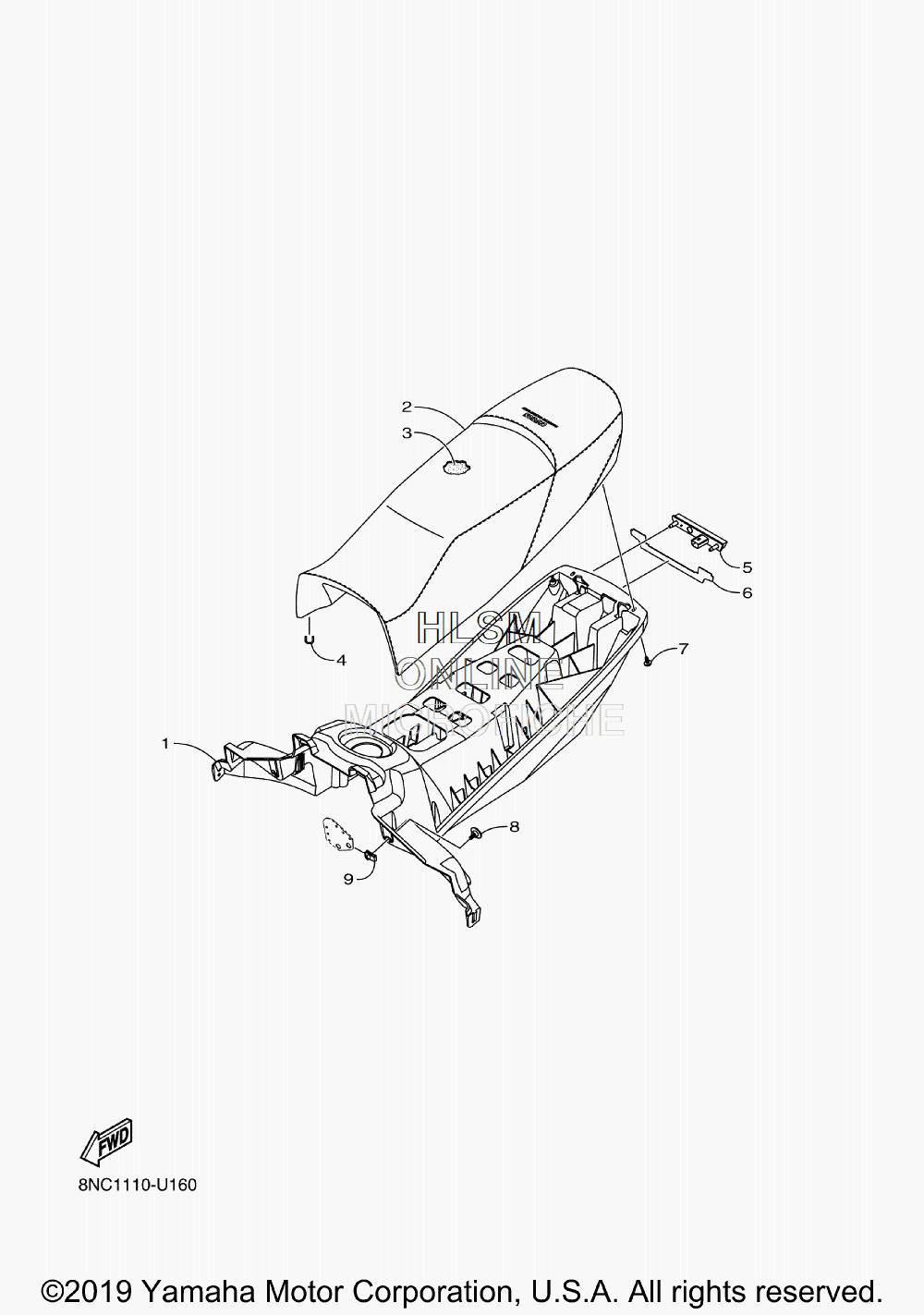

SEAT ASSY для Yamaha SNOSCOOT ES - 2019 года выпуска
-
№АртикулНазвание
-
18ML-F470E-00-00 BOTTOM PLATE COMP.BOTTOM PLATE COMP.
-
28NC-F470F-00-00 SEAT COVER COMP. (DPBSE - PURPLISH BLUE)SEAT COVER COMP. (DPBSE - PURPLISH BLUE)
-
28NC-F470F-10-00 SEAT COVER COMP. (VYRS4 - YELLOWISH RED)SEAT COVER COMP. (VYRS4 - YELLOWISH RED)
-
38ML-F4713-00-00 CUSHIONCUSHION
-
48JM-F473U-00-00 STAPLE (UN)STAPLE (UN)
-
58ML-H4710-00-00 TAILLIGHT UNIT ASSYTAILLIGHT UNIT ASSY
-
68ML-H5143-00-00 TAPE, REFLECTOR 2TAPE, REFLECTOR 2
-
78JP-RA280-10-00 SCREW, TAPPINGSCREW, TAPPING
-
88ML-RA266-00-00 SCREWSCREW
-
98JP-RA354-00-00 NUT, SPRINGNUT, SPRING
