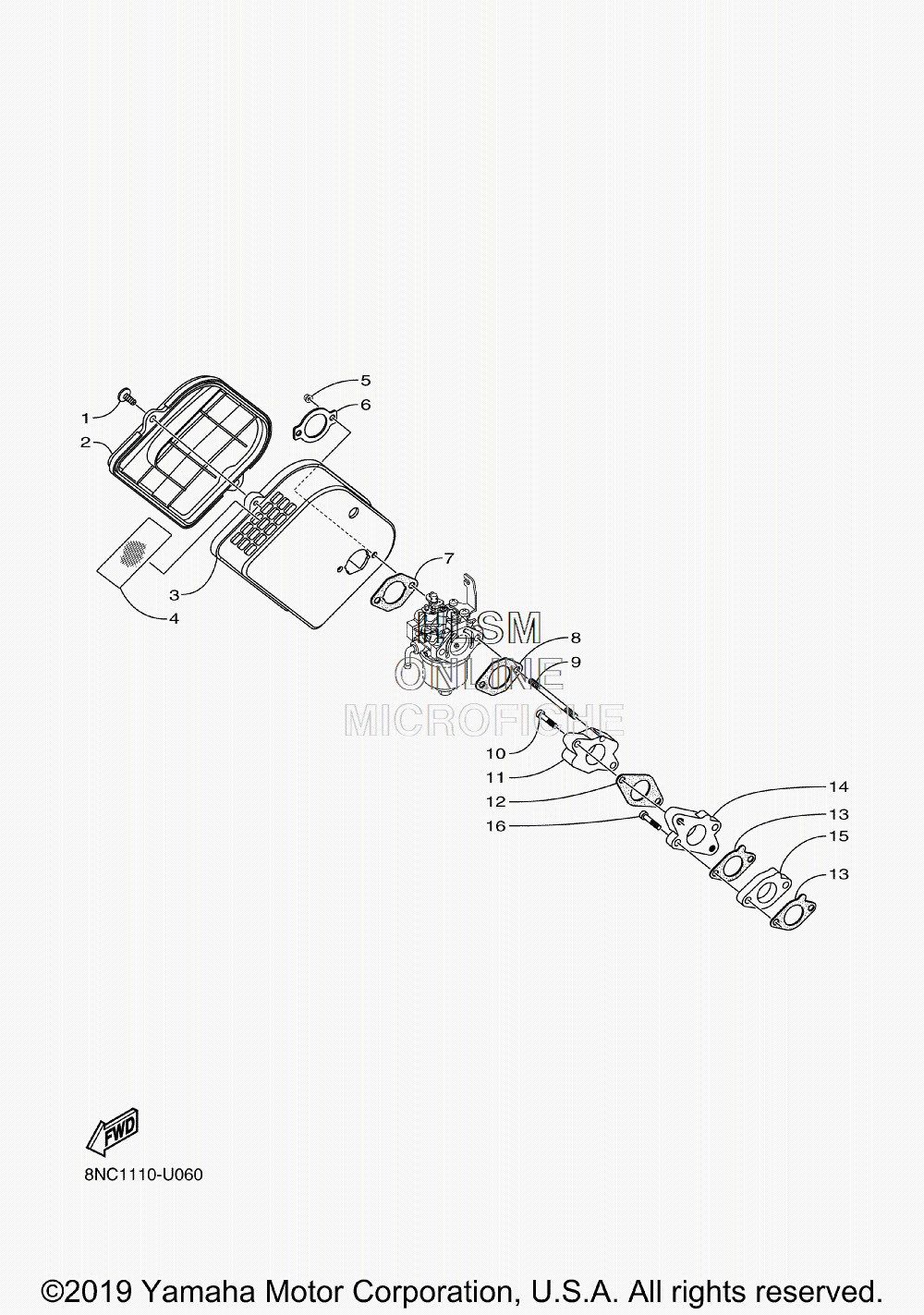

INTAKE W/ AIR BOX ASSY - FUEL PUMP для Yamaha SNOSCOOT ES - 2019 года выпуска
-
№АртикулНазвание
-
190154-06823-00 SCREW, BINDINGSCREW, BINDING
-
27DH-E4412-00-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
37DH-E4411-00-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
48ML-E4472-00-00 PLATE, ELEMENTPLATE, ELEMENT
-
595702-06500-00 NUT, FLANGENUT, FLANGE
-
67VB-E4477-00-00 PLATEPLATE
-
77VB-E3567-00-00 GASKETGASKET
-
87VB-E3557-00-00 GASKETGASKET
-
990116-06033-00 BOLT, STUDBOLT, STUD
-
1091312-06020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
117DH-E3586-10-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
127DH-E3557-00-00 GASKETGASKET
-
137CN-E3557-12-00 GASKETGASKET
-
147DH-E3596-10-00 JOINT, CARBURETOR 2JOINT, CARBURETOR 2
-
157CN-E3596-10-00 JOINT, CARBURETOR 2JOINT, CARBURETOR 2
-
1691312-06035-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
