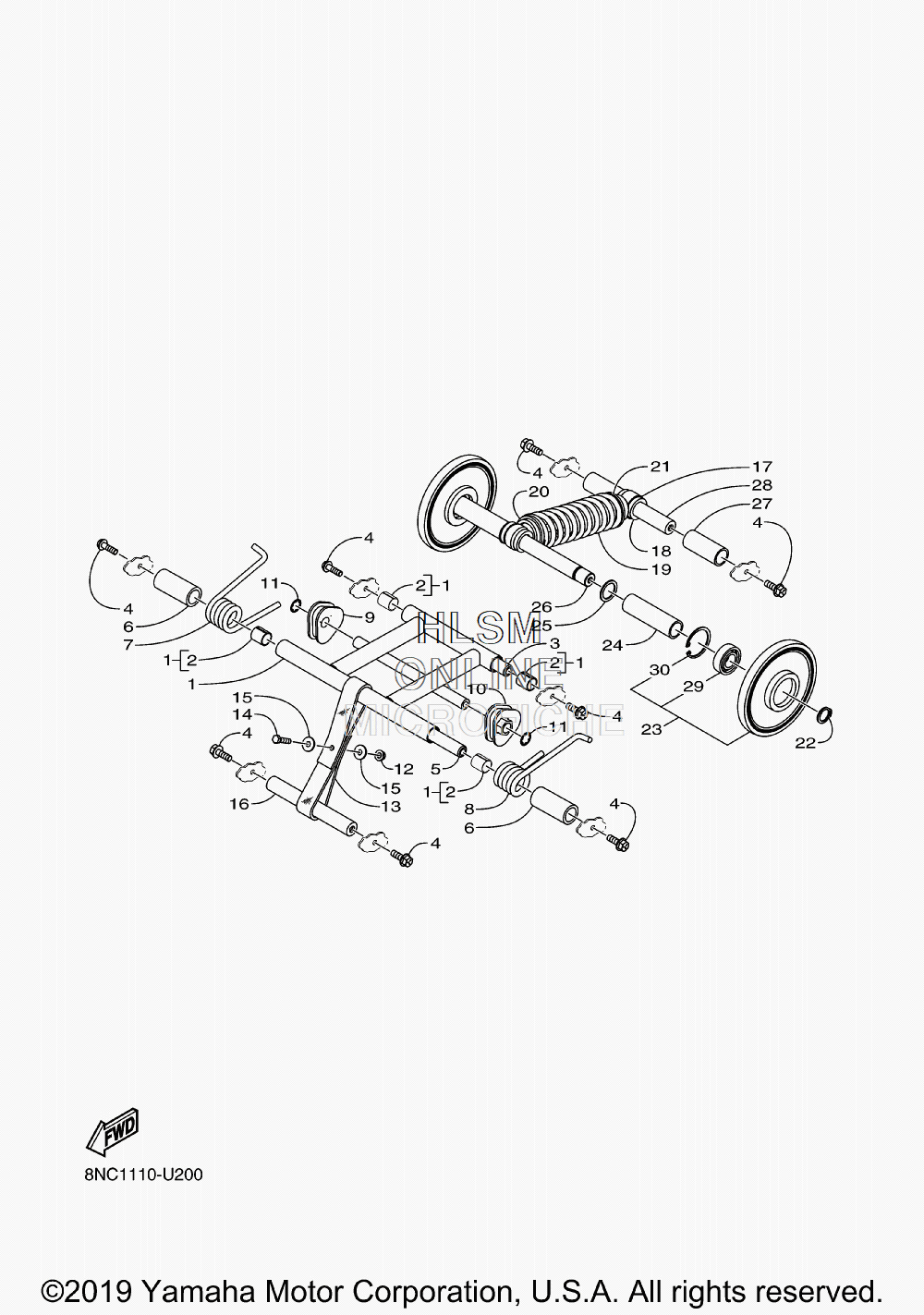

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2 для Yamaha SNOSCOOT ES - 2019 года выпуска
-
№АртикулНазвание
-
18JM-G7331-00-00 ARM, PIVOT 1ARM, PIVOT 1
-
28JM-RA801-00-00 ...BUSH...BUSH
-
38JM-G7486-00-00 SHAFT 4SHAFT 4
-
48JM-RA116-00-00 BOLT, FLANGEBOLT, FLANGE
-
58JM-G7465-00-00 SHAFT 1SHAFT 1
-
68JM-RA705-10-00 COLLARCOLLAR
-
78ML-G7474-00-00 SPRING, REAR 2SPRING, REAR 2
-
88ML-G7473-00-00 SPRING, REAR 1SPRING, REAR 1
-
98JM-G7448-00-00 HOOK 3HOOK 3
-
108JM-G7447-00-00 HOOK 2HOOK 2
-
118JM-RA315-00-00 NUTNUT
-
128JP-RA357-00-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
138ML-G7495-00-00 STOPPER 1STOPPER 1
-
148JM-RA115-10-00 BOLT, HEXAGONBOLT, HEXAGON
-
158JM-RA400-00-00 WASHER, PLAINWASHER, PLAIN
-
168ML-G7475-00-00 SHAFT 2SHAFT 2
-
178ML-G7480-00-00 SHOCK ABSORBERSHOCK ABSORBER
-
188ML-G7538-00-00 BUSHBUSH
-
198JM-F3760-00-00 SPRING ASSY 1SPRING ASSY 1
-
208JM-F3768-00-00 SEAT, SPRING 1SEAT, SPRING 1
-
218JM-F3777-00-00 SEAT, SPRING 2SEAT, SPRING 2
-
228ML-RAH04-00-00 CIRCLIP, 2CIRCLIP, 2
-
238JR-G7310-20-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
248ML-RA708-00-00 COLLARCOLLAR
-
258JP-RA437-00-00 WASHERWASHER
-
268ML-G7465-00-00 SHAFT 1SHAFT 1
-
278ML-RA709-00-00 COLLARCOLLAR
-
288ML-G7486-00-00 SHAFT 4SHAFT 4
-
298JM-RAY03-00-00 ...BEARING, 2 (INCL 23)...BEARING, 2 (INCL 23)
-
308JM-RAH01-00-00 ...CIRCLIP, 2 (INCL 23)...CIRCLIP, 2 (INCL 23)
