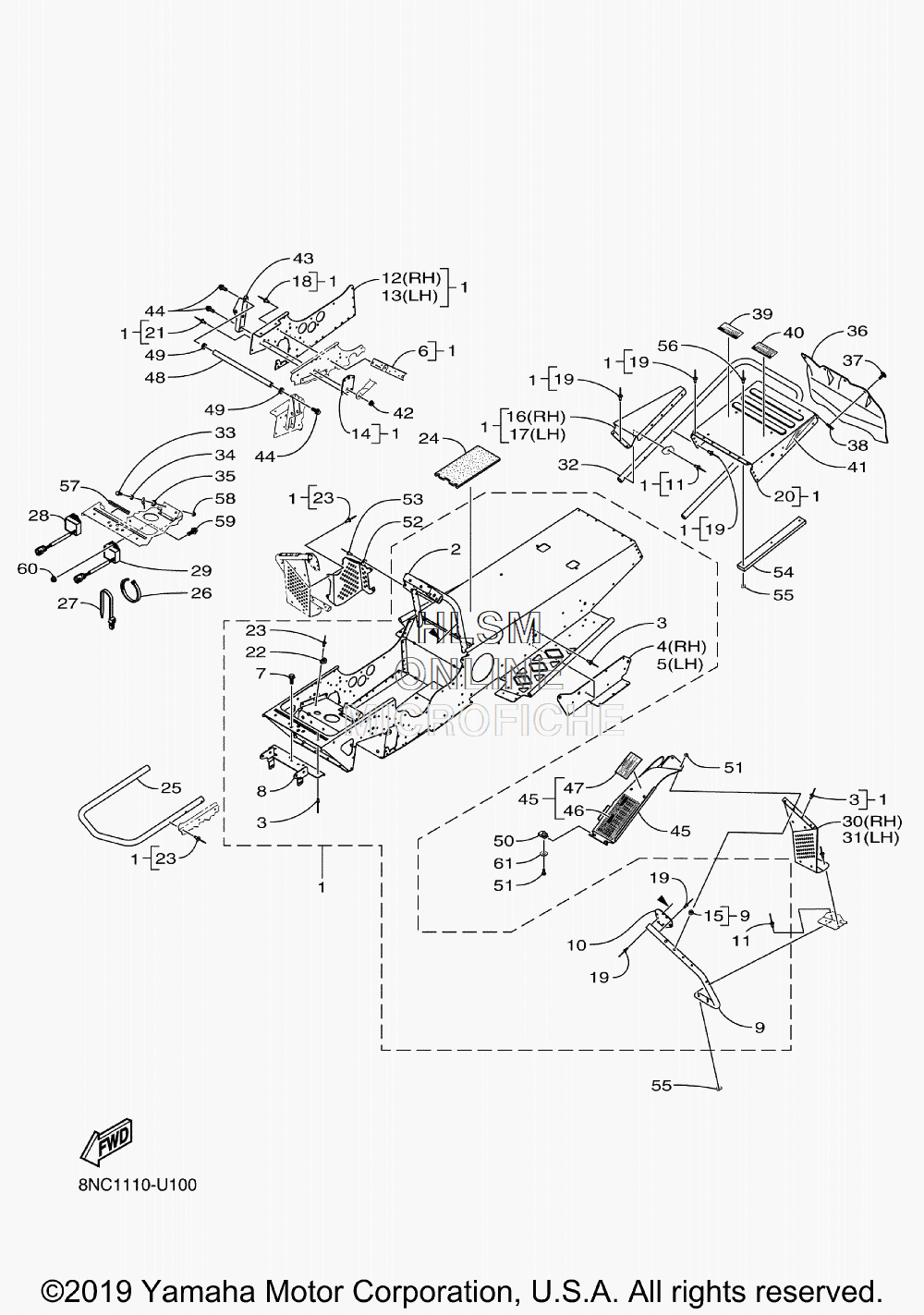

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha SNOSCOOT ES - 2019 года выпуска
-
№АртикулНазвание
-
18ML-F1910-00-00 FRAME COMP.FRAME COMP.
-
28ML-F191A-00-00 ...BULKHEAD...BULKHEAD
-
38JP-RA514-00-00 ...RIVET, 5 (UN)...RIVET, 5 (UN)
-
48ML-F1943-00-00 ...BRACKET, MAIN TRACK 1...BRACKET, MAIN TRACK 1
-
58ML-F1953-00-00 ...BRACKET, MAIN TRACK 2...BRACKET, MAIN TRACK 2
-
68ML-F1921-00-00 ...REINEFORCEMENT, FRAME REAR 1...REINEFORCEMENT, FRAME REAR 1
-
78JM-RA202-00-00 ...SCREW, TAPPING...SCREW, TAPPING
-
88ML-F191D-00-00 ...FRAME, FRONT END...FRAME, FRONT END
-
98ML-F1986-00-00 ...REINFORCEMENT, FRAME 1...REINFORCEMENT, FRAME 1
-
108ML-F5921-00-00 ...BRACKET, SUPPORT...BRACKET, SUPPORT
-
118ML-RA510-00-00 ...RIVET, 1...RIVET, 1
-
128ML-F191B-00-00 ...PLATE 1...PLATE 1
-
138ML-F191C-00-00 ...PLATE 2...PLATE 2
-
148MV-F191B-00-00 ...PLATE 1...PLATE 1
-
158JP-RA331-00-00 ......NUT, HEXAGON (IN 9)......NUT, HEXAGON (IN 9)
-
168ML-K7544-00-00 ...BUMPER, REAR 4...BUMPER, REAR 4
-
178ML-K7543-00-00 ...BUMPER, REAR 3...BUMPER, REAR 3
-
188JP-RA515-00-00 ...RIVET, 6...RIVET, 6
-
198ML-RA512-00-00 ...RIVET, 3...RIVET, 3
-
208ML-F131D-00-00 ...PLATE, COVER...PLATE, COVER
-
218ML-RA513-00-00 ...RIVET, 4...RIVET, 4
-
228ML-E4744-00-00 ...BRACKET...BRACKET
-
238JP-RA518-00-00 ...RIVET, 9...RIVET, 9
-
248ML-F4141-00-00 PROTECTOR, FUEL TANKPROTECTOR, FUEL TANK
-
258MV-K7511-10-00 BUMPER, FRONT 1 (DPBSE - PURPLISH BLUE)BUMPER, FRONT 1 (DPBSE - PURPLISH BLUE)
-
258MV-K7511-20-00 BUMPER, FRONT 1 (VYRS4 - YELLOWISH RED)BUMPER, FRONT 1 (VYRS4 - YELLOWISH RED)
-
268JM-RAB01-00-00 CLAMP, 2 (8 INCH) (UN)CLAMP, 2 (8 INCH) (UN)
-
278JM-RAB02-00-00 CLAMP, 3CLAMP, 3
-
288ML-H1960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
298ML-H1910-00-00 VOLTAGE REGULATOR ASSYVOLTAGE REGULATOR ASSY
-
308ML-F7421-00-00 FOOTREST 2FOOTREST 2
-
318ML-F7411-00-00 FOOTREST 1FOOTREST 1
-
328ML-K7541-10-00 BUMPER, REAR 1 (DPBSE - PURPLISH BLUE)BUMPER, REAR 1 (DPBSE - PURPLISH BLUE)
-
328ML-K7541-20-00 BUMPER, REAR 1 (VYRS4 - YELLOWISH RED)BUMPER, REAR 1 (VYRS4 - YELLOWISH RED)
-
338MV-RA106-00-00 BOLT, FLANGEBOLT, FLANGE
-
348ML-RA402-00-00 WASHER, SPRINGWASHER, SPRING
-
358JM-RA407-00-00 WASHER, TOOTHED LOCKWASHER, TOOTHED LOCK
-
368ML-K7595-00-00 FLAPFLAP
-
378JP-RA202-00-00 SCREW, TAPPINGSCREW, TAPPING
-
388JP-RA349-00-00 NUT, SPRINGNUT, SPRING
-
398JP-K7762-S0-00 LABEL, WARNING 2 (FRENCH)LABEL, WARNING 2 (FRENCH)
-
408JP-K7762-70-00 LABEL, WARNING 2 (ENGLISH)LABEL, WARNING 2 (ENGLISH)
-
418JP-F151A-00-00 LABEL 1LABEL 1
-
428JM-RA303-00-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
438MV-F376J-00-00 HOLDER, ABSORBERHOLDER, ABSORBER
-
448JM-RA117-00-00 BOLT, FLANGEBOLT, FLANGE
-
458ML-K7310-00-00 DRIVE GUARD ASSYDRIVE GUARD ASSY
-
468ML-E417F-00-00 ...LABEL, CAUTION...LABEL, CAUTION
-
478ML-K7763-00-00 ...LABEL, WARNING 3...LABEL, WARNING 3
-
488JM-G7465-00-00 SHAFT 1SHAFT 1
-
498MV-RA466-00-00 WASHER, 9WASHER, 9
-
508JP-RA353-00-00 NUT, SPRINGNUT, SPRING
-
518JP-RA2A0-00-00 SCREW, 11SCREW, 11
-
528ML-F5718-00-00 PROTECTOR, DISC BRAKEPROTECTOR, DISC BRAKE
-
538JP-RA517-00-00 RIVET, 8RIVET, 8
-
548ML-F1978-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
558ML-RA400-10-00 WASHER, PLAINWASHER, PLAIN
-
568ML-RA514-00-00 RIVET, 5RIVET, 5
-
578JP-F15B3-00-00 TRIM (3 FEET) (UN)TRIM (3 FEET) (UN)
-
588JP-RA357-00-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
598JP-RA261-00-00 SCREWSCREW
-
608JM-RA322-00-00 NUT, FLANGE M6-1.0NUT, FLANGE M6-1.0
-
618JM-RA411-00-00 WASHER, PLAINWASHER, PLAIN
