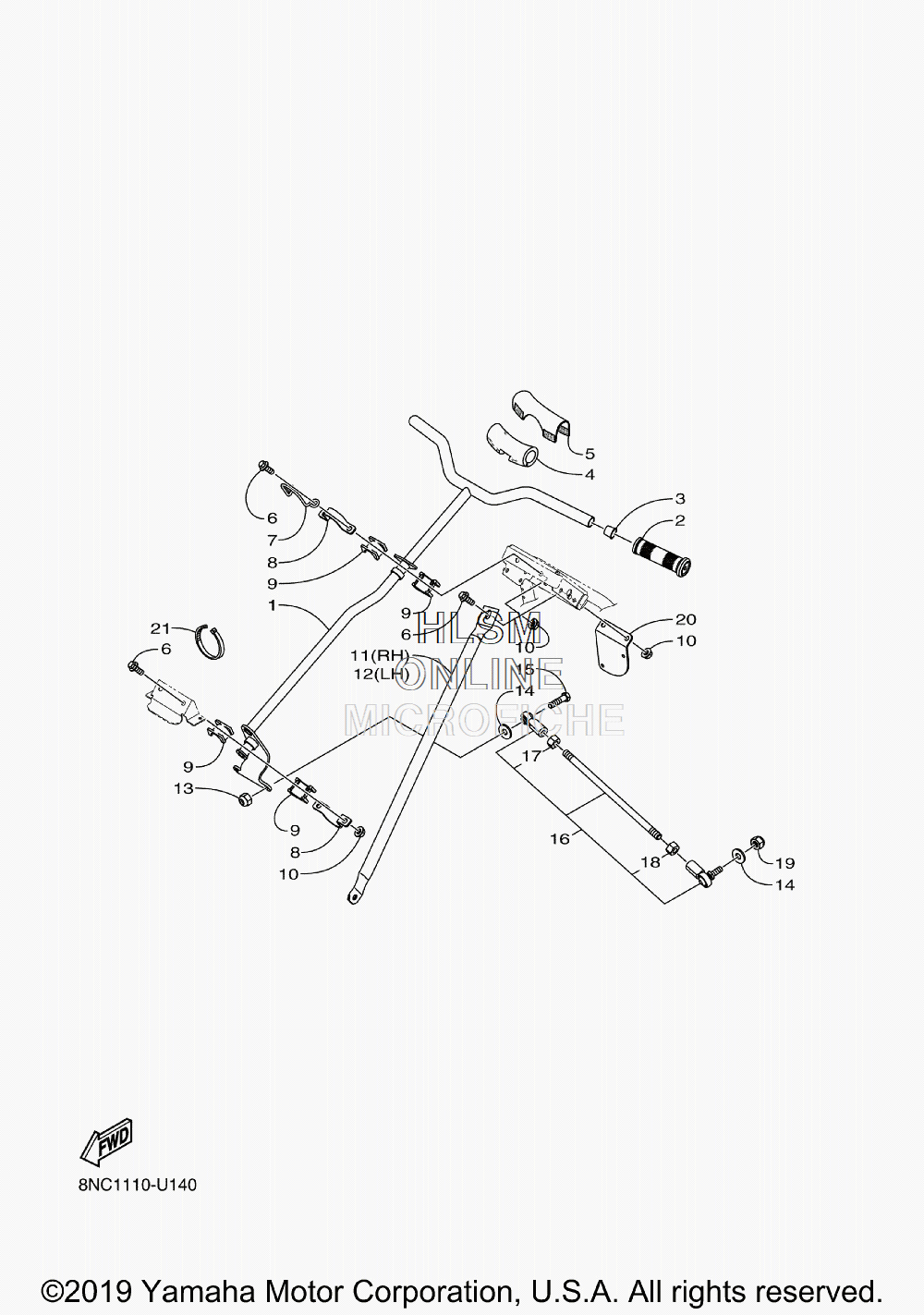

HANDLEBAR ASSY W/ STEERING ASSY для Yamaha SNOSCOOT ES - 2019 года выпуска
-
№АртикулНазвание
-
18ML-F3811-00-00 COLUMN, STEERINGCOLUMN, STEERING
-
28JM-F6241-10-00 GRIPGRIP
-
38JR-F3856-10-00 NUTNUT
-
48JM-F3817-00-00 PAD, STEERINGPAD, STEERING
-
58JM-F3818-00-00 COVER, STEERING (VYRS4 - YELLOWISH RED)COVER, STEERING (VYRS4 - YELLOWISH RED)
-
58JM-F3818-10-00 COVER, STEERING (DPBSE - PURPLISH BLUE)COVER, STEERING (DPBSE - PURPLISH BLUE)
-
68MV-RA106-00-00 BOLT, FLANGEBOLT, FLANGE
-
78MV-F3389-00-00 GUIDE, CABLEGUIDE, CABLE
-
88JM-F3872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
98JM-F3812-00-00 BEARING, STEERINGBEARING, STEERING
-
108JP-RA357-00-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
118MV-F119E-00-00 PIPE, CROSS, 7PIPE, CROSS, 7
-
128MV-F119F-00-00 PIPE CROSS 8PIPE CROSS 8
-
138JM-RA303-00-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
148JM-RA403-00-00 WASHER, PLAINWASHER, PLAIN
-
158JM-RA104-00-00 BOLT, FLANGEBOLT, FLANGE
-
168JM-F3830-00-00 TIE ROD ASSYTIE ROD ASSY
-
178JM-RA307-00-00 ...NUT, HEXAGON (LEFT HAND THREAD)...NUT, HEXAGON (LEFT HAND THREAD)
-
188JM-RA308-00-00 ...NUT, HEXAGON (RIGHT HAND THREAD)...NUT, HEXAGON (RIGHT HAND THREAD)
-
198JM-RA306-00-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
208ML-F4491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
218JM-RAB01-00-00 CLAMP, 2 (8 INCH) (UN)CLAMP, 2 (8 INCH) (UN)
