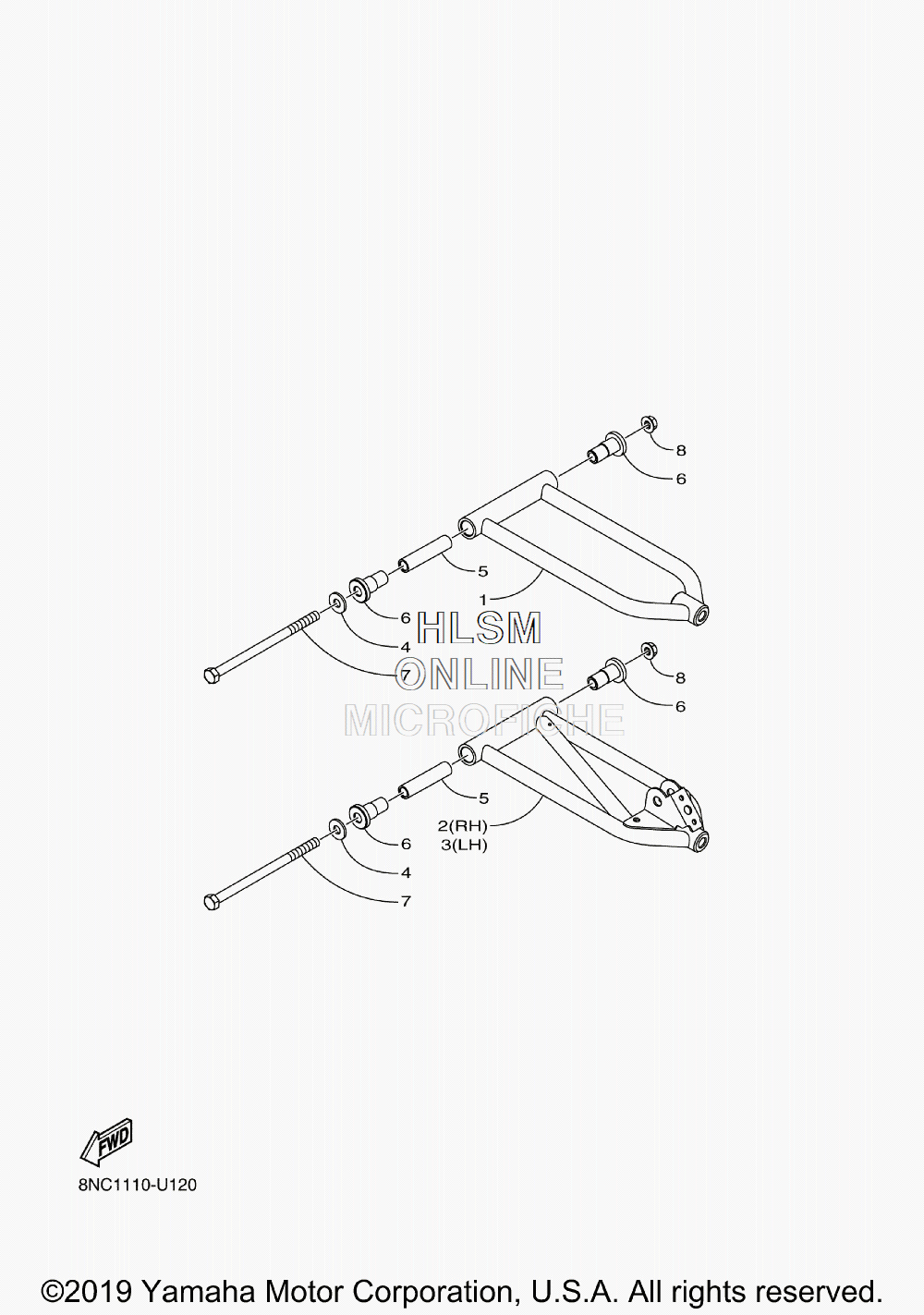

SUSPENSION - FRONT ARM для Yamaha SNOSCOOT ES - 2019 года выпуска
-
№АртикулНазвание
-
18MV-F354A-00-00 ARM, FRONT UPPER (RH/LH)ARM, FRONT UPPER (RH/LH)
-
28MV-F358A-00-00 ARM, FRONT LOWER (RIGHT HAND)ARM, FRONT LOWER (RIGHT HAND)
-
38MV-F357A-00-00 ARM, FRONT LOWER (LEFT HAND)ARM, FRONT LOWER (LEFT HAND)
-
48JM-RA405-00-00 WASHER, PLAINWASHER, PLAIN
-
58MV-RA703-00-00 COLLARCOLLAR
-
68JM-F3583-00-00 BUSHBUSH
-
78JM-RA107-10-00 BOLT, HEXAGONBOLT, HEXAGON
-
88JP-RA358-00-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
