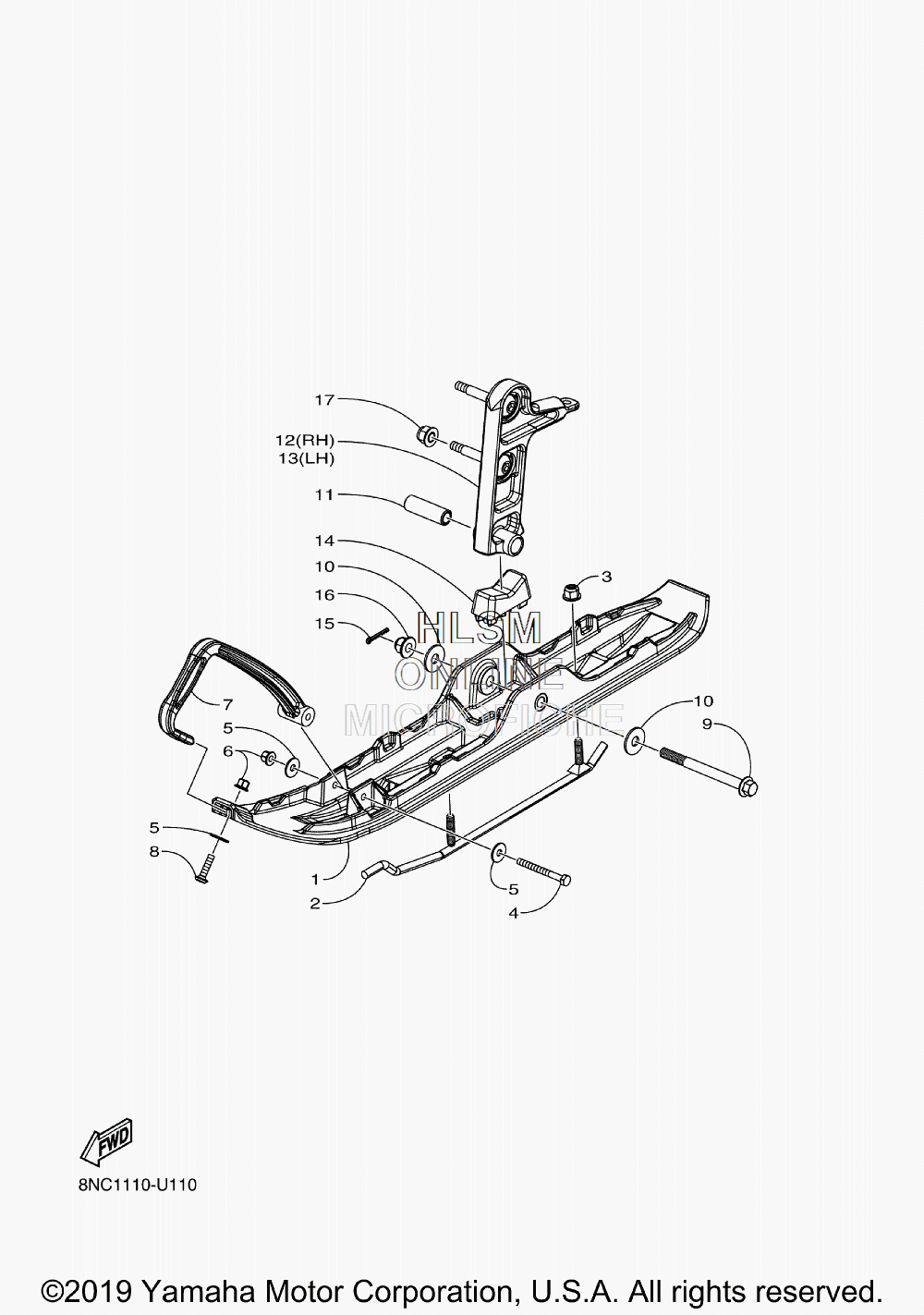

SUSPENSION - FRONT W/ SKI ASSY для Yamaha SNOSCOOT ES - 2019 года выпуска
-
№АртикулНазвание
-
18ML-F3710-00-00 SKI COMP. 1 (VYRS4 - YELLOWISH RED)SKI COMP. 1 (VYRS4 - YELLOWISH RED)
-
18ML-F3710-10-00 SKI COMP. 1 (DPBSE - PURPLISH BLUE)SKI COMP. 1 (DPBSE - PURPLISH BLUE)
-
28ML-F3731-00-00 RUNNER 1RUNNER 1
-
38KC-RA358-00-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
48ML-F3756-00-00 BOLT, REINFORCEMENT HEAD 2BOLT, REINFORCEMENT HEAD 2
-
58ML-F3737-00-00 WASHER 1WASHER 1
-
68ML-F3778-00-00 NUTNUT
-
78ML-F3712-40-00 REINFORCEMENT, HEAD (VYRS4 - YELLOWISH RED)REINFORCEMENT, HEAD (VYRS4 - YELLOWISH RED)
-
78ML-F3712-30-00 REINFORCEMENT, HEAD (DPBSE - PURPLISH BLUE)REINFORCEMENT, HEAD (DPBSE - PURPLISH BLUE)
-
88ML-F3755-00-00 BOLT, REINFORCEMENT HEAD 1BOLT, REINFORCEMENT HEAD 1
-
98ML-RA100-00-00 BOLT, FLANGEBOLT, FLANGE
-
1090201-10043-00 WASHER, PLATEWASHER, PLATE
-
118ML-RA702-00-00 COLLARCOLLAR
-
128MV-F3521-10-00 KNUCKLE, STEERING 2 (RIGHT HAND)KNUCKLE, STEERING 2 (RIGHT HAND)
-
138MV-F3511-10-00 KNUCKLE, STEERING 1 (LEFT HAND)KNUCKLE, STEERING 1 (LEFT HAND)
-
148ML-F3743-00-00 STOPPER 1STOPPER 1
-
158JP-RAK01-00-00 PIN, 1PIN, 1
-
168ML-RA309-00-00 NUTNUT
-
178MV-RA358-00-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
