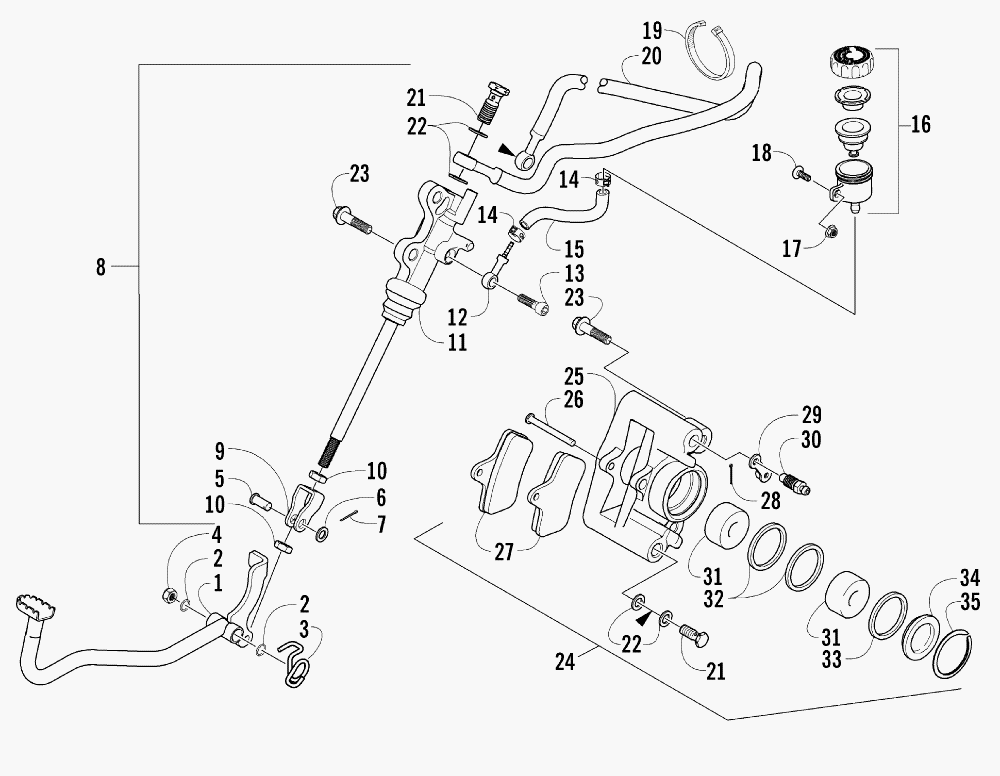

AUXILIARY BRAKE ASSEMBLY для Arctic Cat 650 H1 4X4 BLACK LE [A2005IBS4BUSO] - 2005 года выпуска
-
№АртикулНазвание
-
10502-656 LEVER, BRAKELEVER, BRAKE
-
21602-213 O-RINGO-RING
-
30502-713 SPRING, BRAKE LEVERSPRING, BRAKE LEVER
-
48422-002 NUTNUT
-
50402-575 PIN, CLEVISPIN, CLEVIS
-
60402-583 WASHERWASHER
-
70402-584 PIN, COTTERPIN, COTTER
-
80502-665 BRAKE ASSEMBLY (INC. 9-16)BRAKE ASSEMBLY (INC. 9-16)
-
90402-580 ...ACTUATOR, PUSH ROD...ACTUATOR, PUSH ROD
-
100402-592 ...NUT, JAM...NUT, JAM
-
121402-277 ...FITTING, BANJO...FITTING, BANJO
-
131402-278 ...BOLT, BANJO FITTING...BOLT, BANJO FITTING
-
140423-525 ...CLAMP, HOSE...CLAMP, HOSE
-
151402-266 ...HOSE, BRAKE RESERVOIR...HOSE, BRAKE RESERVOIR
-
161402-257 ...RESERVOIR, BRAKE...RESERVOIR, BRAKE
-
178424-602 NUT, FLANGEDNUT, FLANGED
-
188476-616 SCREW, MACHINESCREW, MACHINE
-
190123-788 CABLE TIE - 7.5 IN.CABLE TIE - 7.5 IN.
-
201402-200 HOSE, BRAKEHOSE, BRAKE
-
210423-413 BOLT, BANJO FITTINGBOLT, BANJO FITTING
-
220423-178 WASHER, CRUSHWASHER, CRUSH
-
238408-825 SCREW, CAPSCREW, CAP
-
240502-457 CALIPER, BRAKE (INC. 25-35)CALIPER, BRAKE (INC. 25-35)
-
260402-495 ...PIN, BRAKE CALIPER...PIN, BRAKE CALIPER
-
271402-126 ...PAD, BRAKE...PAD, BRAKE
-
280423-495 ...PIN, COTTER...PIN, COTTER
-
290402-493 ...CAP, BLEED VALVE...CAP, BLEED VALVE
-
301402-123 ...VALVE, BLEED...VALVE, BLEED
-
311402-125 ...PISTON...PISTON
-
320402-980 ...O-RING, BRAKE CALIPER...O-RING, BRAKE CALIPER
