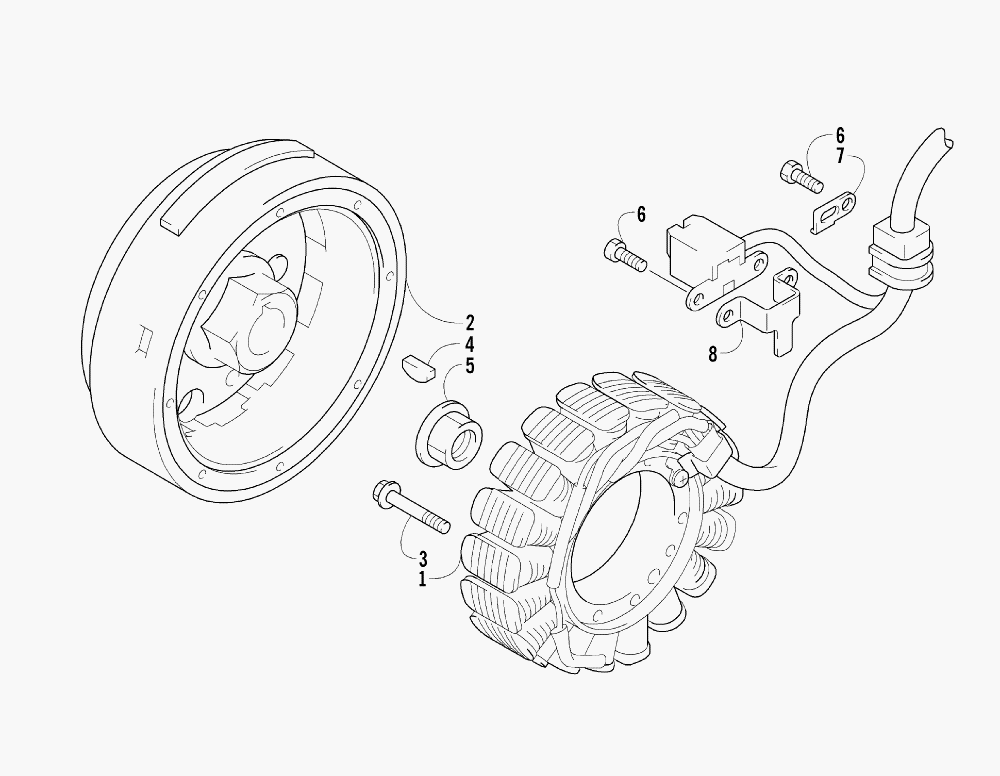

MAGNETO ASSEMBLY для Arctic Cat 650 H1 4X4 BLACK LE [A2005IBS4BUSO] - 2005 года выпуска
-
№АртикулНазвание
-
10802-036 ROTOR/FLYWHEELROTOR/FLYWHEEL
-
20802-037 STATOR - ASSEMBLYSTATOR - ASSEMBLY
-
30826-102 SCREW, MACHINESCREW, MACHINE
-
40829-012 KEYKEY
-
50827-014 NUTNUT
-
68470-510 SCREW, MACHINESCREW, MACHINE
-
70802-015 CLAMP - NO. 1CLAMP - NO. 1
-
80802-016 CLAMP - NO. 2CLAMP - NO. 2
