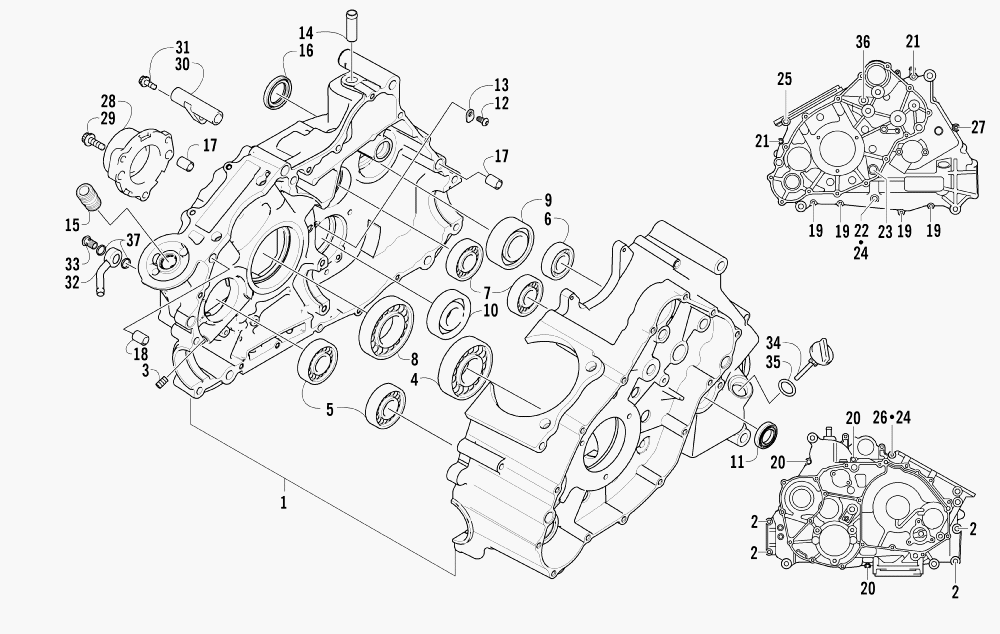

CRANKCASE ASSEMBLY для Arctic Cat 650 H1 4X4 BLACK LE [A2005IBS4BUSO] - 2005 года выпуска
-
№АртикулНазвание
-
10801-056 CRANKCASE ASSEMBLY (INC. 2-16)CRANKCASE ASSEMBLY (INC. 2-16)
-
28412-850 ...SCREW, CAP...SCREW, CAP
-
30801-002 ...PLUG...PLUG
-
40832-003 ...BEARING...BEARING
-
50832-005 ...BEARING...BEARING
-
60832-013 ...BEARING...BEARING
-
70832-014 ...BEARING...BEARING
-
80832-002 ...BEARING...BEARING
-
90832-012 ...BEARING...BEARING
-
100832-015 ...BEARING...BEARING
-
110822-052 ...SEAL, COUNTERSHAFT...SEAL, COUNTERSHAFT
-
120826-100 ...SCREW, CAP...SCREW, CAP
-
130822-010 ...RETAINER, BEARING...RETAINER, BEARING
-
140801-028 ...PIPE, BREATHER...PIPE, BREATHER
-
150812-008 ...UNION, OIL FILTER...UNION, OIL FILTER
-
160830-035 ...SEAL, DRIVESHAFT...SEAL, DRIVESHAFT
-
170829-002 PIN, DOWELPIN, DOWEL
-
180829-003 PIN, DOWELPIN, DOWEL
-
198468-645 SCREW, MACHINESCREW, MACHINE
-
208468-655 SCREW, MACHINESCREW, MACHINE
-
218468-675 SCREW, MACHINESCREW, MACHINE
-
228412-860 SCREW, CAPSCREW, CAP
-
230826-017 SCREW, CAPSCREW, CAP
-
240830-008 GASKETGASKET
-
250826-019 SCREW, CAPSCREW, CAP
-
260826-018 SCREW, CAPSCREW, CAP
-
278468-695 SCREW, MACHINESCREW, MACHINE
-
280801-006 HOUSING, SECONDARY SHAFT BEARINGHOUSING, SECONDARY SHAFT BEARING
-
290826-105 BOLTBOLT
-
300801-069 PIPE, BREATHERPIPE, BREATHER
-
310826-038 BOLT, BREATHER PIPEBOLT, BREATHER PIPE
-
320812-028 FITTING, OIL COOLERFITTING, OIL COOLER
-
330812-025 BOLT, OIL COOLER FITTINGBOLT, OIL COOLER FITTING
-
340801-005 STICK, OIL LEVELSTICK, OIL LEVEL
-
350830-010 O-RING, OIL LEVEL STICKO-RING, OIL LEVEL STICK
-
368468-680 SCREW, MACHINESCREW, MACHINE
-
370812-026 GASKETGASKET
