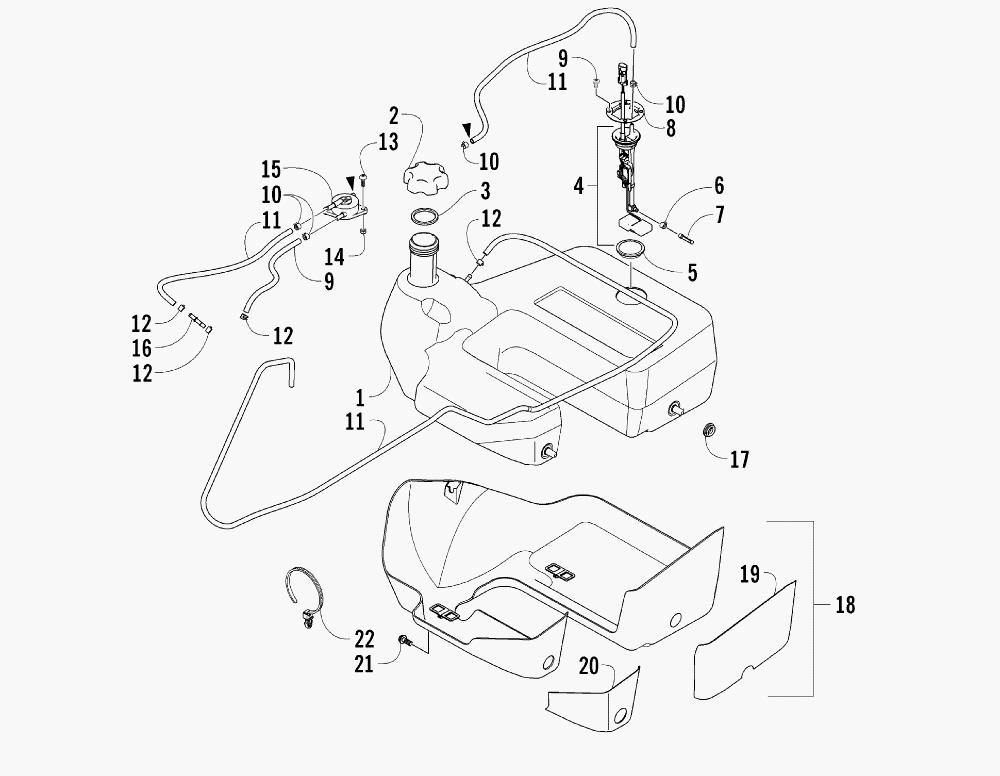

GAS TANK ASSEMBLY для Arctic Cat 650 H1 4X4 BLACK LE [A2005IBS4BUSO] - 2005 года выпуска
-
№АртикулНазвание
-
10570-102 TANK, GAS - ASSEMBLY (INC. 2-9)TANK, GAS - ASSEMBLY (INC. 2-9)
-
20470-438 ...CAP, GAS TANK (INC. 3)...CAP, GAS TANK (INC. 3)
-
30109-733 ......GASKET, TANK CAP......GASKET, TANK CAP
-
40570-112 ...SENSOR, FUEL LEVEL (INC. 5-7)...SENSOR, FUEL LEVEL (INC. 5-7)
-
50470-521 ......SEAL, FUEL LEVEL SENSOR......SEAL, FUEL LEVEL SENSOR
-
60423-603 ......CLAMP, HOSE......CLAMP, HOSE
-
70470-475 ......FILTER, FUEL......FILTER, FUEL
-
80470-546 ...PLATE, MOUNTING - FUEL LEVEL SENSOR...PLATE, MOUNTING - FUEL LEVEL SENSOR
-
91623-158 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
100423-461 CLAMP, HOSECLAMP, HOSE
-
110410-070 HOSE, GASLINE - 25 FTHOSE, GASLINE - 25 FT
-
121623-233 CLAMP, HOSECLAMP, HOSE
-
138476-620 SCREW, MACHINESCREW, MACHINE
-
140623-038 NUT, LOCKNUT, LOCK
-
150470-519 PUMP, FUELPUMP, FUEL
-
160470-527 FITTING, STRAIGHTFITTING, STRAIGHT
-
170423-460 GROMMETGROMMET
-
180570-081 SHIELD, GAS TANK - ASSEMBLY (INC. 19-20)SHIELD, GAS TANK - ASSEMBLY (INC. 19-20)
-
190470-499 ...SHIELD, HEAT...SHIELD, HEAT
-
200470-498 ...SHIELD, HEAT...SHIELD, HEAT
-
218408-816 SCREW, CAPSCREW, CAP
-
220423-075 CABLE TIE - PUSH-MOUNTCABLE TIE - PUSH-MOUNT
