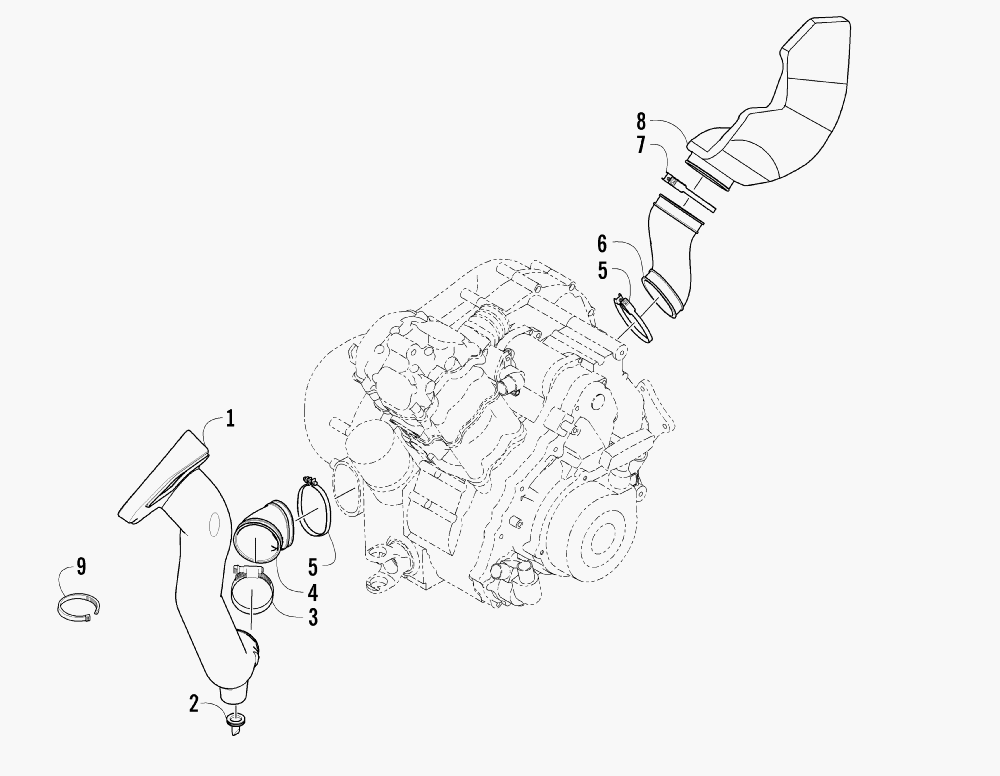

CASE/BELT COOLING ASSEMBLY для Arctic Cat 650 H1 4X4 BLACK LE [A2005IBS4BUSO] - 2005 года выпуска
-
№АртикулНазвание
-
10413-115 DUCT, BELT COOLING - FRONTDUCT, BELT COOLING - FRONT
-
20470-442 VALVE, DRAINVALVE, DRAIN
-
30423-578 CLAMP, BOOTCLAMP, BOOT
-
40413-114 BOOT, DUCT - FRONTBOOT, DUCT - FRONT
-
50423-539 CLAMP, BOOTCLAMP, BOOT
-
60413-097 BOOT, DUCT - REARBOOT, DUCT - REAR
-
70423-554 CLAMP, BOOTCLAMP, BOOT
-
80413-119 DUCT, BELT COOLING - REARDUCT, BELT COOLING - REAR
-
90123-903 CABLE TIE - 11.5 IN.CABLE TIE - 11.5 IN.
