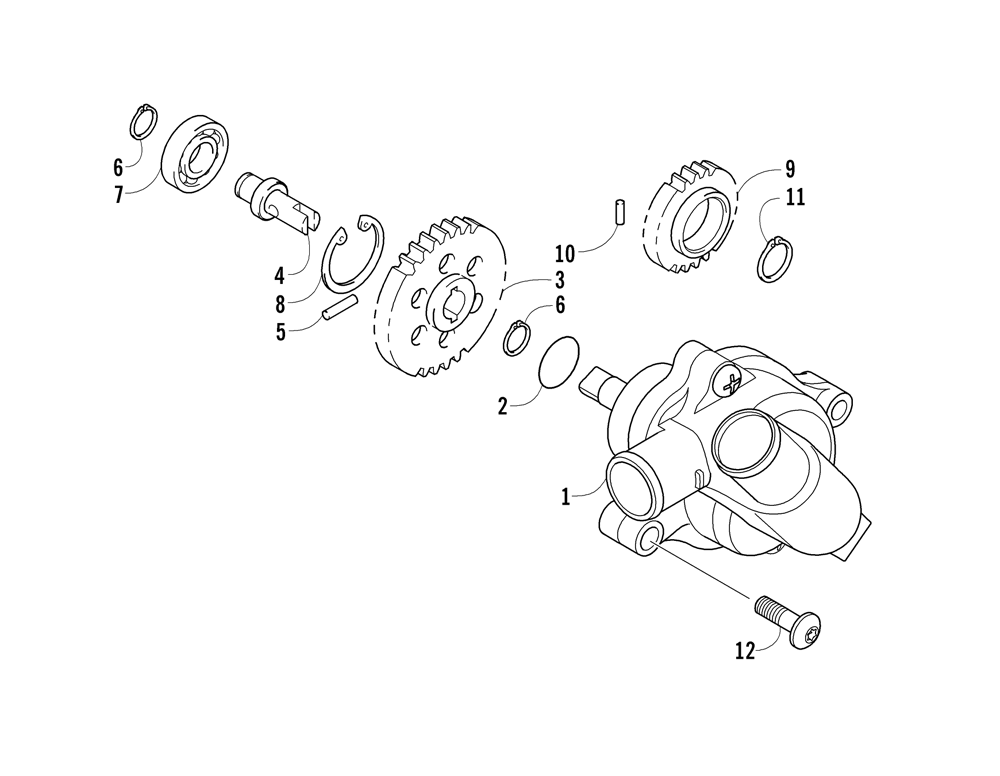

WATER PUMP ASSEMBLY для Arctic Cat 650 H1 4X4 BLACK LE [A2005IBS4BUSO] - 2005 года выпуска
-
№АртикулНазвание
-
10813-001 PUMP, WATER - ASSEMBLYPUMP, WATER - ASSEMBLY
-
20830-029 ...O-RING...O-RING
-
30813-004 GEAR, DRIVENGEAR, DRIVEN
-
40813-005 SHAFT, DRIVEN GEARSHAFT, DRIVEN GEAR
-
50829-009 PIN, DRIVEN GEARPIN, DRIVEN GEAR
-
60831-002 CIRCLIP, DRIVEN GEARCIRCLIP, DRIVEN GEAR
-
70832-008 BEARING, SHAFTBEARING, SHAFT
-
80831-004 CIRCLIP, SHAFT BEARINGCIRCLIP, SHAFT BEARING
-
90811-003 GEAR, WATER PUMP DRIVEGEAR, WATER PUMP DRIVE
-
100829-007 PIN, DRIVE GEARPIN, DRIVE GEAR
-
110831-005 CIRCLIP, DRIVE GEARCIRCLIP, DRIVE GEAR
-
128468-665 SCREW, MACHINESCREW, MACHINE
