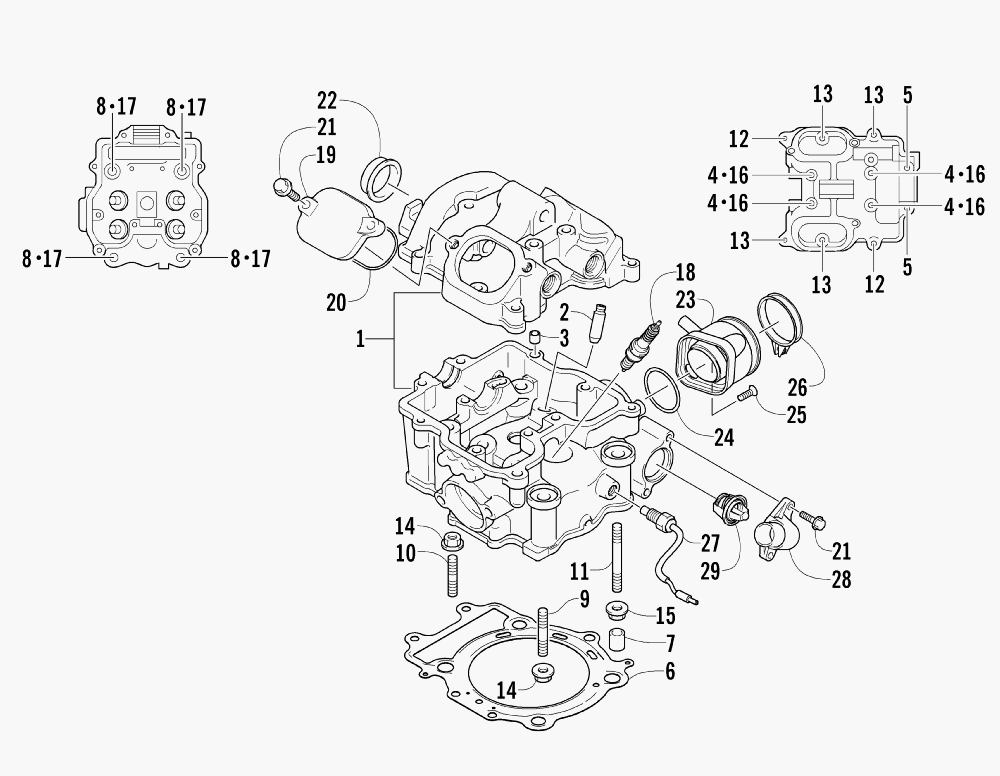

CYLINDER HEAD ASSEMBLY для Arctic Cat 650 H1 4X4 BLACK LE [A2005IBS4BUSO] - 2005 года выпуска
-
№АртикулНазвание
-
10808-047 HEAD, CYLINDER - ASSEMBLY (INC. 2-4)HEAD, CYLINDER - ASSEMBLY (INC. 2-4)
-
20808-002 ...GUIDE, VALVE...GUIDE, VALVE
-
30829-001 ...DOWEL, SLEEVE...DOWEL, SLEEVE
-
40826-001 ...SCREW, CAP...SCREW, CAP
-
50826-002 SCREW, CAPSCREW, CAP
-
60830-124 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
70829-002 PIN, DOWELPIN, DOWEL
-
80808-104 SCREW, CAPSCREW, CAP
-
90827-030 BOLT, STUDBOLT, STUD
-
100827-002 BOLT, STUDBOLT, STUD
-
110827-031 BOLT, STUDBOLT, STUD
-
120826-005 SCREW, CAPSCREW, CAP
-
130826-006 SCREW, CAPSCREW, CAP
-
148424-604 NUTNUT
-
158424-804 NUTNUT
-
160830-107 GASKET - SEAL, FASTENERGASKET - SEAL, FASTENER
-
170830-003 WASHER, CRUSHWASHER, CRUSH
-
180217-727 SPARK PLUG (RG6YC)SPARK PLUG (RG6YC)
-
190808-003 CAP, INSPECTIONCAP, INSPECTION
-
200830-004 O-RINGO-RING
-
210826-007 SCREW, CAPSCREW, CAP
-
220808-077 PLUG, CYLINDER HEADPLUG, CYLINDER HEAD
-
230570-101 PIPE, INTAKE - ASSEMBLYPIPE, INTAKE - ASSEMBLY
-
240830-090 O-RINGO-RING
-
250826-008 SCREW, MACHINESCREW, MACHINE
-
261623-180 CLAMP, INTERCOOLERCLAMP, INTERCOOLER
-
270808-007 SWITCH, WATER TEMPERATURE - ASSEMBLYSWITCH, WATER TEMPERATURE - ASSEMBLY
-
280808-008 COVER, THERMOSTATCOVER, THERMOSTAT
-
290808-078 THERMOSTATTHERMOSTAT
