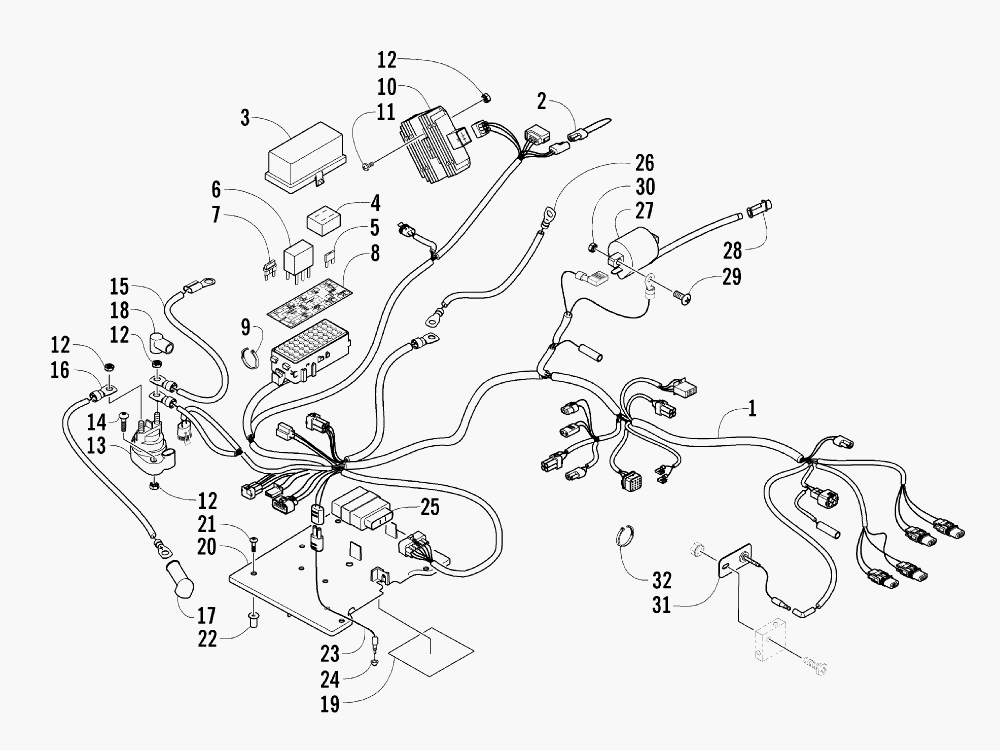

WIRING HARNESS ASSEMBLY для Arctic Cat 650 H1 4X4 BLACK LE [A2005IBS4BUSO] - 2005 года выпуска
-
№АртикулНазвание
-
10486-160 HARNESS, MAIN (INC. 2-8 AND TWO NO. 9)HARNESS, MAIN (INC. 2-8 AND TWO NO. 9)
-
20486-164 ...TETHER, ACCESSORY CONNECTOR...TETHER, ACCESSORY CONNECTOR
-
30530-008 ...COVER, FUSE BLOCK...COVER, FUSE BLOCK
-
40430-037 ...HOLDER, FUSE...HOLDER, FUSE
-
50430-034 ...DIODE...DIODE
-
60430-033 ...RELAY...RELAY
-
70430-032 ...FUSE - 10 AMP...FUSE - 10 AMP
-
70430-031 ...FUSE - 15 AMP...FUSE - 15 AMP
-
70430-030 ...FUSE - 30 AMP...FUSE - 30 AMP
-
80411-828 ...DECAL, FUSE BLOCK...DECAL, FUSE BLOCK
-
90123-788 ...CABLE TIE - 7.5 IN....CABLE TIE - 7.5 IN.
-
100824-020 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
118476-630 SCREW, MACHINESCREW, MACHINE
-
120623-038 NUT W/WASHERNUT W/WASHER
-
130445-036 SOLENOIDSOLENOID
-
148476-625 SCREW, MACHINESCREW, MACHINE
-
150445-044 CABLE, SOLENOID/STARTERCABLE, SOLENOID/STARTER
-
160445-046 CABLE, BATTERY/SOLENOID (INC. 17)CABLE, BATTERY/SOLENOID (INC. 17)
-
170645-019 ...BOOT, TERMINAL...BOOT, TERMINAL
-
180645-327 BOOT, TERMINALBOOT, TERMINAL
-
190412-291 SHIELD, HEATSHIELD, HEAT
-
201406-787 TRAY, ELECTRICALTRAY, ELECTRICAL
-
210623-121 SCREW, MACHINESCREW, MACHINE
-
220123-010 NUT, EXPANSIONNUT, EXPANSION
-
230409-009 SWITCH, BRAKE - ASSEMBLYSWITCH, BRAKE - ASSEMBLY
-
240402-991 RETAINER, SWITCHRETAINER, SWITCH
-
250824-034 CDI UNITCDI UNIT
-
260445-045 CABLE, BATTERY/GROUNDCABLE, BATTERY/GROUND
-
270824-022 COIL, IGNITION - ASSEMBLYCOIL, IGNITION - ASSEMBLY
-
280824-021 CAP, SPARK PLUGCAP, SPARK PLUG
-
298476-620 SCREW, MACHINESCREW, MACHINE
-
308424-602 NUT, HEX - FLANGENUT, HEX - FLANGE
-
310509-011 DIODE ASSEMBLYDIODE ASSEMBLY
-
320123-903 CABLE TIE - 11.5 IN.CABLE TIE - 11.5 IN.
