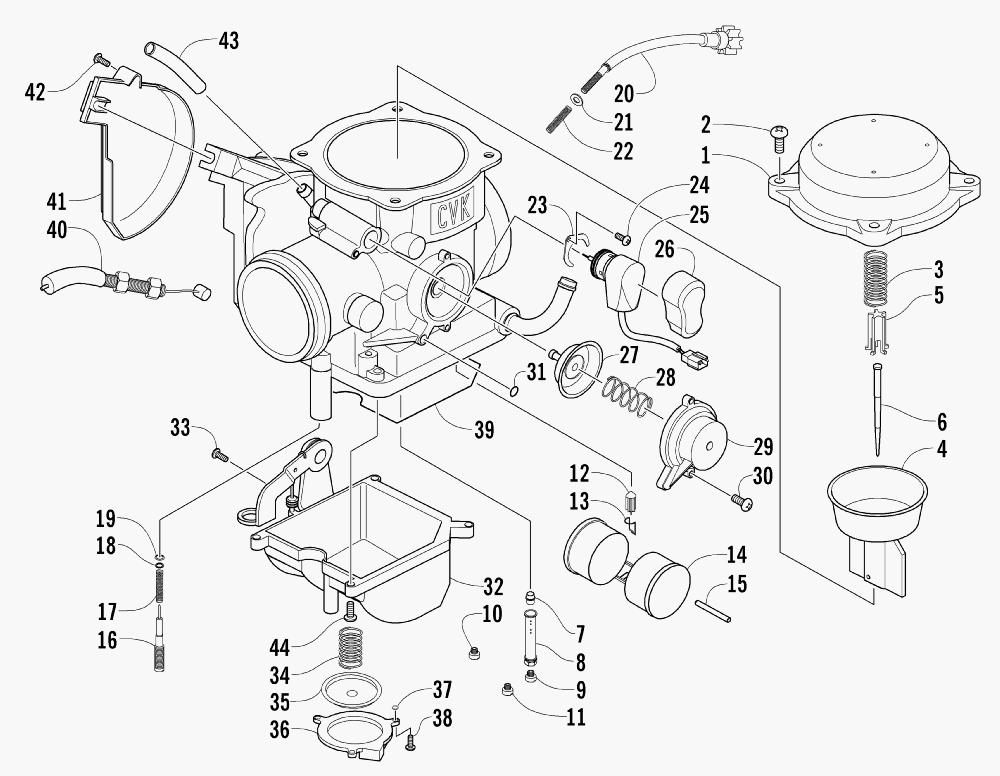

CARBURETOR для Arctic Cat 650 H1 4X4 BLACK LE [A2005IBS4BUSO] - 2005 года выпуска
-
№АртикулНазвание
-
-0470-482 CARBURETOR ASSY - CVK40-AECARBURETOR ASSY - CVK40-AE
-
15507-186 COVER, TOPCOVER, TOP
-
25507-187 SCREW, TOP COVERSCREW, TOP COVER
-
35507-188 SPRINGSPRING
-
45507-189 PISTON, VACUUMPISTON, VACUUM
-
55507-190 SEAT, SPRINGSEAT, SPRING
-
65507-191 JET NEEDLEJET NEEDLE
-
75507-192 NEEDLE JETNEEDLE JET
-
85507-193 HOLDER, NEEDLE JETHOLDER, NEEDLE JET
-
95507-076 MAIN JET - 138MAIN JET - 138
-
95507-072 MAIN JET - 125 (OPTIONAL)MAIN JET - 125 (OPTIONAL)
-
95507-073 MAIN JET - 128 (OPTIONAL)MAIN JET - 128 (OPTIONAL)
-
95507-074 MAIN JET - 130 (OPTIONAL)MAIN JET - 130 (OPTIONAL)
-
95507-075 MAIN JET - 132 (OPTIONAL)MAIN JET - 132 (OPTIONAL)
-
95507-057 MAIN JET - 135 (OPTIONAL)MAIN JET - 135 (OPTIONAL)
-
95507-043 MAIN JET - 142 (OPTIONAL)MAIN JET - 142 (OPTIONAL)
-
95507-042 MAIN JET - 145 (OPTIONAL)MAIN JET - 145 (OPTIONAL)
-
95507-041 MAIN JET - 148 (OPTIONAL)MAIN JET - 148 (OPTIONAL)
-
95507-086 MAIN JET - 148 (OPTIONAL)MAIN JET - 148 (OPTIONAL)
-
95507-009 MAIN JET - 150 (OPTIONAL)MAIN JET - 150 (OPTIONAL)
-
95507-077 MAIN JET - 152 (OPTIONAL)MAIN JET - 152 (OPTIONAL)
-
95507-078 MAIN JET - 155 (OPTIONAL)MAIN JET - 155 (OPTIONAL)
-
105507-194 SLOW JETSLOW JET
-
115507-112 STARTER JET - 85STARTER JET - 85
-
125507-183 VALVE, FLOAT - SET (INC. 13)VALVE, FLOAT - SET (INC. 13)
-
145507-039 FLOAT SET (INC. 15)FLOAT SET (INC. 15)
-
165507-111 SCREW, PILOT AIR - SET (INC. 17-19)SCREW, PILOT AIR - SET (INC. 17-19)
-
205507-027 SCREW, IDLE ADJUSTSCREW, IDLE ADJUST
-
215507-028 WASHERWASHER
-
225507-029 SPRINGSPRING
-
235507-115 PLATEPLATE
-
245507-117 SCREWSCREW
-
255507-196 CHOKE, ELECTRICCHOKE, ELECTRIC
-
265507-114 COVER, ELECTRIC CHOKECOVER, ELECTRIC CHOKE
-
275507-116 DIAPHRAGM ASSEMBLYDIAPHRAGM ASSEMBLY
-
285507-104 SPRINGSPRING
-
295507-105 COVERCOVER
-
305507-106 SCREWSCREW
-
315507-102 U-RINGU-RING
-
325507-200 CHAMBER, FLOAT - ASSEMBLY (INC. 33-39)CHAMBER, FLOAT - ASSEMBLY (INC. 33-39)
-
335507-195 ...SCREW, DRAIN...SCREW, DRAIN
-
345507-032 ...SPRING...SPRING
-
355507-197 ...DIAPHRAGM ASSEMBLY - PUMP HOUSING...DIAPHRAGM ASSEMBLY - PUMP HOUSING
-
365507-198 ...HOUSING, PUMP...HOUSING, PUMP
-
375507-034 ...U-RING...U-RING
-
385507-035 ...SCREW...SCREW
-
395507-067 ...O-RING, FLOAT CHAMBER...O-RING, FLOAT CHAMBER
-
400487-021 CABLE, THROTTLECABLE, THROTTLE
-
415507-036 COVERCOVER
-
425507-037 SCREWSCREW
-
430410-056 HOSE, VENTHOSE, VENT
-
445507-017 SCREWSCREW
