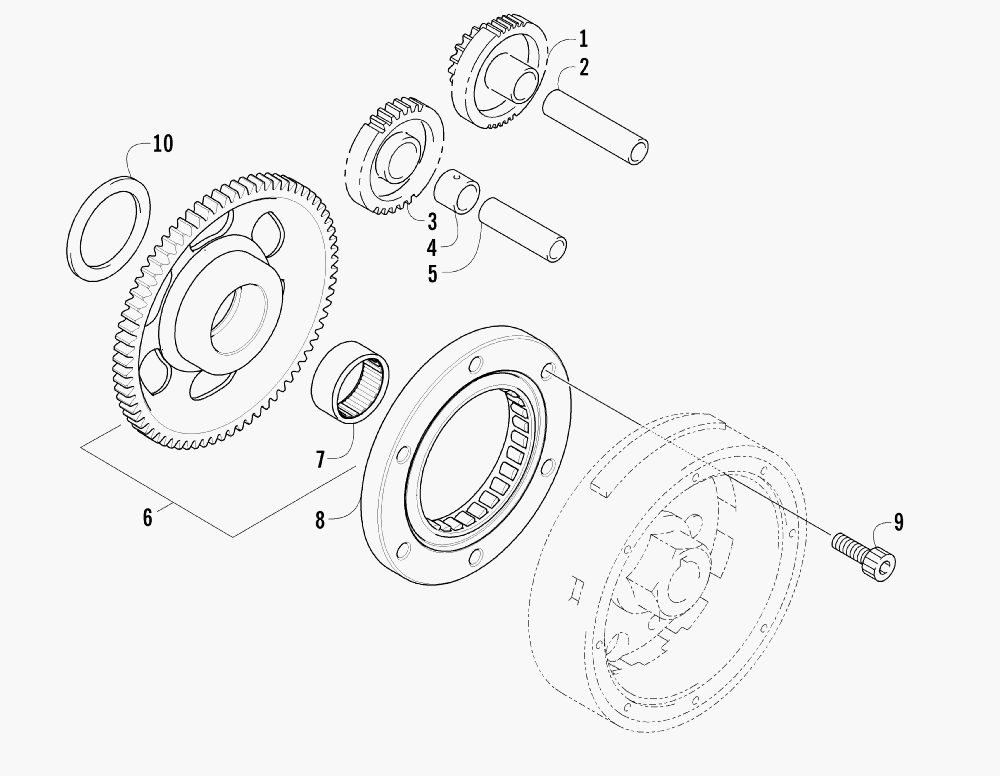

STARTER CLUTCH ASSEMBLY для Arctic Cat 650 H1 4X4 BLACK LE [A2005IBS4BUSO] - 2005 года выпуска
-
№АртикулНазвание
-
10815-001 GEAR, STARTER IDLER - NO. 1GEAR, STARTER IDLER - NO. 1
-
20829-031 PINPIN
-
30815-002 GEAR, STARTER IDLER - NO. 2GEAR, STARTER IDLER - NO. 2
-
40815-003 SPACER, STARTER IDLER GEAR NO. 2SPACER, STARTER IDLER GEAR NO. 2
-
50829-032 PINPIN
-
60815-004 GEAR STARTER CLUTCH (INC. 7)GEAR STARTER CLUTCH (INC. 7)
-
70832-004 ...BEARING...BEARING
-
80802-035 CLUTCH, STARTERCLUTCH, STARTER
-
90826-069 SCREW, MACHINESCREW, MACHINE
-
100828-002 WASHERWASHER
