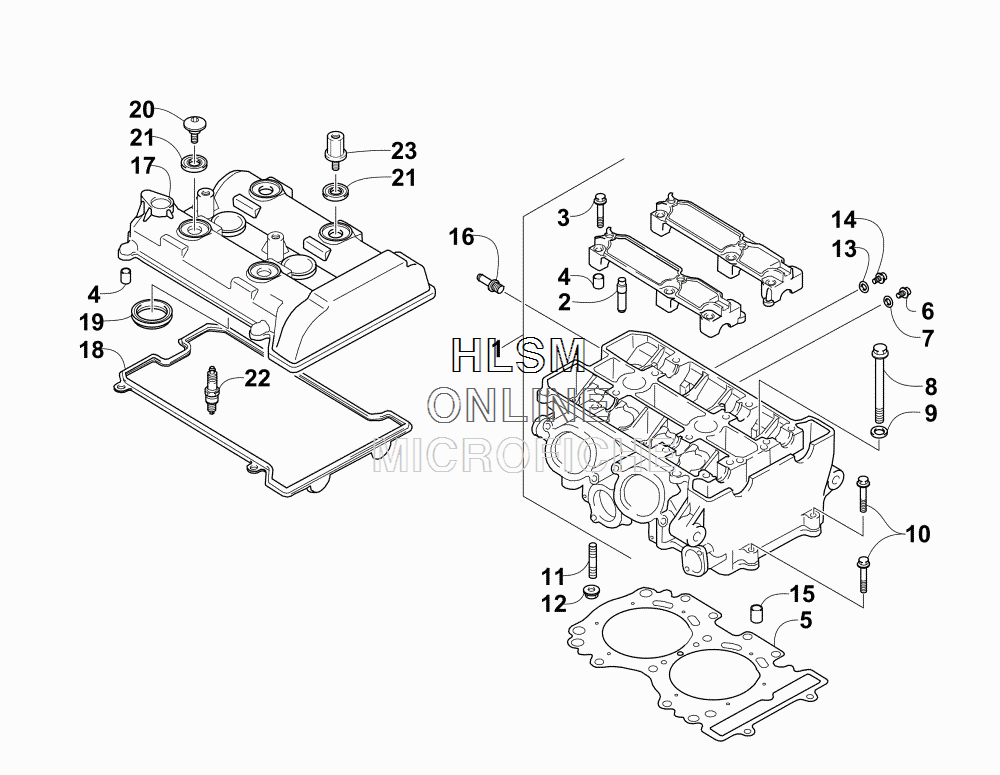

CYLINDER HEAD ASSEMBLY для Arctic Cat M 9000 SNO PRO LTD 162 (ORANGE) (EARLY BUILD) [S2015M9NLEUSO] - 2015 года выпуска
-
№АртикулНазвание
-
13007-853 HEAD, CYLINDER - ASSEMBLY (INC. 2-3 AND FOUR NO. 4)HEAD, CYLINDER - ASSEMBLY (INC. 2-3 AND FOUR NO. 4)
-
23403-056 ...GUIDE,VALVE...GUIDE,VALVE
-
33007-070 ...BOLT,CAMSHAFT HOUSING(6X39)...BOLT,CAMSHAFT HOUSING(6X39)
-
43423-043 ...PIN,ALIGNMENT,8MM...PIN,ALIGNMENT,8MM
-
53007-072 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
63006-598 BOLT,AIR RELEASEBOLT,AIR RELEASE
-
73003-290 GASKET,CHECK VALVE,6MMGASKET,CHECK VALVE,6MM
-
83007-073 BOLT,CYLINDER HEAD (10X105)BOLT,CYLINDER HEAD (10X105)
-
93007-495 WASHER,CYLINDER HEAD BOLT(10.5X19X2)WASHER,CYLINDER HEAD BOLT(10.5X19X2)
-
103007-496 BOLT,CYL HEADBOLT,CYL HEAD
-
113007-074 BOLT,STUD (L:32)BOLT,STUD (L:32)
-
123007-390 NUT,INTER COOLERNUT,INTER COOLER
-
133003-290 GASKET,CHECK VALVE,6MMGASKET,CHECK VALVE,6MM
-
143007-497 PLUG,OIL GALLERYPLUG,OIL GALLERY
-
153423-088 PIN, CYLINDER HEAD KNOCK (ALIGNMENT)PIN, CYLINDER HEAD KNOCK (ALIGNMENT)
-
163007-075 FITTING, UNION,WATER BYPASS HOSEFITTING, UNION,WATER BYPASS HOSE
-
173007-076 COVER, CYLINDER HEADCOVER, CYLINDER HEAD
-
183007-077 GASKET,CYLINDER HEAD COVERGASKET,CYLINDER HEAD COVER
-
193007-078 GASKET,CYLINDER HEAD COVERGASKET,CYLINDER HEAD COVER
-
203423-646 BOLT (7X17.5)BOLT (7X17.5)
-
213423-680 WASHERWASHER
-
220217-806 SPARK PLUG,MR8AI-9 (SOLID) (MR8AI-9)SPARK PLUG,MR8AI-9 (SOLID) (MR8AI-9)
-
233007-776 SCREW, INTERCOOLER SUPPORTSCREW, INTERCOOLER SUPPORT
