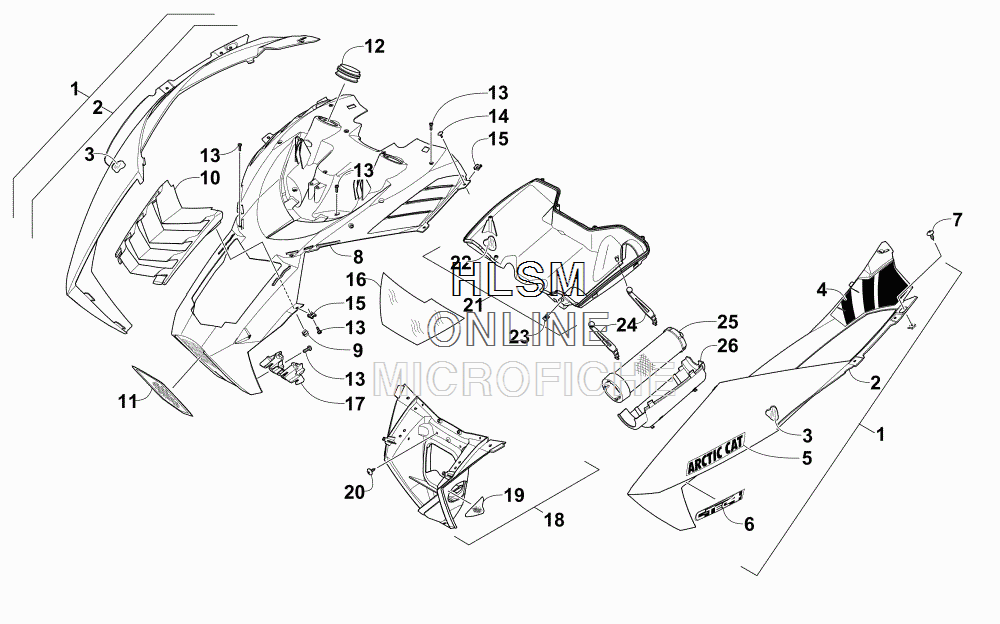

HOOD AND AIR INTAKE ASSEMBLY для Arctic Cat M 9000 SNO PRO LTD 162 (ORANGE) (EARLY BUILD) [S2015M9NLEUSO] - 2015 года выпуска
-
№АртикулНазвание
-
14718-274 HOOD W/ DECALS - RIGHT - (WHITE) (INC. 2-6)HOOD W/ DECALS - RIGHT - (WHITE) (INC. 2-6)
-
14718-275 HOOD W/ DECALS - LEFT - (WHITE) (INC. 2-6)HOOD W/ DECALS - LEFT - (WHITE) (INC. 2-6)
-
23718-620 ...HOOD W/O DECALS - RIGHT - (WHITE) (INC. 3)...HOOD W/O DECALS - RIGHT - (WHITE) (INC. 3)
-
23718-621 ...HOOD W/O DECALS - LEFT - (WHITE) (INC. 3)...HOOD W/O DECALS - LEFT - (WHITE) (INC. 3)
-
36606-420 ......FOIL, PROTECTIVE - RIGHT......FOIL, PROTECTIVE - RIGHT
-
36606-415 ......FOIL, PROTECTIVE - LEFT......FOIL, PROTECTIVE - LEFT
-
41621-600 ...DECAL, HOOD - RIGHT...DECAL, HOOD - RIGHT
-
41621-601 ...DECAL, HOOD - LEFT...DECAL, HOOD - LEFT
-
50621-732 ...DECAL, HOOD - "ARCTIC CAT"...DECAL, HOOD - "ARCTIC CAT"
-
60621-993 ...DECAL, HOOD - "C-TEC"...DECAL, HOOD - "C-TEC"
-
70623-784 SCREW,SELF TAP-TSTRH #10-12X3/4 TP A (BLACK)SCREW,SELF TAP-TSTRH #10-12X3/4 TP A (BLACK)
-
86606-276 PLENUM,AIR INTAKE-UPPER-TURBO-ROUTEDPLENUM,AIR INTAKE-UPPER-TURBO-ROUTED
-
91623-765 CLIP,RETAINING-HOODCLIP,RETAINING-HOOD
-
106606-388 GRILLE, INTERCOOLERGRILLE, INTERCOOLER
-
110608-696 SCREEN,PLENUMSCREEN,PLENUM
-
126606-386 SEAL,UPPER PLENUMSEAL,UPPER PLENUM
-
131623-933 SCREW,PLASTITE-TXSPNH 10-14X3/4 Z & BSCREW,PLASTITE-TXSPNH 10-14X3/4 Z & B
-
140623-797 SCREW,SELF TAP-TSTH 10-12X1/2 WO/GPSCREW,SELF TAP-TSTH 10-12X1/2 WO/GP
-
151623-939 NUT,SPEED-#10 B "U" TYPENUT,SPEED-#10 B "U" TYPE
-
166606-421 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
176606-822 RETAINER, PLENUMRETAINER, PLENUM
-
185706-991 PLENUM, AIR INTAKE - LOWER FRONT - W/REFLECTOR (T) (INC. 19)PLENUM, AIR INTAKE - LOWER FRONT - W/REFLECTOR (T) (INC. 19)
-
190621-989 ...DECAL, REFLECTOR - (AMBER)...DECAL, REFLECTOR - (AMBER)
-
201623-129 SCREW,SELF TAP-TXSTRH #10-12X5/8 TP A BLSCREW,SELF TAP-TXSTRH #10-12X5/8 TP A BL
-
215706-380 PLENUM, INTAKE - LOWER REAR (INC. 22)PLENUM, INTAKE - LOWER REAR (INC. 22)
-
226606-422 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
231623-023 NUT,SPEED-#10-32 U TYPENUT,SPEED-#10-32 U TYPE
-
246606-392 STRAP, HOLD-DOWNSTRAP, HOLD-DOWN
-
252670-265 FILTER,AIR (TURBO)FILTER,AIR (TURBO)
-
266606-365 COVER,AIR FILTERCOVER,AIR FILTER
