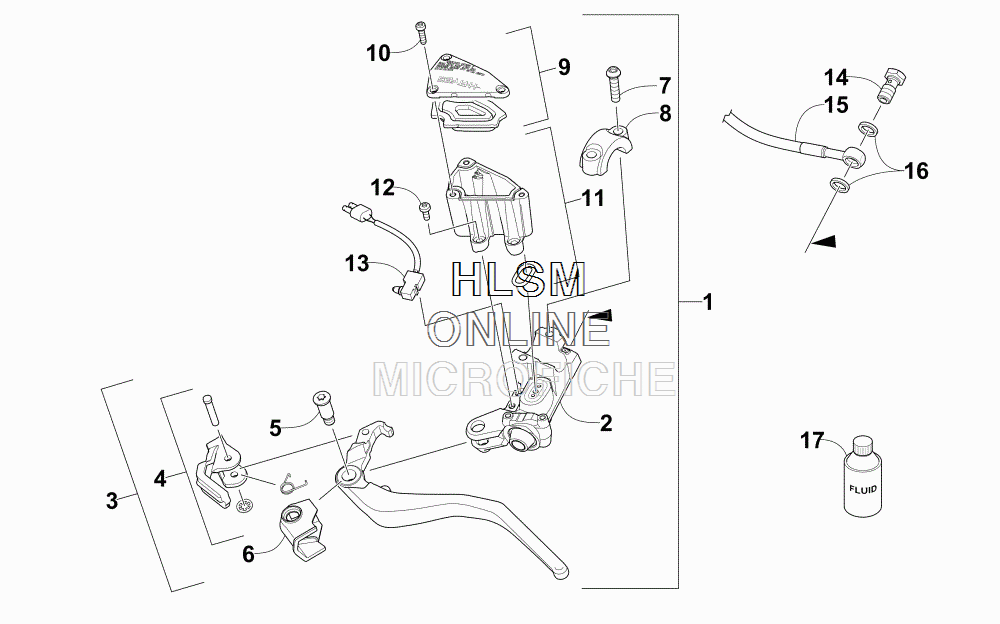

HYDRAULIC BRAKE CONTROL ASSEMBLY для Arctic Cat M 9000 SNO PRO LTD 162 (ORANGE) (EARLY BUILD) [S2015M9NLEUSO] - 2015 года выпуска
-
№АртикулНазвание
-
12602-477 BRAKE ASSEMBLY (INC. 2-13)BRAKE ASSEMBLY (INC. 2-13)
-
22602-479 ..PISTON,SUB ASSEMBLY-W/RESERVIOR BODY..PISTON,SUB ASSEMBLY-W/RESERVIOR BODY
-
32602-427 ...LEVER, BRAKE - ASSEMBLY (INC. 4-6)...LEVER, BRAKE - ASSEMBLY (INC. 4-6)
-
42602-428 ......LOCK, BRAKE LEVER - KIT......LOCK, BRAKE LEVER - KIT
-
52602-624 ......SCREW, SHOULDER......SCREW, SHOULDER
-
62602-625 ......BOOT,PIVOT PIN......BOOT,PIVOT PIN
-
71602-936 ...CLAMP SCREWS-BRAKE...CLAMP SCREWS-BRAKE
-
80502-869 ...CLAMP, HANDLEBAR (BLACK)...CLAMP, HANDLEBAR (BLACK)
-
92602-429 ...RESERVOIR COVER-SUB ASSEMBLY...RESERVOIR COVER-SUB ASSEMBLY
-
102602-430 ...KIT,SCREWS-RESERVOIR COVER...KIT,SCREWS-RESERVOIR COVER
-
112602-433 ...RESERVOIR-W/MOUNT SCREWS (INC. 12)...RESERVOIR-W/MOUNT SCREWS (INC. 12)
-
122602-519 ......SCREW,SELF-TAPPING-RESERVIOR......SCREW,SELF-TAPPING-RESERVIOR
-
132602-432 ...SWITCH,STOPLIGHT...SWITCH,STOPLIGHT
-
140423-413 BOLT,BANJO FITTING-20MMBOLT,BANJO FITTING-20MM
-
152602-424 BRAKELINE, HYDRAULICBRAKELINE, HYDRAULIC
-
160423-178 WASHER, CRUSHWASHER, CRUSH
-
175639-848 DOT 4 BRAKE FLUID - 12 OZDOT 4 BRAKE FLUID - 12 OZ
