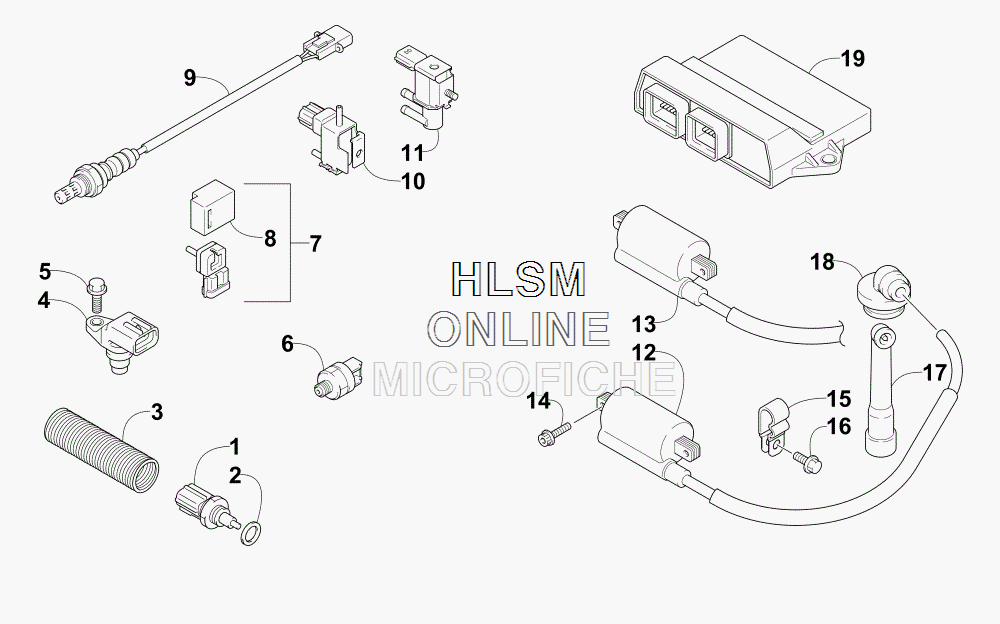

ELECTRICAL ASSEMBLY для Arctic Cat M 9000 SNO PRO LTD 162 (ORANGE) (EARLY BUILD) [S2015M9NLEUSO] - 2015 года выпуска
-
№АртикулНазвание
-
13007-060 SENSOR,WATER TEMPSENSOR,WATER TEMP
-
23530-047 GASKET,WATER TEMP SENSORGASKET,WATER TEMP SENSOR
-
33007-218 PROTECTOR,WATER TEMP SENSORPROTECTOR,WATER TEMP SENSOR
-
43007-216 SENSOR ASSEMBLY,CAM POSITIONSENSOR ASSEMBLY,CAM POSITION
-
53007-392 BOLTBOLT
-
63006-844 SWITCH ASSEMBLY,OIL PRESSURESWITCH ASSEMBLY,OIL PRESSURE
-
73007-517 SENSOR, BOOST/AIR PRESSURE (INC. 8)SENSOR, BOOST/AIR PRESSURE (INC. 8)
-
83007-213 ...COVER...COVER
-
93006-588 SENSOR, OXYGENSENSOR, OXYGEN
-
103006-883 VALVE, ABV CONTROLVALVE, ABV CONTROL
-
113007-834 VALVE, WASTE GATE CONTROLVALVE, WASTE GATE CONTROL
-
123007-835 COIL, IGNITION - BOTTOM (LONG)COIL, IGNITION - BOTTOM (LONG)
-
133007-836 COIL, IGNITION - TOP (SHORT)COIL, IGNITION - TOP (SHORT)
-
143007-426 BOLTBOLT
-
153007-837 RETAINER, WIRERETAINER, WIRE
-
163007-371 BOLT (6X12)BOLT (6X12)
-
173007-838 CAP, SPARK PLUGCAP, SPARK PLUG
-
183007-839 SEAL,HT CORDSEAL,HT CORD
-
190730-152 ECM ECU,TURBO, 012,F,C,MECM ECU,TURBO, 012,F,C,M
