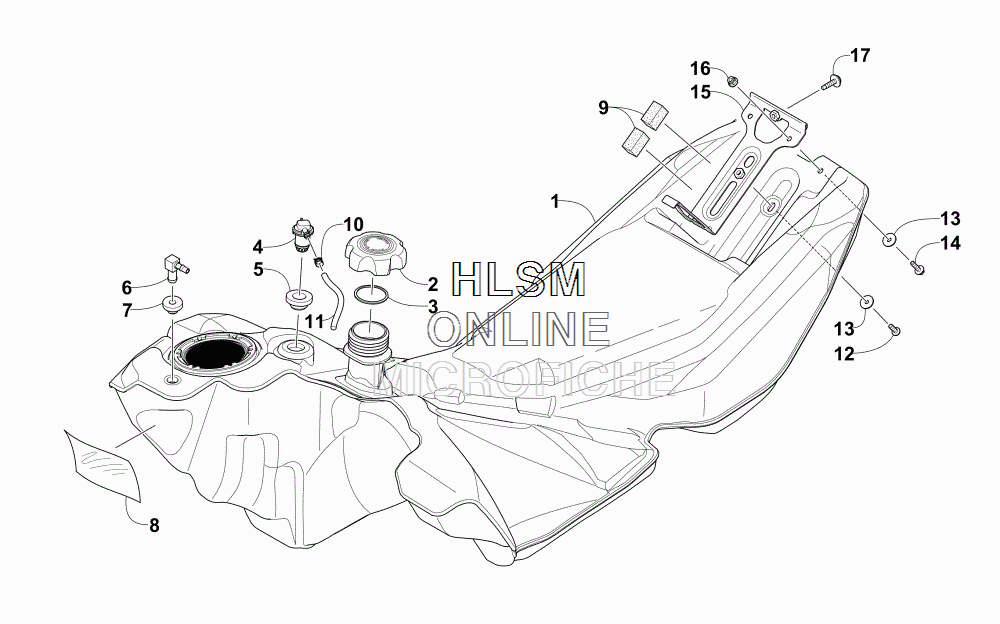

GAS TANK ASSEMBLY для Arctic Cat M 9000 SNO PRO LTD 162 (ORANGE) (EARLY BUILD) [S2015M9NLEUSO] - 2015 года выпуска

№

Артикул

Название
1

1770-016 TANK, GAS - ASSEMBLY (INC. 2-7)

TANK, GAS - ASSEMBLY (INC. 2-7)

58 230 ₽
2

2670-048 ...CAP, GAS TANK - ASSEMBLY (INC. 3)

...CAP, GAS TANK - ASSEMBLY (INC. 3)

2 070 ₽
3

0109-733 ......GASKET, GAS TANK CAP

......GASKET, GAS TANK CAP

540 ₽
4

1670-787 ...VALVE, CHECK

...VALVE, CHECK

5 190 ₽
5

1670-822 ...GROMMET,3/4"-FUEL TANK

...GROMMET,3/4"-FUEL TANK

580 ₽
6

1670-494 ...ELBOW, 90 DEG-OIL TANK

...ELBOW, 90 DEG-OIL TANK

610 ₽
7

1670-325 ...GROMMET

...GROMMET

440 ₽
8

0619-206 FOIL, PROTECTIVE

FOIL, PROTECTIVE

34 730 ₽
9

0617-667 FOAM PAD,GAS TANK

FOAM PAD,GAS TANK

290 ₽
10

1623-233 CLAMP, HOSE-10.41MM ID

CLAMP, HOSE-10.41MM ID

110 ₽
11

6101-009 HOSE, GASLINE - 50 FT

HOSE, GASLINE - 50 FT

70 090 ₽
11

6101-001 HOSE, GASLINE - 100 FT

HOSE, GASLINE - 100 FT

112 110 ₽
12

8410-616 SCREW,CAP-HFH M6X1.25X16 CL8.8 RIE (BLACK)

SCREW,CAP-HFH M6X1.25X16 CL8.8 RIE (BLACK)

210 ₽
13

8050-223 WASHER,FLAT (STD) 1/4 DIA (BLACK)

WASHER,FLAT (STD) 1/4 DIA (BLACK)

90 ₽
14

8410-620 SCREW,CAP-HFH M6X1.0X20 CL8.8 RIE (BLACK)

SCREW,CAP-HFH M6X1.0X20 CL8.8 RIE (BLACK)

150 ₽
15

5706-098 BRACKET, HOLD-DOWN

BRACKET, HOLD-DOWN

6 030 ₽
16

8427-602 NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y

NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y

440 ₽
17

0423-609 SCREW,FUEL TANK MOUNT (M6X18 DP)

SCREW,FUEL TANK MOUNT (M6X18 DP)

150 ₽
