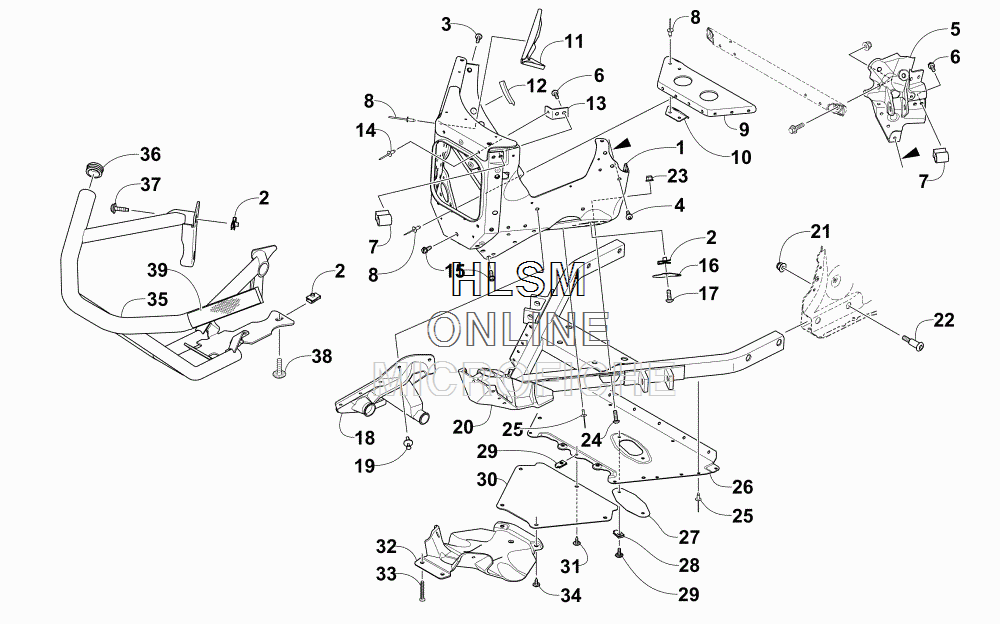

FRONT BUMPER AND FRAME ASSEMBLY для Arctic Cat M 9000 SNO PRO LTD 162 (ORANGE) (EARLY BUILD) [S2015M9NLEUSO] - 2015 года выпуска

№

Артикул

Название
1

2707-481 PANEL, FRONT - ASSEMBLY - (BLACK) (INC. 2-5)

PANEL, FRONT - ASSEMBLY - (BLACK) (INC. 2-5)

66 550 ₽
2

0423-577 ...CLIP, U-NUT

...CLIP, U-NUT

210 ₽
3

1623-683 ...SCREW,TAPTITE-TSPNH M6 X 1 X 20 Z & B

...SCREW,TAPTITE-TSPNH M6 X 1 X 20 Z & B

190 ₽
4

0423-538 ...SCREW,TAPTITE-TSPNH M6 X 1 X 16 Z & B

...SCREW,TAPTITE-TSPNH M6 X 1 X 16 Z & B

110 ₽
5

2707-304 ...BRACKET, SHOCK MOUNT - UPPER RIGHT - (BLACK)

...BRACKET, SHOCK MOUNT - UPPER RIGHT - (BLACK)

15 590 ₽
5

2707-305 ...BRACKET, SHOCK MOUNT - UPPER LEFT - (BLACK)

...BRACKET, SHOCK MOUNT - UPPER LEFT - (BLACK)

15 590 ₽
6

8413-617 SCREW,CAP-HFH M6X1.0X16 CL10.9 W/2353

SCREW,CAP-HFH M6X1.0X16 CL10.9 W/2353

190 ₽
7

1607-233 BRACKET, MOUNTING - UPPER A-ARM

BRACKET, MOUNTING - UPPER A-ARM

2 280 ₽
8

8060-706 RIVET,BLIND-DH SS64 (BLACK)

RIVET,BLIND-DH SS64 (BLACK)

60 ₽
9

1607-565 BRACKET, REINFORCEMENT

BRACKET, REINFORCEMENT

4 360 ₽
10

1607-566 BRACE, STEERING POST

BRACE, STEERING POST

540 ₽
11

0607-991 BRACKET, STEERING STOP

BRACKET, STEERING STOP

2 490 ₽
12

0706-371 TRIM - 3 FT

TRIM - 3 FT

3 110 ₽
13

1607-561 GUSSET, A-ARM MOUNTING BRACKET

GUSSET, A-ARM MOUNTING BRACKET

270 ₽
14

1623-241 RIVET,3/16 HUCK-M6

RIVET,3/16 HUCK-M6

290 ₽
15

1623-959 SCREW,SELF TAP 1/4-20X5/8 TYPE F (BLACK)

SCREW,SELF TAP 1/4-20X5/8 TYPE F (BLACK)

40 ₽
16

1707-568 PANEL, CLOSE-OFF

PANEL, CLOSE-OFF

860 ₽
17

8471-616 SCREW,MACH-TSPNH M6X1.0X16 CL8.8 Z & (BLACK)

SCREW,MACH-TSPNH M6X1.0X16 CL8.8 Z & (BLACK)

110 ₽
18

1605-028 BOOT, STEERING - RIGHT

BOOT, STEERING - RIGHT

4 990 ₽
18

1605-029 BOOT, STEERING - LEFT

BOOT, STEERING - LEFT

4 990 ₽
19

0623-362 RIVET,PLASTIC-REINSTALLABLE

RIVET,PLASTIC-REINSTALLABLE

110 ₽
20

1707-862 FRAME, FRONT - LOWER - (BLACK)

FRAME, FRONT - LOWER - (BLACK)

59 480 ₽
21

8427-802 NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z & Y

NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z & Y

90 ₽
22

1623-817 SCREW,SHOULDER-HSTRH M8 X 1.25 X 44.16

SCREW,SHOULDER-HSTRH M8 X 1.25 X 44.16

290 ₽
23

8427-602 NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y

NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y

440 ₽
24

8468-620 SCREW,MACH-TSPNH M6X1.0X20 CL8.8 (BLACK)

SCREW,MACH-TSPNH M6X1.0X20 CL8.8 (BLACK)

110 ₽
25

8060-686 RIVET,BLIND-DH SS64 ZINC

RIVET,BLIND-DH SS64 ZINC

60 ₽
26

0607-983 BELLY PAN - CENTER

BELLY PAN - CENTER

5 400 ₽
27

1607-108 COVER, ACCESS - OIL DRAIN

COVER, ACCESS - OIL DRAIN

2 700 ₽
28

1623-052 CLIP, U-NUT

CLIP, U-NUT

150 ₽
29

0623-797 SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP

SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP

650 ₽
30

1607-063 PANEL, ACCESS

PANEL, ACCESS

1 870 ₽
31

1623-129 SCREW,SELF TAP-TXSTRH #10-12X5/8 TP A BL

SCREW,SELF TAP-TXSTRH #10-12X5/8 TP A BL

230 ₽
32

6606-614 BELLY PAN - FRONT

BELLY PAN - FRONT

2 070 ₽
33

1623-929 SCREW,PLASTITE-TXSPNH 10-14X1 1/2 Z & B

SCREW,PLASTITE-TXSPNH 10-14X1 1/2 Z & B

210 ₽
34

0623-784 SCREW,SELF TAP-TSTRH #10-12X3/4 TP A (BLACK)

SCREW,SELF TAP-TSTRH #10-12X3/4 TP A (BLACK)

210 ₽
35

2707-228 BUMPER, FRONT - ASSEMBLY - (ORANGE)

BUMPER, FRONT - ASSEMBLY - (ORANGE)

44 090 ₽
36

2623-087 PLUG,PLASTIC 1.25" X 10-14

PLUG,PLASTIC 1.25" X 10-14

310 ₽
37

0423-609 SCREW,FUEL TANK MOUNT (M6X18 DP)

SCREW,FUEL TANK MOUNT (M6X18 DP)

150 ₽
38

1623-031 SCREW,SELF TAP-TSTRH #10-12X1.00

SCREW,SELF TAP-TSTRH #10-12X1.00

230 ₽
39

2621-210 DECAL, REFLECTOR - (AMBER)

DECAL, REFLECTOR - (AMBER)

1 870 ₽
