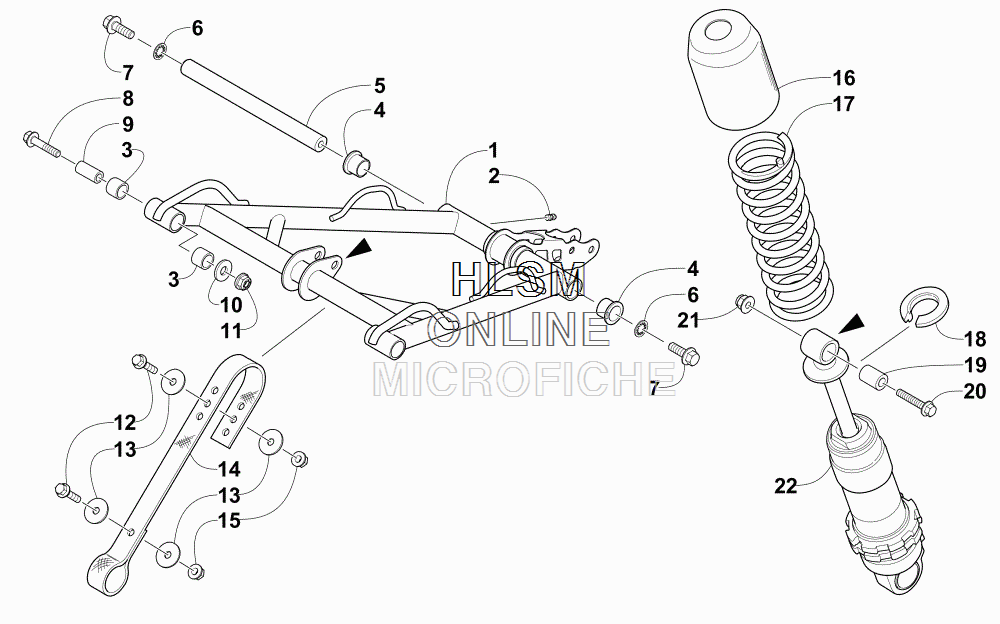

SUSPENSION REAR - FRONT ARM ASSEMBLY для Arctic Cat M 9000 SNO PRO LTD 162 (ORANGE) (EARLY BUILD) [S2015M9NLEUSO] - 2015 года выпуска
-
№АртикулНазвание
-
12704-418 ARM, FRONT SUSPENSION - (BLACK) (INC. 2-4)ARM, FRONT SUSPENSION - (BLACK) (INC. 2-4)
-
21623-010 ...FITTING,GREASE-1/4-28 UNF-SELF THREAD...FITTING,GREASE-1/4-28 UNF-SELF THREAD
-
30604-889 ...BUSHING,FRONT ARM...BUSHING,FRONT ARM
-
43604-028 ...BUSHING, FLARED -BRONZE .735" X .751 ID...BUSHING, FLARED -BRONZE .735" X .751 ID
-
53604-853 AXLEAXLE
-
61623-992 WASHER, INTERNAL TOOTH LOCKWASHER, INTERNAL TOOTH LOCK
-
78413-036 SCREW,CAP-HFH M10X1.25X35 CL10.9 W/2353SCREW,CAP-HFH M10X1.25X35 CL10.9 W/2353
-
88408-065 SCREW,CAP-HFH M10X1.25X65 CL8.8 Z & YSCREW,CAP-HFH M10X1.25X65 CL8.8 Z & Y
-
93604-665 AXLEAXLE
-
108450-163 WASHER,FLAT-M10-11.12X28.00 X 2.80Z & YWASHER,FLAT-M10-11.12X28.00 X 2.80Z & Y
-
118427-002 NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z & YNUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z & Y
-
128408-630 SCREW,CAP-HFH M6X1.0X30 CL8.8 Z & YSCREW,CAP-HFH M6X1.0X30 CL8.8 Z & Y
-
138450-109 WASHER,FLAT M6-6.87X25.4X2.32 Z & YWASHER,FLAT M6-6.87X25.4X2.32 Z & Y
-
143604-391 STRAP,LIMITER-FRONT ARMSTRAP,LIMITER-FRONT ARM
-
158427-602 NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & YNUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
-
160604-790 COVER,SUSPENSION SPRING (SHORT)COVER,SUSPENSION SPRING (SHORT)
-
171704-236 SPRING, COMPRESSION - (BLACK)SPRING, COMPRESSION - (BLACK)
-
183604-200 RETAINER,SPRING-POWDER METALRETAINER,SPRING-POWDER METAL
-
193604-845 AXLEAXLE
-
208413-845 SCREW,CAP-HFH M8X1.25X45 CL10.9 (SILVER)SCREW,CAP-HFH M8X1.25X45 CL10.9 (SILVER)
-
218437-804 NUT,HEX FLG-NYL LOCK M8X1.25 CL10 (SILVER)NUT,HEX FLG-NYL LOCK M8X1.25 CL10 (SILVER)
-
222704-708 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
