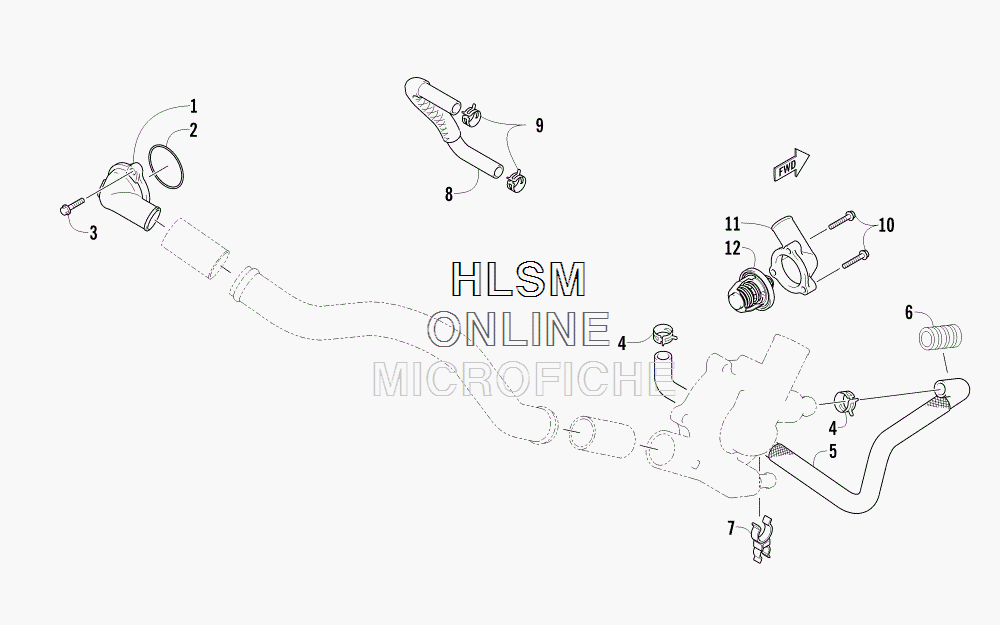

WATER HOSE ASSEMBLY для Arctic Cat M 9000 SNO PRO LTD 162 (ORANGE) (EARLY BUILD) [S2015M9NLEUSO] - 2015 года выпуска
-
№АртикулНазвание
-
13007-190 FITTING, HOSE CONNECTOR,WATER INLETFITTING, HOSE CONNECTOR,WATER INLET
-
20830-173 ORING,ID44.12 X CS2.62ORING,ID44.12 X CS2.62
-
33007-515 BOLT,WATER INLET CONNECTORBOLT,WATER INLET CONNECTOR
-
43008-488 CLIP (ID:17.8)CLIP (ID:17.8)
-
53007-514 HOSE, BYPASS - NO. 2HOSE, BYPASS - NO. 2
-
60716-908 CONDUIT, FLEXIBLE - 3 FTCONDUIT, FLEXIBLE - 3 FT
-
73007-516 CLAMP,WATER BYPASS HOSECLAMP,WATER BYPASS HOSE
-
83007-823 HOSE, BYPASS - NO. 3HOSE, BYPASS - NO. 3
-
93007-189 CLIP,WATER BYPASS HOSE NO.3CLIP,WATER BYPASS HOSE NO.3
-
103007-369 BOLT,CYLINDER HEAD COVER NO. 1BOLT,CYLINDER HEAD COVER NO. 1
-
113003-924 CAP, THERMOSTATCAP, THERMOSTAT
-
123007-182 THERMOSTAT,WATERTHERMOSTAT,WATER
