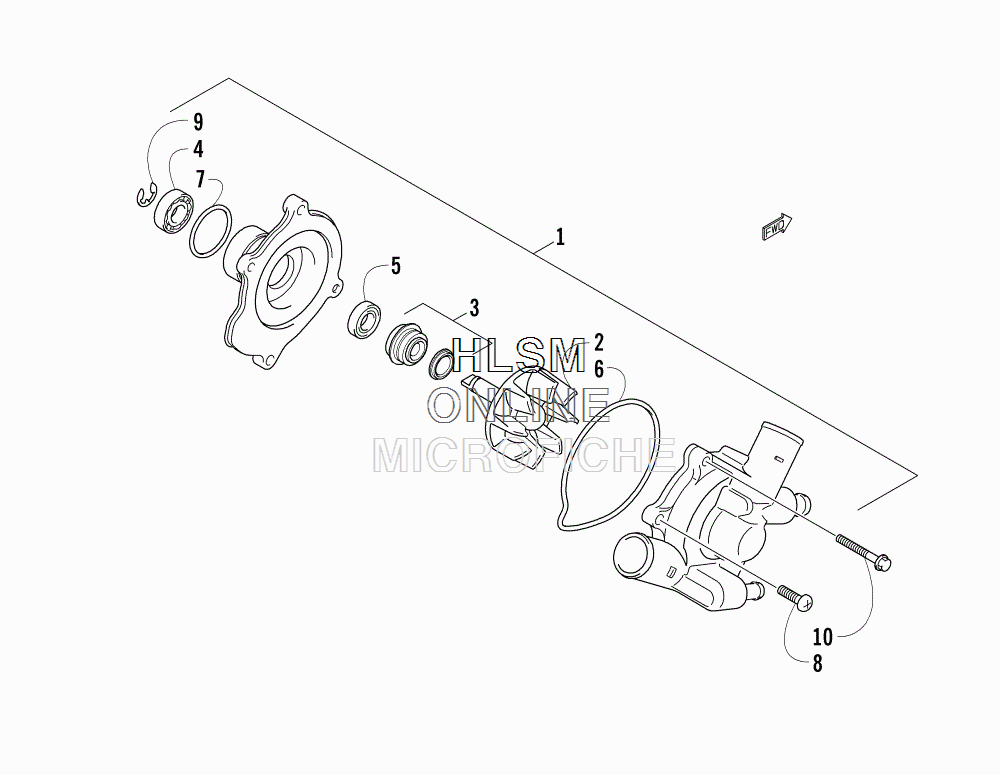

WATER PUMP ASSEMBLY для Arctic Cat M 9000 SNO PRO LTD 162 (ORANGE) (EARLY BUILD) [S2015M9NLEUSO] - 2015 года выпуска
-
№АртикулНазвание
-
13007-178 PUMP, WATER - ASSEMBLY (INC. 2-9)PUMP, WATER - ASSEMBLY (INC. 2-9)
-
23007-179 ...IMPELLER/SHAFT...IMPELLER/SHAFT
-
33007-180 ...SEAL,MECHANICAL...SEAL,MECHANICAL
-
43003-615 ...BEARING,OIL PUMP DRIVESHAFT,M10X26X8...BEARING,OIL PUMP DRIVESHAFT,M10X26X8
-
53402-465 ...OIL SEAL (M10X21X5)...OIL SEAL (M10X21X5)
-
63007-181 ...O-RING...O-RING
-
73423-404 ...O-RING...O-RING
-
83007-511 ...SCREW...SCREW
-
93007-512 ...E RING...E RING
-
103007-503 BOLT,MAGNETO COVERBOLT,MAGNETO COVER
