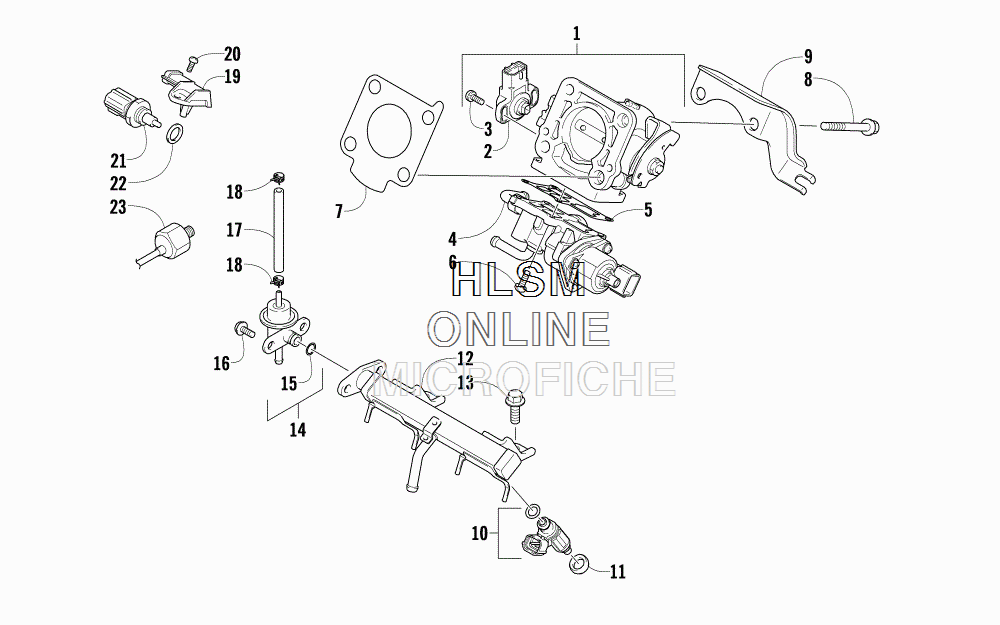

THROTTLE BODY ASSEMBLY для Arctic Cat M 9000 SNO PRO LTD 162 (ORANGE) (EARLY BUILD) [S2015M9NLEUSO] - 2015 года выпуска
-
№АртикулНазвание
-
13007-826 BODY, THROTTLE - ASSEMBLY (INC. 2-3)BODY, THROTTLE - ASSEMBLY (INC. 2-3)
-
23006-651 ...SENSOR, THROTTLE POSITION - ASSEMBLY...SENSOR, THROTTLE POSITION - ASSEMBLY
-
33006-652 ...SCREW,TPS SENSOR...SCREW,TPS SENSOR
-
43007-827 VALVE, IDLE SPEED CONTROLVALVE, IDLE SPEED CONTROL
-
53006-215 GASKET,ISC VALVE '02 660 L/CGASKET,ISC VALVE '02 660 L/C
-
63007-828 SCREW,ISC VALVESCREW,ISC VALVE
-
73006-560 GASKET, THROTTLE BODYGASKET, THROTTLE BODY
-
83007-238 BOLT,EGR VALVEBOLT,EGR VALVE
-
93007-829 SUPPORT, THROTTLE CABLESUPPORT, THROTTLE CABLE
-
103007-830 INJECTOR ASSEMBLY,FUELINJECTOR ASSEMBLY,FUEL
-
113006-126 GASKET, INJECTORGASKET, INJECTOR
-
123007-831 RAIL, FUEL PIPE,DELIVERYRAIL, FUEL PIPE,DELIVERY
-
133007-432 BOLTBOLT
-
143006-880 REGULATOR, FUEL PRESSURE (INC. 15)REGULATOR, FUEL PRESSURE (INC. 15)
-
153006-881 ...O-RING (660 TURBO)...O-RING (660 TURBO)
-
163007-457 BOLTBOLT
-
173006-851 HOSE,3.5X7.5X601HOSE,3.5X7.5X601
-
183008-037 CLAMP,HOSE,M6CLAMP,HOSE,M6
-
193007-832 SENSOR ASSEMBLY,BOOSTSENSOR ASSEMBLY,BOOST
-
203007-833 SCREW,PRESSURE SENSORSCREW,PRESSURE SENSOR
-
213007-060 SENSOR,WATER TEMPSENSOR,WATER TEMP
-
223530-047 GASKET,WATER TEMP SENSORGASKET,WATER TEMP SENSOR
-
233006-886 SENSOR ASSEMBLY, KNOCKSENSOR ASSEMBLY, KNOCK
