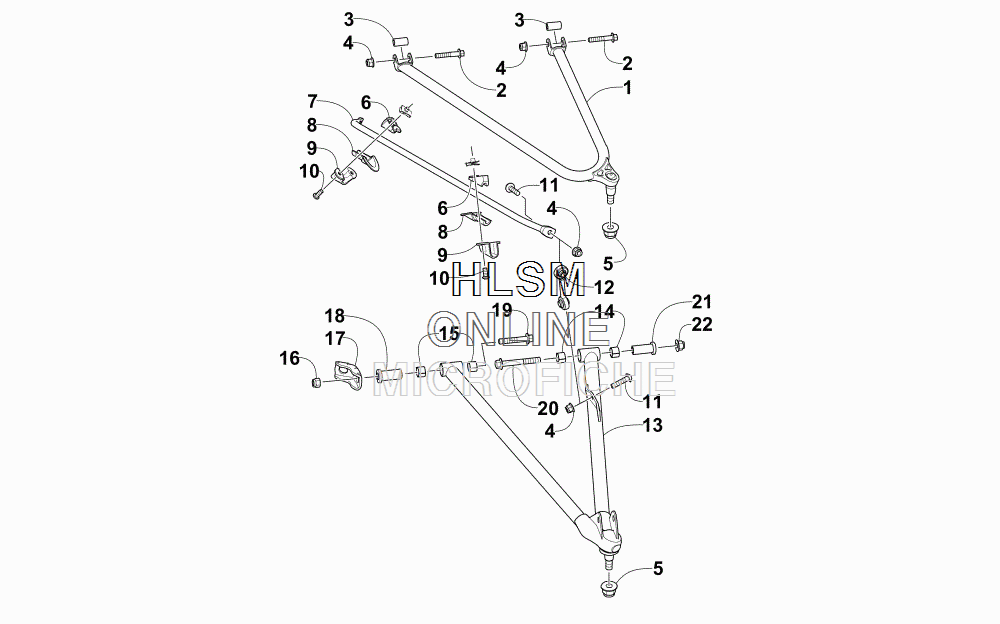

A-ARM AND SWAY BAR ASSEMBLY для Arctic Cat ZR 4000 LXR (GREEN) [S2015ZRCEFUSG] - 2015 года выпуска
-
№АртикулНазвание
-
12703-786 A-ARM, UPPER - RIGHT - (BLACK)A-ARM, UPPER - RIGHT - (BLACK)
-
12703-787 A-ARM, UPPER - LEFT - (BLACK)A-ARM, UPPER - LEFT - (BLACK)
-
28408-845 SCREW,CAP-HFH M8X1.25X45 CL8.8 Z & YSCREW,CAP-HFH M8X1.25X45 CL8.8 Z & Y
-
32603-841 AXLE,A-ARM-UPPER-PMAXLE,A-ARM-UPPER-PM
-
48427-802 NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z & YNUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z & Y
-
58427-202 NUT,HEX FLG-NYL LOCK M12X1.25 CL8 Z & YNUT,HEX FLG-NYL LOCK M12X1.25 CL8 Z & Y
-
62603-944 BUSHING,SWAY BAR-11.1MM-INNERBUSHING,SWAY BAR-11.1MM-INNER
-
72703-615 SWAY BAR,FORMED-11.1MM-PTD (BLACK)SWAY BAR,FORMED-11.1MM-PTD (BLACK)
-
82603-945 BUSHING,SWAY BAR-11.1MM-OUTERBUSHING,SWAY BAR-11.1MM-OUTER
-
92603-857 BRACKET, MOUNTING - SWAY BARBRACKET, MOUNTING - SWAY BAR
-
108468-621 SCREW,MACH-TSPNH M6X1.0X20 CL8.8 W/2353SCREW,MACH-TSPNH M6X1.0X20 CL8.8 W/2353
-
118476-835 SCREW,MACH-TSTRH M8X1.25X35 Z & YSCREW,MACH-TSTRH M8X1.25X35 Z & Y
-
123603-295 LINK,SWAYBAR-WIDE RACELINK,SWAYBAR-WIDE RACE
-
133703-124 A-ARM, LOWER - RIGHT - (BLACK) (INC. 14-15)A-ARM, LOWER - RIGHT - (BLACK) (INC. 14-15)
-
133703-125 A-ARM, LOWER - LEFT - (BLACK) (INC. 14-15)A-ARM, LOWER - LEFT - (BLACK) (INC. 14-15)
-
141603-895 ......BEARING, 10DU10-FRONT SUSPENSION......BEARING, 10DU10-FRONT SUSPENSION
-
152603-911 ......BEARING,SPLIT-18 X 20 X 15......BEARING,SPLIT-18 X 20 X 15
-
161623-965 NUT,HEX-THK NYL M12X1.25 CL8 Z & Y(DIN)NUT,HEX-THK NYL M12X1.25 CL8 Z & Y(DIN)
-
172603-909 BRACE, LOWER A-ARM - FRONTBRACE, LOWER A-ARM - FRONT
-
182603-916 AXLE, INNER - LOWER A-ARM - FRONTAXLE, INNER - LOWER A-ARM - FRONT
-
191623-953 SCREW,CAP-HFH M12X1.25X76 CL 10.9 MZSCREW,CAP-HFH M12X1.25X76 CL 10.9 MZ
-
208409-075 SCREW,CAP-HFH M10X1.25X75 CL10.9 Z & YSCREW,CAP-HFH M10X1.25X75 CL10.9 Z & Y
-
212603-543 AXLE, LOWER A-ARM - REARAXLE, LOWER A-ARM - REAR
-
228427-002 NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z & YNUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z & Y
