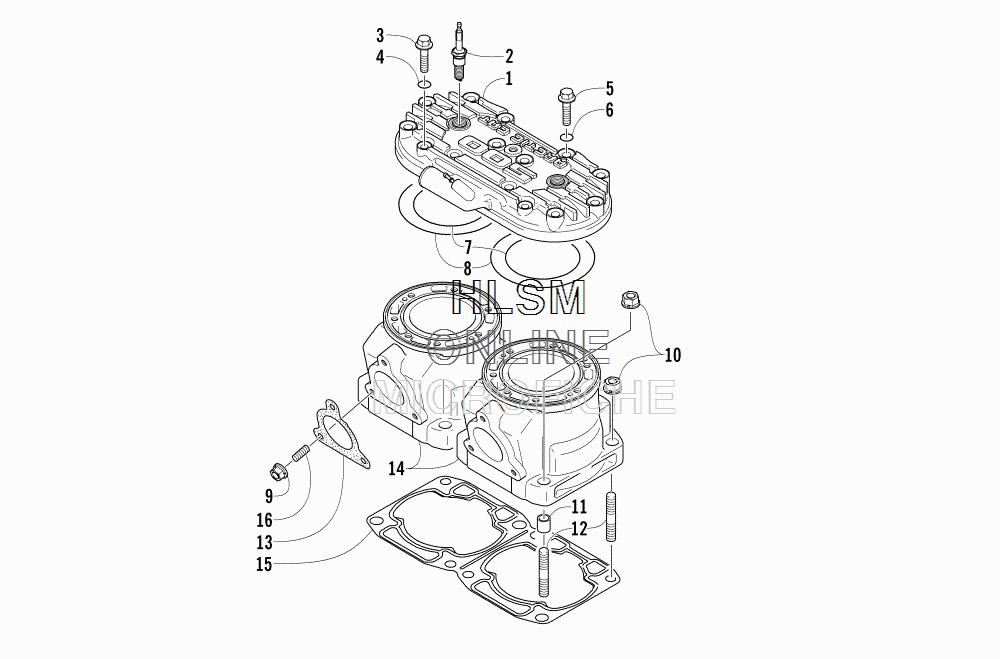

CYLINDER AND HEAD ASSEMBLY для Arctic Cat ZR 4000 LXR (GREEN) [S2015ZRCEFUSG] - 2015 года выпуска
-
№АртикулНазвание
-
13007-611 HEAD, CYLINDERHEAD, CYLINDER
-
20217-709 PLUG, SPARK (BR9EYA)PLUG, SPARK (BR9EYA)
-
33006-419 BOLTBOLT
-
43006-420 O RING,D:1.9 ID:4.8O RING,D:1.9 ID:4.8
-
53007-460 BOLTBOLT
-
63003-227 O-RING, HEAD BOLTO-RING, HEAD BOLT
-
73003-224 O RING,HEAD-INNERO RING,HEAD-INNER
-
83003-226 O RING,HEAD-OUTERO RING,HEAD-OUTER
-
93007-390 NUT,INTER COOLERNUT,INTER COOLER
-
103007-391 NUT,INTER COOLER BRKTNUT,INTER COOLER BRKT
-
113004-975 PIN, DOWELPIN, DOWEL
-
123006-743 BOLT,CYLINDER STUDBOLT,CYLINDER STUD
-
133006-748 GASKET, EXHAUSTGASKET, EXHAUST
-
143006-745 CYLINDERCYLINDER
-
153006-423 GASKET, CYLINDERGASKET, CYLINDER
-
163007-415 BOLT, STUDBOLT, STUD
