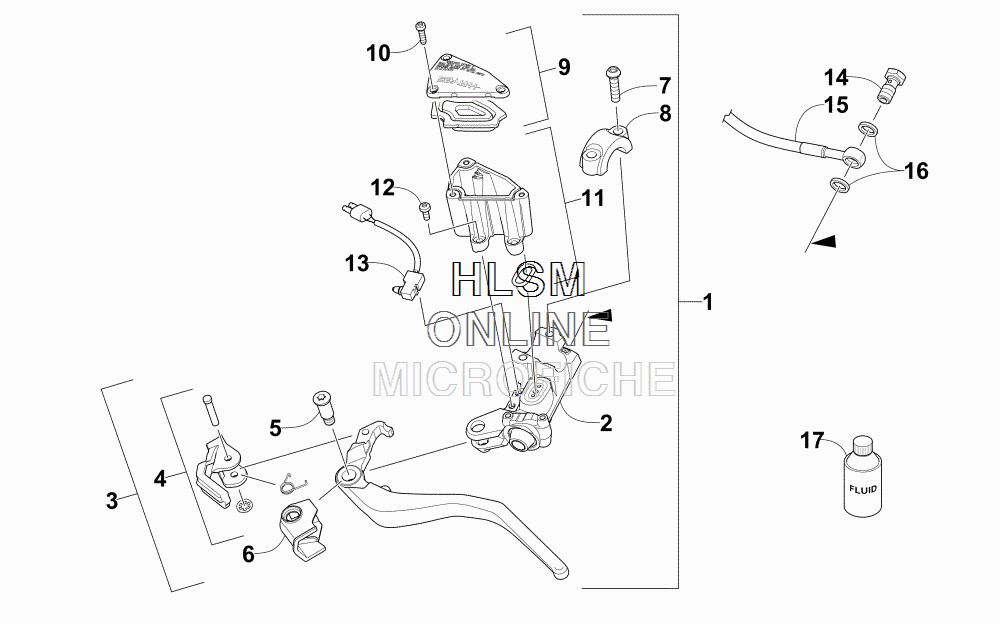

HYDRAULIC BRAKE CONTROL ASSEMBLY для Arctic Cat ZR 4000 LXR (GREEN) [S2015ZRCEFUSG] - 2015 года выпуска
-
№АртикулНазвание
-
12602-477 BRAKE ASSEMBLY (INC. 2-13)BRAKE ASSEMBLY (INC. 2-13)
-
22602-479 ...PISTON,SUB ASSY-W/RESERVIOR BODY...PISTON,SUB ASSY-W/RESERVIOR BODY
-
32602-427 ...LEVER, BRAKE - ASSEMBLY (INC. 4-6)...LEVER, BRAKE - ASSEMBLY (INC. 4-6)
-
42602-428 ......LOCK, BRAKE LEVER - KIT......LOCK, BRAKE LEVER - KIT
-
52602-624 ......PIN,PIVOT-M8......PIN,PIVOT-M8
-
62602-625 ......BOOT,PIVOT PIN......BOOT,PIVOT PIN
-
71602-936 ...CLAMP SCREWS-BRAKE...CLAMP SCREWS-BRAKE
-
80502-869 ...CLAMP, HANDLEBAR...CLAMP, HANDLEBAR
-
92602-429 ...RESERVOIR COVER-SUB ASSY...RESERVOIR COVER-SUB ASSY
-
102602-430 ...KIT,SCREWS-RESERVOIR COVER...KIT,SCREWS-RESERVOIR COVER
-
112602-433 ...RESERVOIR-W/MOUNT SCREWS...RESERVOIR-W/MOUNT SCREWS
-
122602-519 ......SCREW,SELF-TAPPING-RESERVIOR......SCREW,SELF-TAPPING-RESERVIOR
-
132602-432 ...SWITCH,STOPLIGHT...SWITCH,STOPLIGHT
-
140423-413 BOLT,BANJO FITTING-20MMBOLT,BANJO FITTING-20MM
-
152602-424 BRAKELINE, HYDRAULICBRAKELINE, HYDRAULIC
-
160423-178 WASHER,CRUSHWASHER,CRUSH
-
175639-848 DOT 4 BRAKE FLUID - 12 OZDOT 4 BRAKE FLUID - 12 OZ
