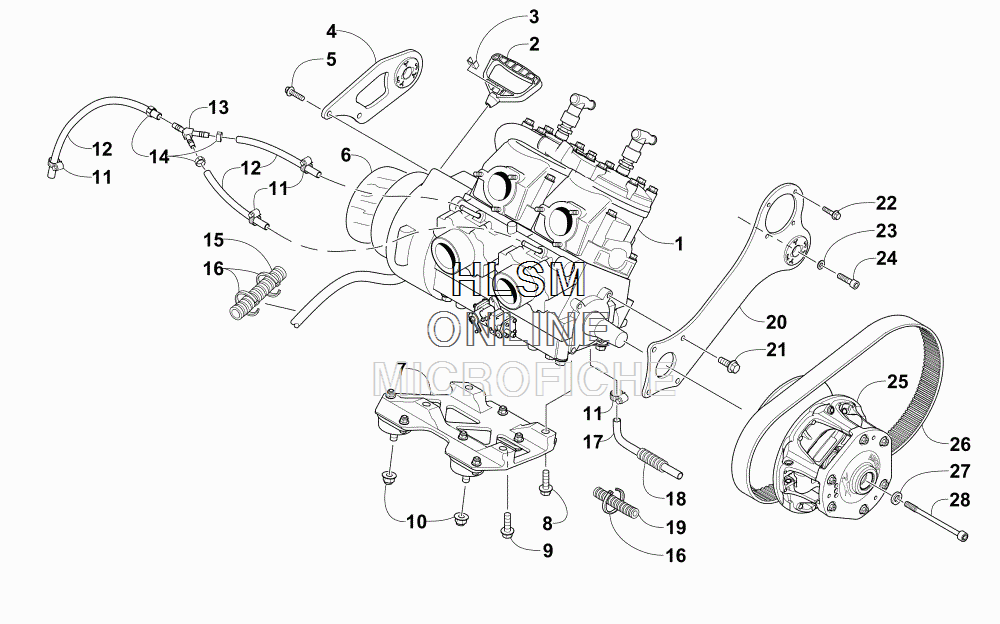

ENGINE AND RELATED PARTS для Arctic Cat ZR 4000 LXR (GREEN) [S2015ZRCEFUSG] - 2015 года выпуска
-
№АртикулНазвание
-
10762-582 ENGINE, AX50L9 W/O EFI COMPONENTSENGINE, AX50L9 W/O EFI COMPONENTS
-
20636-363 HANDLE,RECOIL-LARGEHANDLE,RECOIL-LARGE
-
30606-885 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
40708-632 PLATE, MOUNTINGPLATE, MOUNTING
-
58408-821 SCREW,CAP-HFH M8X1.25X20 CL8.8 W/2353SCREW,CAP-HFH M8X1.25X20 CL8.8 W/2353
-
61670-328 FOIL, PROTECTIVE-RECOIL COVER-DIE CUTFOIL, PROTECTIVE-RECOIL COVER-DIE CUT
-
70708-633 MOUNT, ENGINE LOWERMOUNT, ENGINE LOWER
-
88413-046 SCREW,CAP-HFH M10X1.25X45 CL10.9 W/2353SCREW,CAP-HFH M10X1.25X45 CL10.9 W/2353
-
98409-017 SCREW,CAP-HFH M10X1.25X16 CL10.9W/2353SCREW,CAP-HFH M10X1.25X16 CL10.9W/2353
-
108427-002 NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z & YNUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z & Y
-
110623-373 CLAMP,HOSE #4 {6202}CLAMP,HOSE #4 {6202}
-
120610-076 HOSE, COOLANT - 10 FTHOSE, COOLANT - 10 FT
-
131670-596 FITTING,Y-5/16FITTING,Y-5/16
-
140610-581 CLAMP, HOSE-14.5MM TO 17.0MMCLAMP, HOSE-14.5MM TO 17.0MM
-
150619-994 CONDUIT (3/4 IN. ID) - 6 IN.CONDUIT (3/4 IN. ID) - 6 IN.
-
160123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
170610-699 HOSE,THROTTLE BODY PTO/WATER PUMP(13.75)HOSE,THROTTLE BODY PTO/WATER PUMP(13.75)
-
180619-776 CONDUIT,FLEXIBLE-.62 ID-CTL 5'CONDUIT,FLEXIBLE-.62 ID-CTL 5'
-
190619-619 CONDUIT, FLEXIBLE - 4 IN.CONDUIT, FLEXIBLE - 4 IN.
-
200708-641 PLATE, MOUNTING - PTOPLATE, MOUNTING - PTO
-
218409-821 SCREW,CAP-HFH M8X1.25X20 CL10.9 W/2353SCREW,CAP-HFH M8X1.25X20 CL10.9 W/2353
-
228050-242 WASHER,FLAT- 5/16 X .625 X .063 Z & YWASHER,FLAT- 5/16 X .625 X .063 Z & Y
-
231623-932 SCREW,CAP-HSH-M8X1.25X30/12.9 W/2353 BZSCREW,CAP-HSH-M8X1.25X30/12.9 W/2353 BZ
-
248408-621 SCREW,CAP-HFH M6X1.0X20 CL8.8 Z & Y W/2353SCREW,CAP-HFH M6X1.0X20 CL8.8 Z & Y W/2353
-
250746-435 CLUTCH, DRIVE - UNCALIBRATED-8.25 33MM/SCLUTCH, DRIVE - UNCALIBRATED-8.25 33MM/S
-
260627-083 BELT,DRIVE DCVS S3C-S 36.8W X 1207OCBELT,DRIVE DCVS S3C-S 36.8W X 1207OC
-
271623-649 WASHER,CLUTCH BOLTWASHER,CLUTCH BOLT
-
281623-792 BOLT,CLUTCH-M12X1.25X157BOLT,CLUTCH-M12X1.25X157
