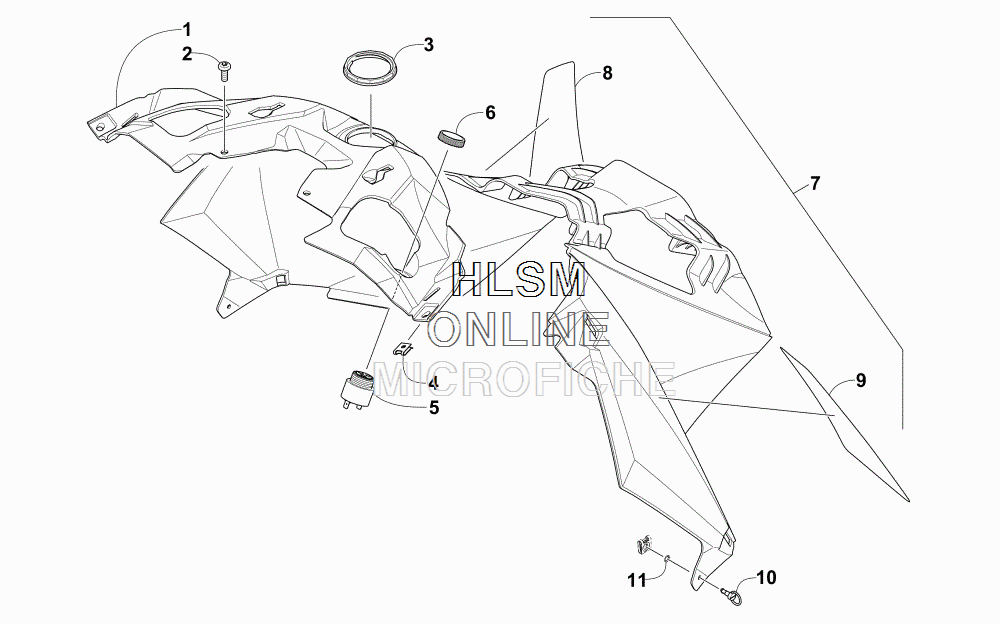

CONSOLE ASSEMBLY для Arctic Cat ZR 4000 LXR (GREEN) [S2015ZRCEFUSG] - 2015 года выпуска
![](/wa-data/public/shop/sheme/arctic-cat/snow/7672ee7b-f611-41a9-a681-0e2ab37c848f.gif)
-
№АртикулНазвание
-
16606-305 CONSOLE, UPPER - (BLACK)CONSOLE, UPPER - (BLACK)
-
20423-396 SCREW,SELF TAP-TSPH M6-1.0X15SCREW,SELF TAP-TSPH M6-1.0X15
-
36606-390 NUT,RETAINING-CONSOLENUT,RETAINING-CONSOLE
-
41623-939 NUT,SPEED-#10 B "U" TYPENUT,SPEED-#10 B "U" TYPE
-
50630-243 ALARM,REVERSE-DC ONLYALARM,REVERSE-DC ONLY
-
60630-017 ...RING,RETAINING-REV ALARM...RING,RETAINING-REV ALARM
-
73718-998 CONSOLE, LOWER - (BLACK) (INC. 8-9)CONSOLE, LOWER - (BLACK) (INC. 8-9)
-
89611-499 ...DECAL, WARNING (ENGLISH)...DECAL, WARNING (ENGLISH)
-
99611-498 ...DECAL, WARNING (FRENCH)...DECAL, WARNING (FRENCH)
-
102623-003 PIN, RETAININGPIN, RETAINING
-
112623-004 NUT, PUSHNUT, PUSH
