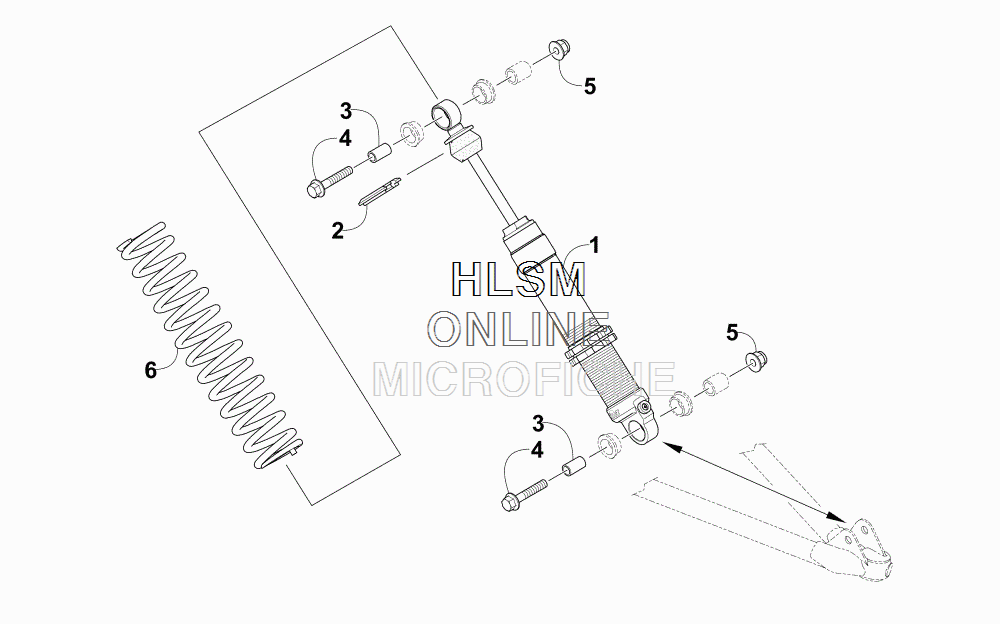

FRONT SHOCK ABSORBER ASSEMBLY для Arctic Cat ZR 4000 LXR (GREEN) [S2015ZRCEFUSG] - 2015 года выпуска
-
№АртикулНазвание
-
13703-112 SHOCK ABSORBERSHOCK ABSORBER
-
23604-200 RETAINER,SPRING-POWDER METALRETAINER,SPRING-POWDER METAL
-
33604-109 SLEEVE,SHOCK EYELET-10MM IDSLEEVE,SHOCK EYELET-10MM ID
-
48408-050 SCREW,CAP-HFH M10X1.25X50 CL8.8 Z & YSCREW,CAP-HFH M10X1.25X50 CL8.8 Z & Y
-
58427-002 NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z & YNUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z & Y
-
62703-861 SPRING, COMPRESSION - (WHITE)SPRING, COMPRESSION - (WHITE)
