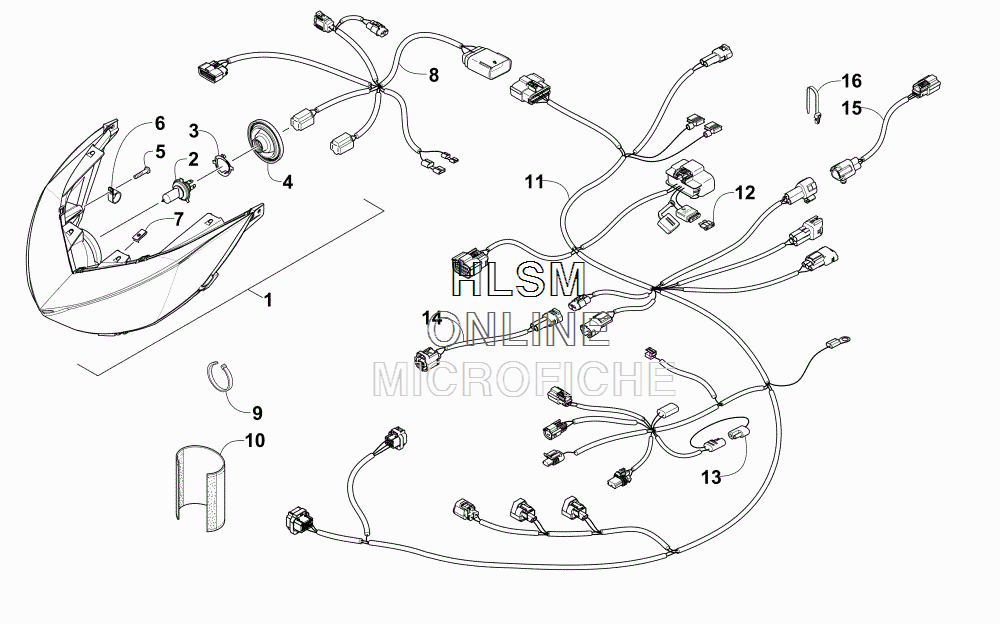

HEADLIGHT AND WIRING ASSEMBLIES для Arctic Cat ZR 4000 LXR (GREEN) [S2015ZRCEFUSG] - 2015 года выпуска
-
№АртикулНазвание
-
10609-899 HEADLIGHT ASSEMBLY (INC. 2-4)HEADLIGHT ASSEMBLY (INC. 2-4)
-
20109-724 ...BULB,QUARTZ HGN H4...BULB,QUARTZ HGN H4
-
30409-097 ...RETAINER, SPRING...RETAINER, SPRING
-
40609-919 ...BOOT,BULB...BOOT,BULB
-
51623-915 SCREW,PLASTITE-TSPNH-1/4-10 X 1.25 RIE BSCREW,PLASTITE-TSPNH-1/4-10 X 1.25 RIE B
-
61623-675 CLAMP,CABLE,11/16 INSUL-1/4" MTGCLAMP,CABLE,11/16 INSUL-1/4" MTG
-
70423-031 CLIP, U-NUTCLIP, U-NUT
-
81686-748 HARNESS, HOODHARNESS, HOOD
-
90123-811 TIE, CABLE - 4 IN.TIE, CABLE - 4 IN.
-
90123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
90123-903 TIE, CABLE - 11.5 IN.TIE, CABLE - 11.5 IN.
-
105706-138 WRAP, HARNESSWRAP, HARNESS
-
111686-747 HARNESS, MAIN (INC. 12-13)HARNESS, MAIN (INC. 12-13)
-
120630-024 ...FUSE - 15 AMP...FUSE - 15 AMP
-
130486-164 ...TETHER, ACCESSORY CONNECTOR...TETHER, ACCESSORY CONNECTOR
-
141686-173 HARNESS, ADAPTER - ENGINE COOLANT TEMPERATURE SENSORHARNESS, ADAPTER - ENGINE COOLANT TEMPERATURE SENSOR
-
151686-684 HARNESS, EXTENSION - TAILLIGHTHARNESS, EXTENSION - TAILLIGHT
-
160623-677 TIE, CABLE - PUSH-MOUNTTIE, CABLE - PUSH-MOUNT
