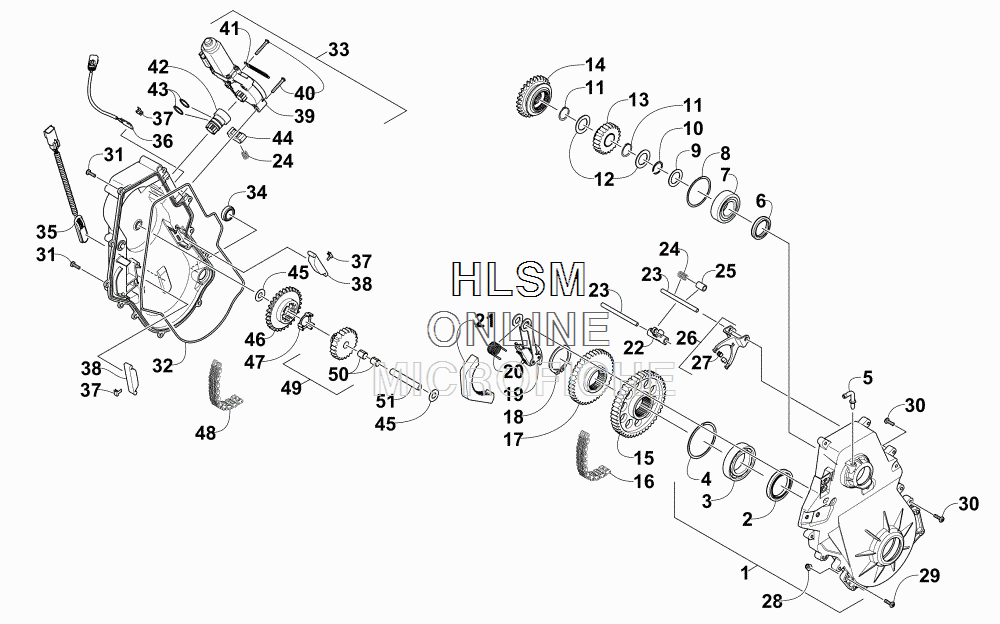

CHAIN CASE ASSEMBLY для Arctic Cat ZR 4000 LXR (GREEN) [S2015ZRCEFUSG] - 2015 года выпуска

№

Артикул

Название
1

1702-363 CHAIN CASE ASSEMBLY (INC. 2-8)

CHAIN CASE ASSEMBLY (INC. 2-8)

40 140 ₽
2

2602-172 ...SEAL,OIL-HIGH COMP-50 X 65 X 8MM

...SEAL,OIL-HIGH COMP-50 X 65 X 8MM

4 360 ₽
3

2602-281 ...BEARING,45 X 75 X 16 - 6009

...BEARING,45 X 75 X 16 - 6009

2 070 ₽
4

2602-280 ...RING,SNAP(EH-75)

...RING,SNAP(EH-75)

540 ₽
5

2602-641 ...FITTING, ELBOW

...FITTING, ELBOW

1 240 ₽
6

2602-204 ...RING,SNAP(EH-75)

...RING,SNAP(EH-75)

2 490 ₽
7

2602-734 ...BEARING,30 X 62 X 20

...BEARING,30 X 62 X 20

3 110 ₽
8

2602-236 ...SNAP RING(EH-62)

...SNAP RING(EH-62)

480 ₽
9

0648-443 WASHER, SHIM (.060 IN.)

WASHER, SHIM (.060 IN.)

210 ₽
10

1423-175 RING,RETAINING-EXTERNAL (30MM SHAFT)

RING,RETAINING-EXTERNAL (30MM SHAFT)

290 ₽
11

1623-690 SNAP RING,EXTL-.925 ID

SNAP RING,EXTL-.925 ID

170 ₽
12

2602-339 WASHER,THRUST-1.00 X 1.562 X .062

WASHER,THRUST-1.00 X 1.562 X .062

650 ₽
13

1702-201 SPROCKET - 21T (13 WIDE)

SPROCKET - 21T (13 WIDE)

4 570 ₽
14

2602-270 GEAR, SHIFT - REVERSE

GEAR, SHIFT - REVERSE

13 310 ₽
15

2602-363 SPROCKET - 49T (13 WIDE)

SPROCKET - 49T (13 WIDE)

19 960 ₽
16

2602-370 CHAIN - 90P (13 WIDE)

CHAIN - 90P (13 WIDE)

29 950 ₽
17

2602-276 SPROCKET - 40T (11 WIDE)

SPROCKET - 40T (11 WIDE)

6 440 ₽
18

2602-629 SNAP RING-(MSH-43)

SNAP RING-(MSH-43)

400 ₽
19

1702-319 ARM, TENSIONER - ASSEMBLY

ARM, TENSIONER - ASSEMBLY

6 650 ₽
20

2602-336 SPRING,TORSION

SPRING,TORSION

210 ₽
21

2602-230 BLOCK,RATCHET-CHAIN ADJ

BLOCK,RATCHET-CHAIN ADJ

1 870 ₽
22

1702-265 RACK,SHIFT FORK-W/MAGNET

RACK,SHIFT FORK-W/MAGNET

4 990 ₽
23

2602-418 SHAFT,REVERSE-8MM

SHAFT,REVERSE-8MM

2 700 ₽
24

2602-417 SPRING,COMPRESSION

SPRING,COMPRESSION

520 ₽
25

2602-579 SLEEVE,REVERSE

SLEEVE,REVERSE

540 ₽
26

1702-299 SHIFT FORK - ASSEMBLY (INC. 27)

SHIFT FORK - ASSEMBLY (INC. 27)

16 630 ₽
27

2602-341 ...PAD, WEAR - SHIFT FORK

...PAD, WEAR - SHIFT FORK

3 110 ₽
28

8427-602 NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y

NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y

440 ₽
29

8476-630 SCREW,MACH-TSTRH M6X1.0X30 Z & Y

SCREW,MACH-TSTRH M6X1.0X30 Z & Y

170 ₽
30

8468-622 SCREW,MACH-TSPNH M6X1.0X20 CL8.8 W/204

SCREW,MACH-TSPNH M6X1.0X20 CL8.8 W/204

170 ₽
31

8468-626 SCREW,MACH-TSPNH M6X1.0X25 CL8.8 W/2353

SCREW,MACH-TSPNH M6X1.0X25 CL8.8 W/2353

170 ₽
32

2602-817 SEAL,CHAINCASE COVER

SEAL,CHAINCASE COVER

2 490 ₽
33

1702-267 COVER, CHAIN CASE (INC. 34-38)

COVER, CHAIN CASE (INC. 34-38)

50 950 ₽
34

2602-232 ...GLASS, SIGHT

...GLASS, SIGHT

2 070 ₽
35

0730-172 ...KIT, SPEEDOMETER SENSOR

...KIT, SPEEDOMETER SENSOR

11 850 ₽
36

0730-197 ...SWITCH, GEAR POSITION - KIT

...SWITCH, GEAR POSITION - KIT

13 310 ₽
37

1623-703 ...CLIP, SPEED-WIRE RETAINER

...CLIP, SPEED-WIRE RETAINER

360 ₽
38

2602-387 ...SNUBBER,CHAIN-REVERSE

...SNUBBER,CHAIN-REVERSE

460 ₽
39

0630-285 ACTUATOR, REVERSE

ACTUATOR, REVERSE

29 320 ₽
40

8468-535 SCREW,MACH-TSPNH M5X0.8X35 CL8.8 BLK

SCREW,MACH-TSPNH M5X0.8X35 CL8.8 BLK

150 ₽
41

1623-984 CLAMP,WIRE - 76.14MM LG W/6.25 HOLE

CLAMP,WIRE - 76.14MM LG W/6.25 HOLE

940 ₽
42

0630-331 EXTENSION, ACTUATOR

EXTENSION, ACTUATOR

8 940 ₽
43

0830-185 O-RING, (-019)

O-RING, (-019)

110 ₽
44

0630-332 BLOCK,DETENT-SHIFT ACTUATOR

BLOCK,DETENT-SHIFT ACTUATOR

670 ₽
45

2602-338 WASHER,THRUST-12MM X 26MM X 1MM

WASHER,THRUST-12MM X 26MM X 1MM

420 ₽
46

2602-275 GEAR, REVERSE IDLER - 30T (11 WIDE)

GEAR, REVERSE IDLER - 30T (11 WIDE)

14 140 ₽
47

2602-415 INSERT, IDLER

INSERT, IDLER

270 ₽
48

2602-342 CHAIN - 68P (11 WIDE)

CHAIN - 68P (11 WIDE)

18 920 ₽
49

1702-173 IDLER, REVERSE - ASSEMBLY (INC. 50)

IDLER, REVERSE - ASSEMBLY (INC. 50)

8 310 ₽
50

2602-337 ...BEARING-12MM X 14MM X 10MM

...BEARING-12MM X 14MM X 10MM

250 ₽
51

2602-277 SHAFT,REVERSE-12MM

SHAFT,REVERSE-12MM

2 490 ₽
