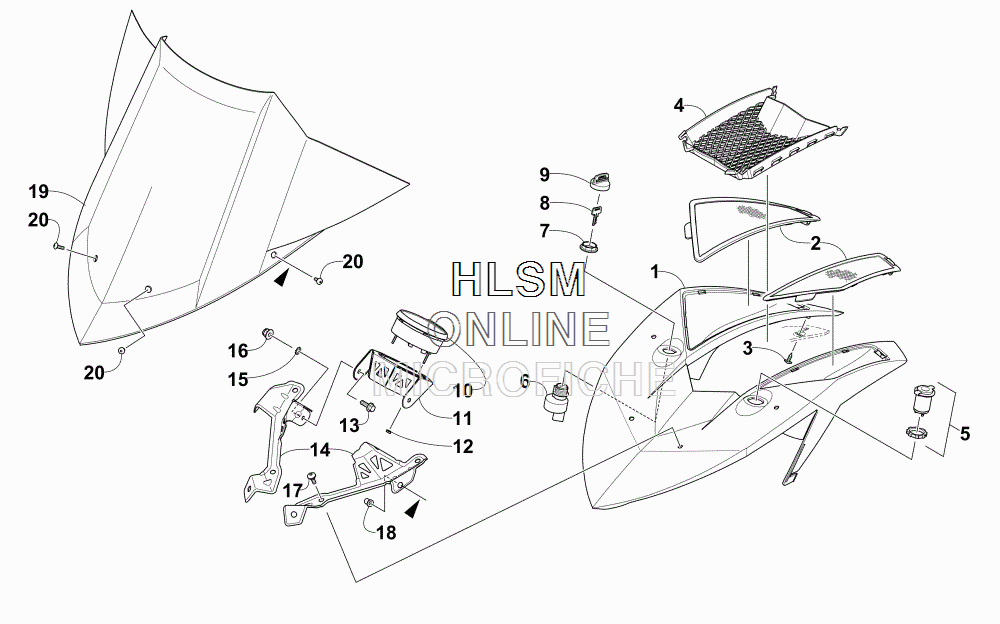

WINDSHIELD AND INSTRUMENTS ASSEMBLIES для Arctic Cat ZR 4000 LXR (GREEN) [S2015ZRCEFUSG] - 2015 года выпуска
-
№АртикулНазвание
-
16606-518 POD, INSTRUMENT - (TEAM ARCTIC GREEN)POD, INSTRUMENT - (TEAM ARCTIC GREEN)
-
20608-736 VENT, INTAKE - RIGHTVENT, INTAKE - RIGHT
-
20608-737 VENT, INTAKE - LEFTVENT, INTAKE - LEFT
-
31623-129 SCREW,SELF TAP-TXSTRH #10-12X5/8 TP A BLSCREW,SELF TAP-TXSTRH #10-12X5/8 TP A BL
-
46606-556 VENT,PODVENT,POD
-
50641-897 OUTLET, ACCESSORY - 12VOUTLET, ACCESSORY - 12V
-
60609-910 SWITCH, IGNITION (INC. 7-9)SWITCH, IGNITION (INC. 7-9)
-
70430-050 ...NUT,FLANGE-KEYSWITCH...NUT,FLANGE-KEYSWITCH
-
80430-042 ...KEY, IGNITION - (Y SERIES - LEFT-SIDE CUT)...KEY, IGNITION - (Y SERIES - LEFT-SIDE CUT)
-
80430-043 ...KEY, IGNITION - (Z SERIES - RIGHT-SIDE CUT)...KEY, IGNITION - (Z SERIES - RIGHT-SIDE CUT)
-
90430-054 ...COVER, KEY...COVER, KEY
-
100620-395 GAUGE, SPEEDOMETERGAUGE, SPEEDOMETER
-
116606-418 BRACKET, SPEEDOMETER GAUGE - CENTERBRACKET, SPEEDOMETER GAUGE - CENTER
-
120423-493 NUT,HEX-M4-.7 W/STAR WSRNUT,HEX-M4-.7 W/STAR WSR
-
138410-616 SCREW,CAP-HFH M6X1.25X16 CL8.8 RIE (BLACK)SCREW,CAP-HFH M6X1.25X16 CL8.8 RIE (BLACK)
-
146606-130 BRACKET, SPEEDOMETER GAUGE - RIGHTBRACKET, SPEEDOMETER GAUGE - RIGHT
-
146606-131 BRACKET, SPEEDOMETER GAUGE - LEFTBRACKET, SPEEDOMETER GAUGE - LEFT
-
158053-212 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
168427-602 NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & YNUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
-
170423-355 SCREW, SHOULDER-M6-1.0 X 18- (BLACK)SCREW, SHOULDER-M6-1.0 X 18- (BLACK)
-
181623-764 NUT, EXPANSIONNUT, EXPANSION
-
196606-377 WINDSHIELD - MID - (SMOKE)WINDSHIELD - MID - (SMOKE)
-
208477-516 SCREW,MACH-TSTRH M5X0.8X16 Z & (BLACK)SCREW,MACH-TSTRH M5X0.8X16 Z & (BLACK)
